5.1.4
DD35 AND SERAPH HD SIMULCASTING
5.1.4.1

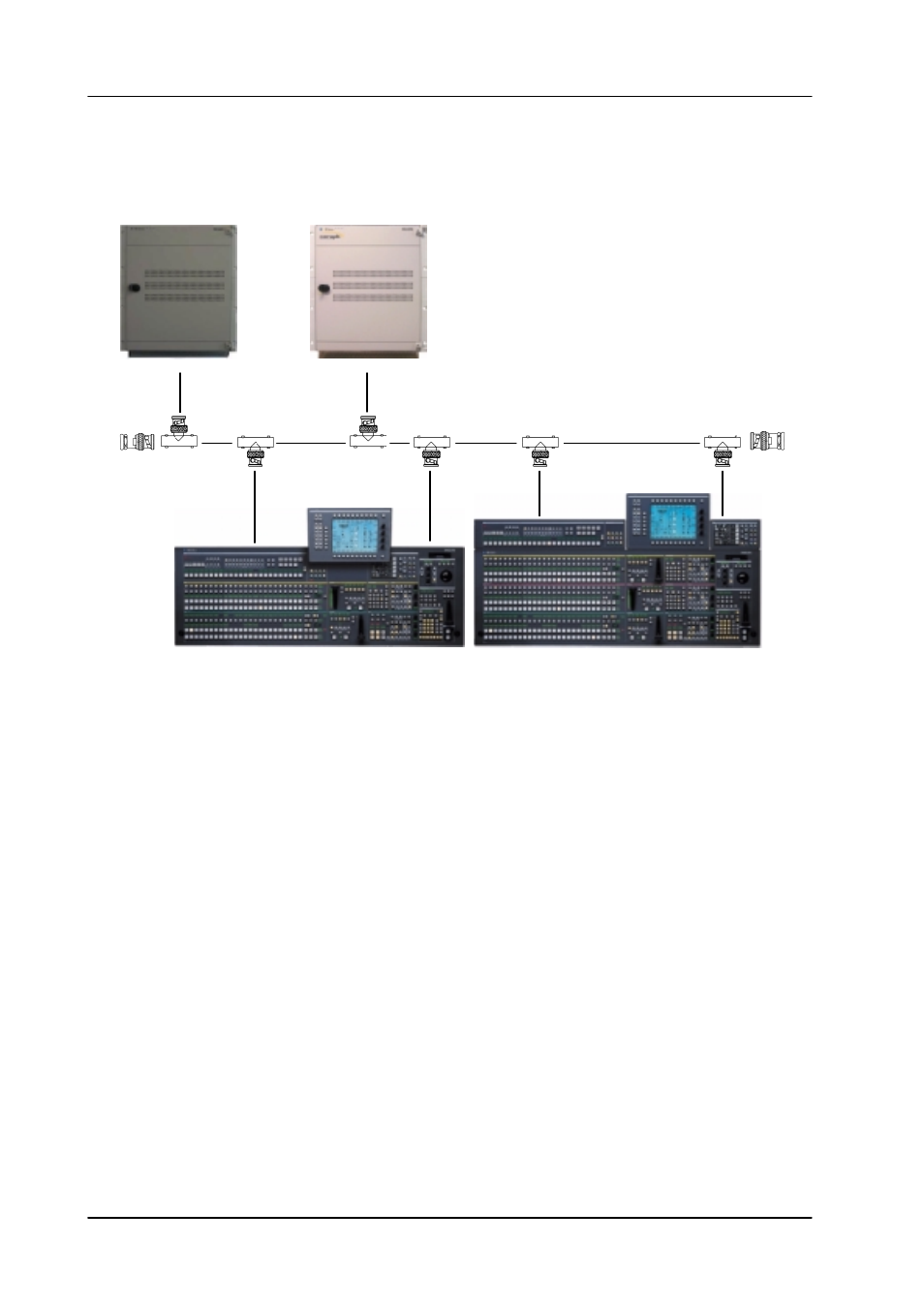

Schematic
50
W
Terminator
BNC T-type
50
W
Terminator
BNC T-type
DD35 SD mainframe
RPS35-2 control panel
Seraph HD mainframe
BNC T-type
RPS35-3 control panel
The following assumes that both mainframes and the control panels are connected
to the LAN.
5.1.4.2
IP Addresses
As stated under ”Network Configuration” all devices on the LAN must have an uni-
que IP address.
To successfully integrate the second mainframe (with its 3 IP addresses) in the net-
work take the steps as follows:
1. Look up the IP addresses of all devices.
2. Check for conflict (i.e. two identical IP addresses).
If the second mainframe has factory default setting then there is an address
conflict.
3. If there is a conflict, change the IP address of the second mainframe to free ad-
dresses.
The mainframe IP address could be changed to 192.168.0.80 (rotary switch
= 0x50). The second mainframe now occupies the addresses 192.168.0.80,
... .81, and ... .82.
4. Reboot the mainframe.
