5.1.1 DD35 WITH GUI-PC
This also applies to users of ”DS 0103 Software License for additional Side-Con-
trol”.

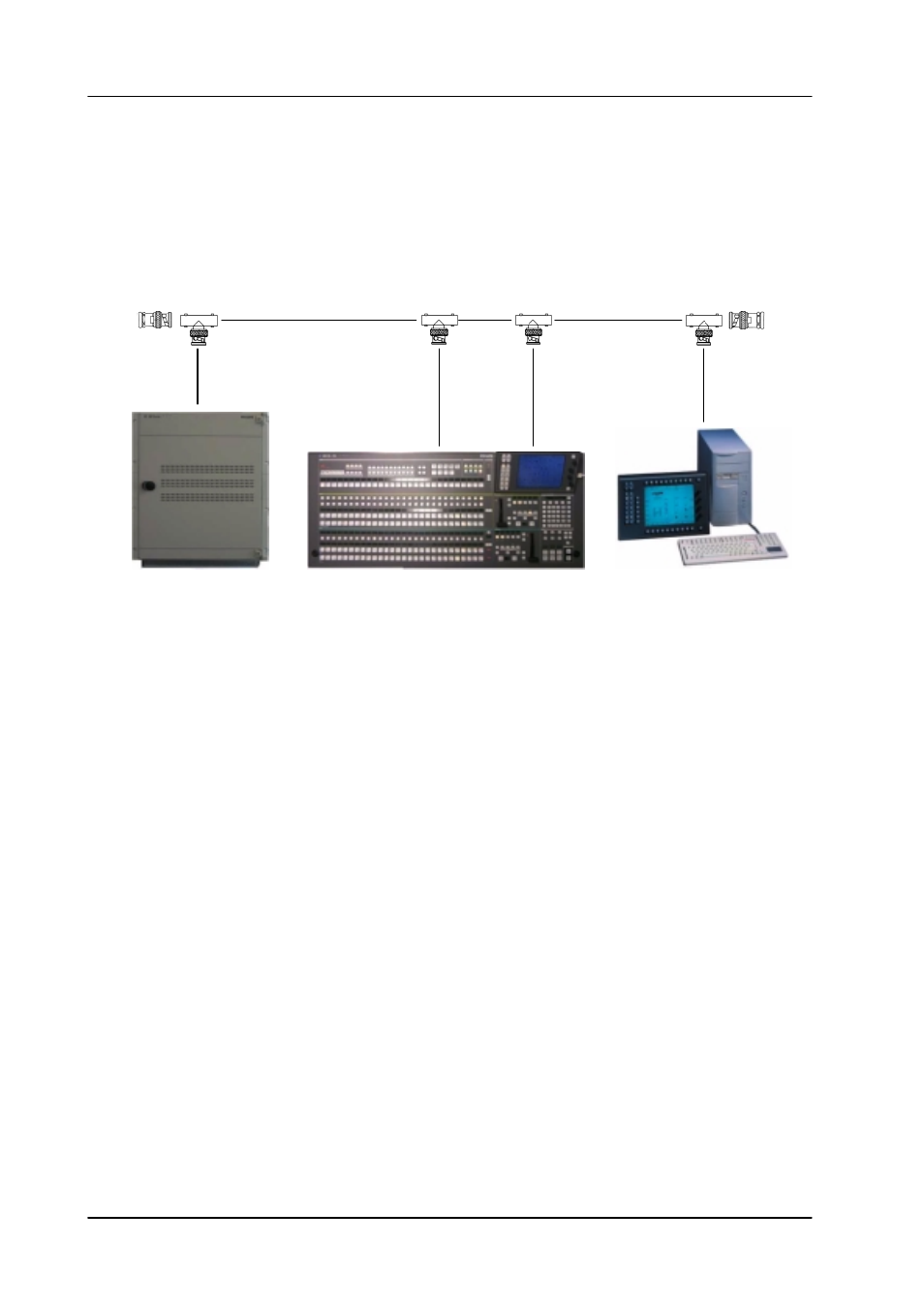

5.1.1.1 Schematic
50 W
Terminator
BNC T-type
50 W
Terminator
BNC T-type BNC T-type
GUI-PC Panel Mainframe
BNC T-type
The following assumes that the GUI-PC is physically connected to the LAN.
5.1.1.2 IP Addresses
As stated under ”Network Configuration” all devices on the LAN must have an uni-
que IP address.
To successfully integrate the GUI-PC in the network take the steps as follows:
1. Look up the IP addresses of all devices.
2. Check for conflict (i.e. two identical IP addresses).
The factory default setting avoids conflict, but better check twice.
3. If there is a conflict, change the IP address of the GUI-PC to a free address and
reboot the GUI-PC.
Now the GUI-PC is installed and is able to connect to the mainframe.
