Stand-Alone Controller

RSE 1

16

Rev. 1 / 02.2002

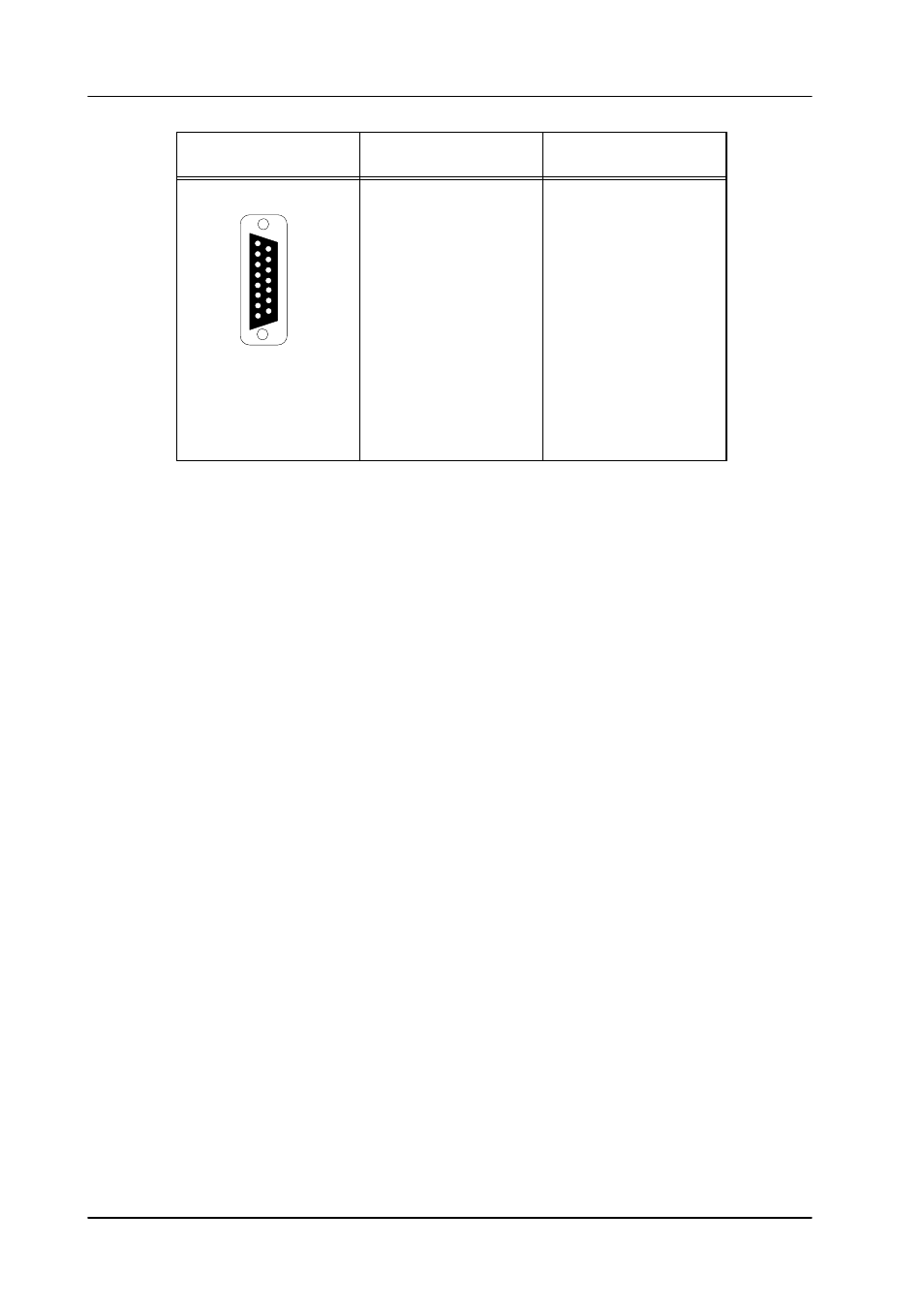

AUI

Panel

Pin

Signal

15-pin D-type

female

1

8

9

15

1
2
3
4
5
6
7
8
9

10

11

12
13
14
15

AUI Ground
AUI CD+
AUI TX+
AUI Ground
AUI RX+
AUI Ground
AUI not used
AUI not used
AUI CD–
AUI TX–
AUI Ground
AUI RX–
AUI +12V
AUI Signal Ground
AUI not used
