36 Maestro — Branding Engine Quick Start Guide
Section 1 — Software Installation
f. From this point there are two possibilities:
• A popup will show that the Processor update was successful.
Repeat Step 1 above if another Processor is present. Otherwise,
go to Step 2 below.
• An error message may indicate that the “physical JTAG chain is
broken.” If this message appears, the FPGAs/CPLDs on the Pro-
cessor cannot be updated. Discontinue the v1.5.1 installation
and contact Technical Support.
2. Updating FPGAs/CPLDs on the hardware control panel(s):
a. In the board Status section of the screen, select the hardware control
panel to update.
b. Right-click on the FPGA field for this control panel.
This will display the FPGA/CPLD update menu. See Figure 12

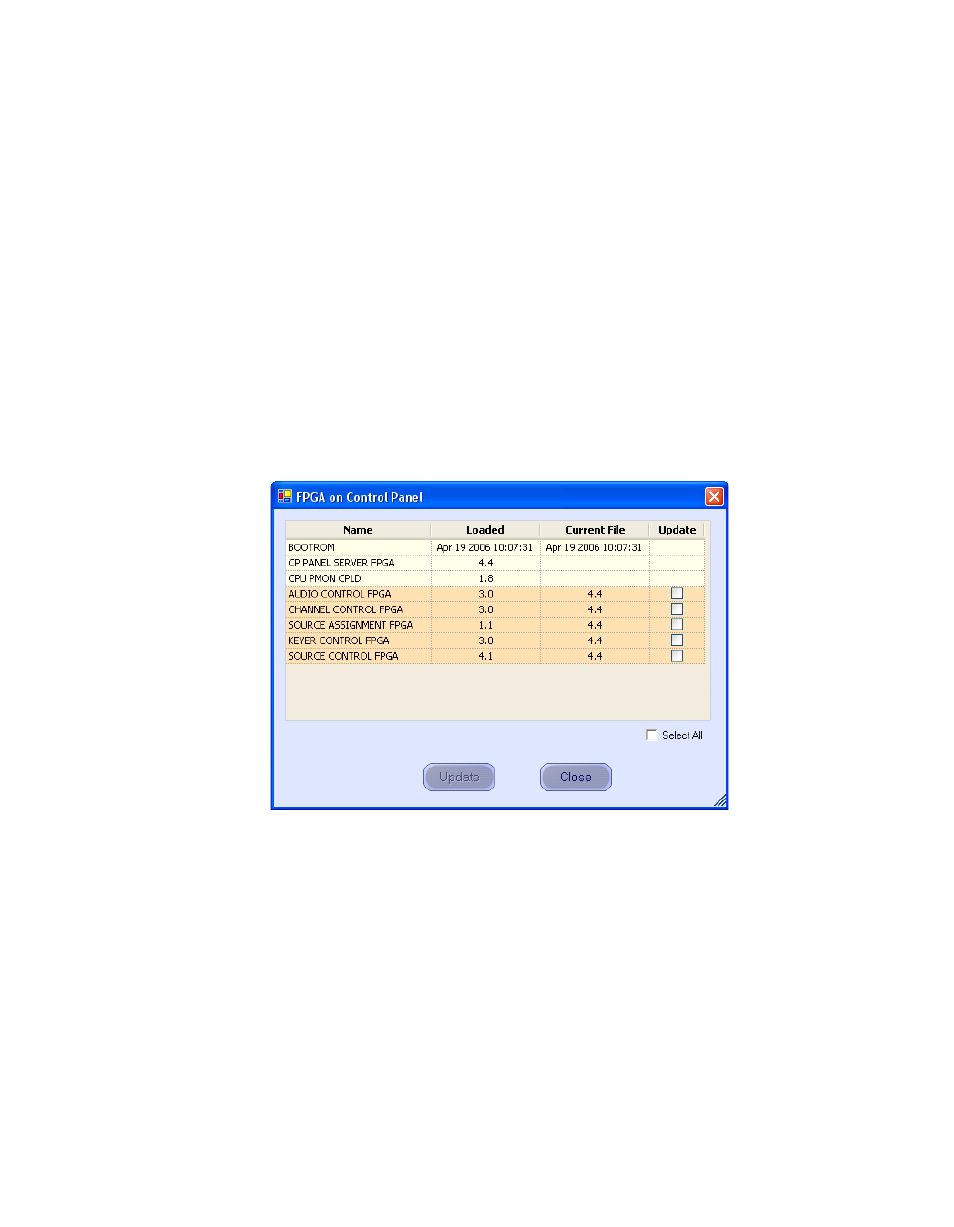

Figure 12. Control Panel FPGA/CPLD Update Menu
This menu shows the names of all FPGAs/CPLDs on the control
panel and the version number of the gateware now running
(“loaded”) in each device. Certain FPGA-type components and all
of the CPLD-type components can be updated using this menu, and
if a newer (“current”) version of gateware is available for those
components the menu will indicate the new version number and
display a check box.
c. Check the “Select All” box.
d. Select Update .
You will be asked to confirm the update.
