Section 1 — Installation
Control Panel Cabling
The connections to the MMCP panel are made at the rear of the panel in the
recessed area shown in
Figure 1-9 .

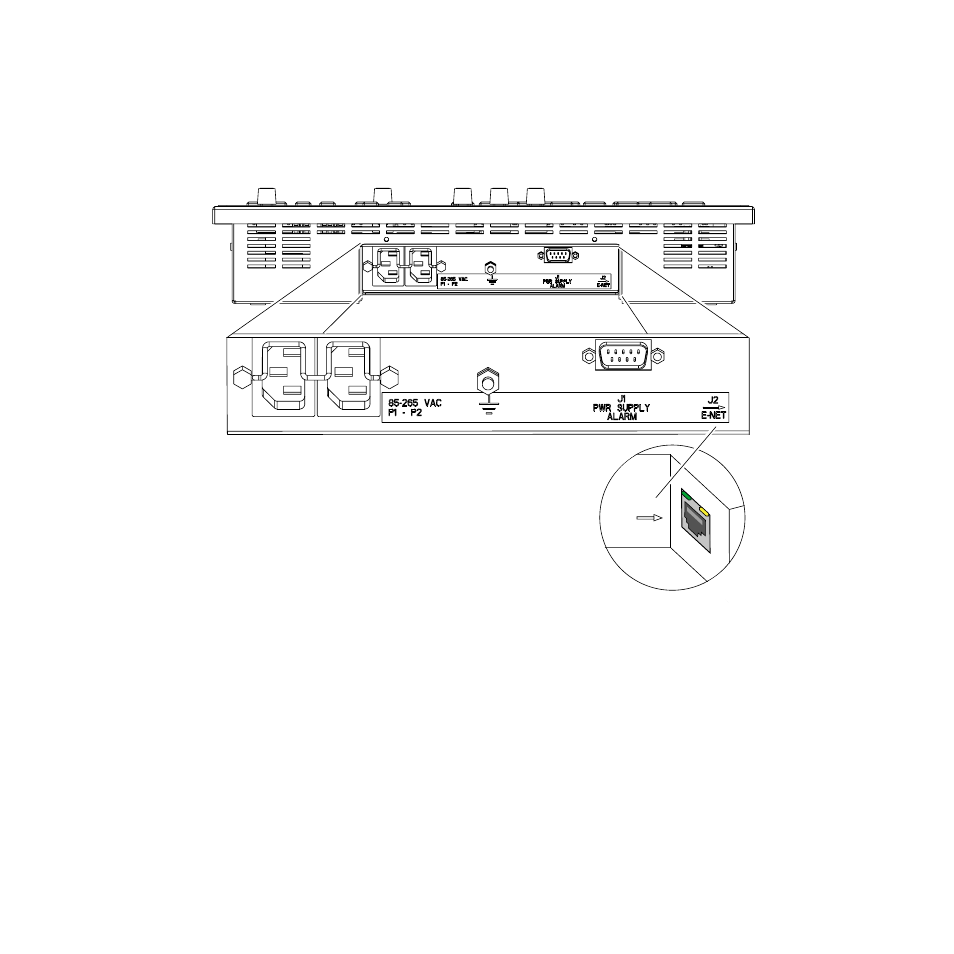

Figure 1-9. Control Panel Connections
Powering On
The MMCP has dual power supplies as standard features. The power sup-
plies are installed inside the panel and are not accessible. There is no on/
off switch for either supply. To power on, connect the AC line cords to the
PS 1 and PS 2 AC connectors.
A chassis ground lug is provided at the rear of the panel.
J2
ENET
