1-4 MMCP Installation/Operation Manual
Section 1 — Installation
Console Mounting
A mounting bracket option kit provides a console mounting bracket to
mount the control panel into a console cutout or rack ears to mount the
panel in a standard 19 in. rack.
To install the panel in a console cutout, perform the following steps:
1. Prepare the console cutout according to the dimensions in Figure 1-5 .

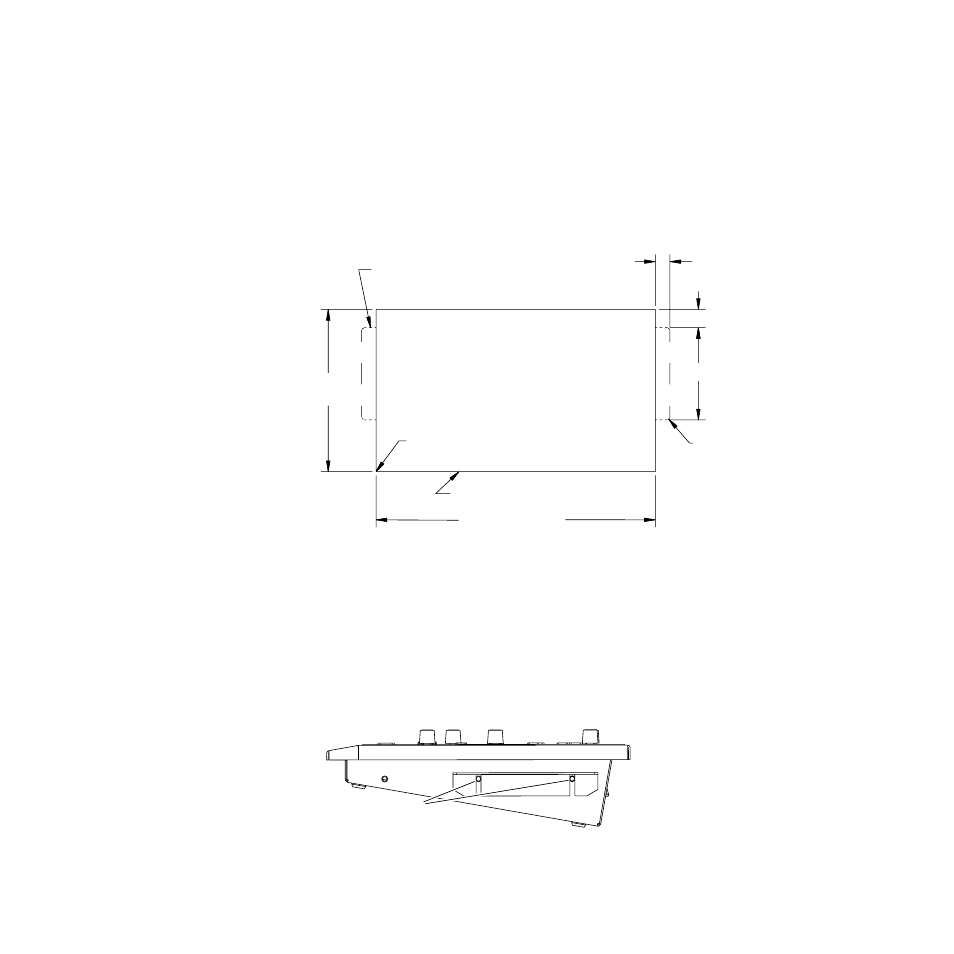

Figure 1-5. MMCP Console Cutout Dimensions
2. Install the optional console mounting brackets to the right and left sides
of the panel using four of the #8 screws provided (
Figure 1-6 ).
Adjust the mounting bracket to position the panel in the console at the
desired height. Maximum console thickness is 0.375 in (10 mm). For a
console wider than this, route the areas from the far side as shown
above.
Figure 1-6. Attaching Console Mounting Brackets
9.37 in.
238 mm
Console preparation as viewed from console top surface
2X If console thickness exceeds 0.375 in. / 10 mm
Route these areas from far side
14.62 in. / 371 mm
This area through
4X R 0.125 in. / 3 mm permitted
2X 0.75 in.
19 mm
2X 0.56 in.
14 mm
2X 5.25 in.
133 mm
4X 0.25 in.
6 mm
8129_06
Right side view
2X
(right and left sides)
8129_07
