Grass Valley K2 Dyno Service Manual User Manual
Page 67
02 February 2012
K2 Dyno Replay Controller Service Manual
67
Top unit cable removal Type I control panel UI board
Top unit cable removal Type I control panel UI
board

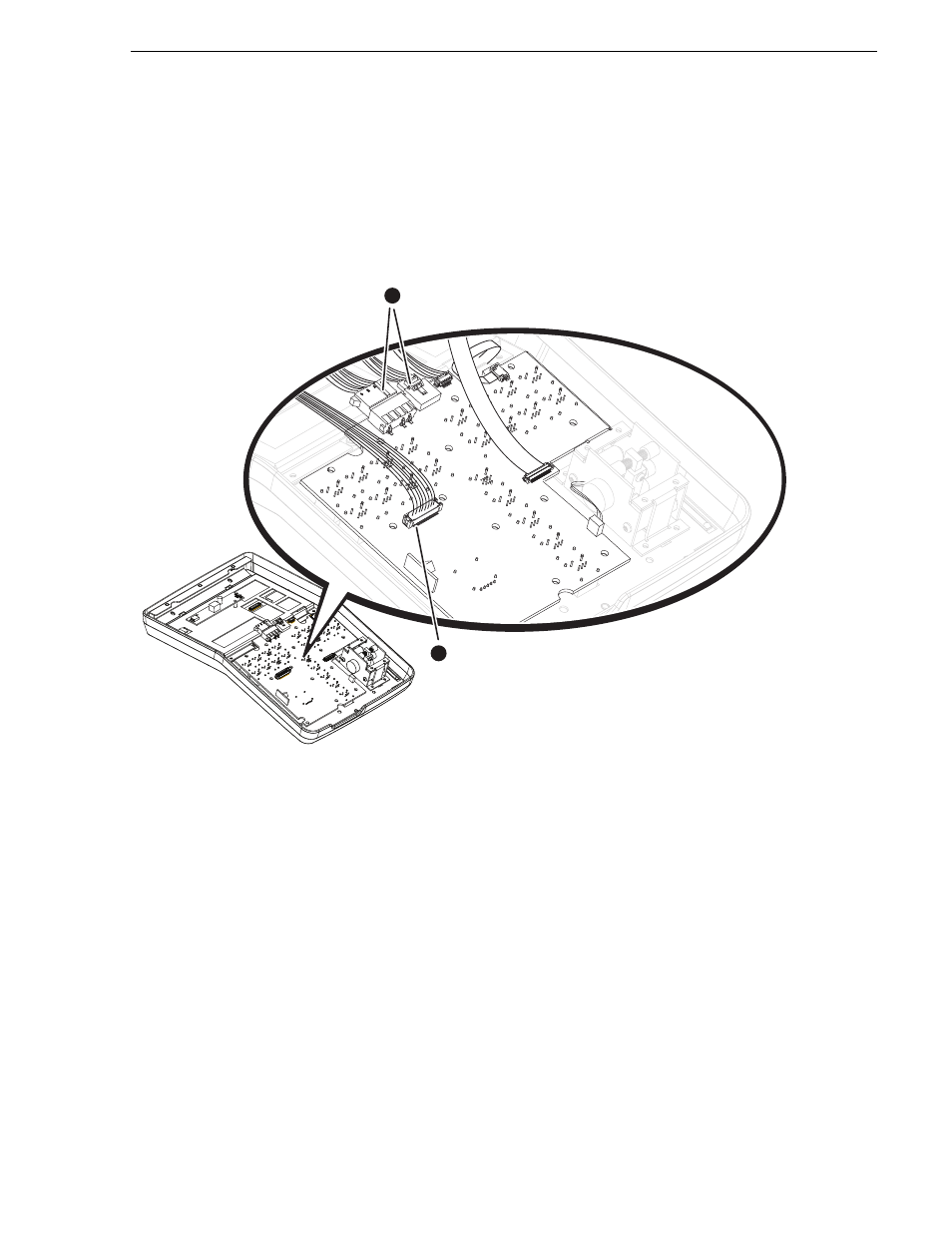

If your top unit has the Type I control panel UI board installed and you are replacing the
top unit as a pre-assembled FRU, disconnect cables as shown.
Disconnect cables
1
Use small flat screwdriver to disconnect and re-connect.
To disconnect, pry up gently at corners. To re-connect,
seat firmly in center and in corners. Make sure the
connector is not bowed up in the middle.
2
