8964ENC/-FS — Instruction Manual 43
Configuration
SDI In Web Page
Use
this
link
The SDI In web page ( Figure 17 ) provides the following status information
on each of the SDI video inputs:
• Input Signal State ( Present or Not Present )
• Input Signal Line Rate
• Detected EDH Errors
Press the Clear Errors button for each channel to reset the error counter and
begin a new error counting sequence or the Clear All Errors button to clear all
channel counters.
Errors are also reset when the module is removed and re-installed.

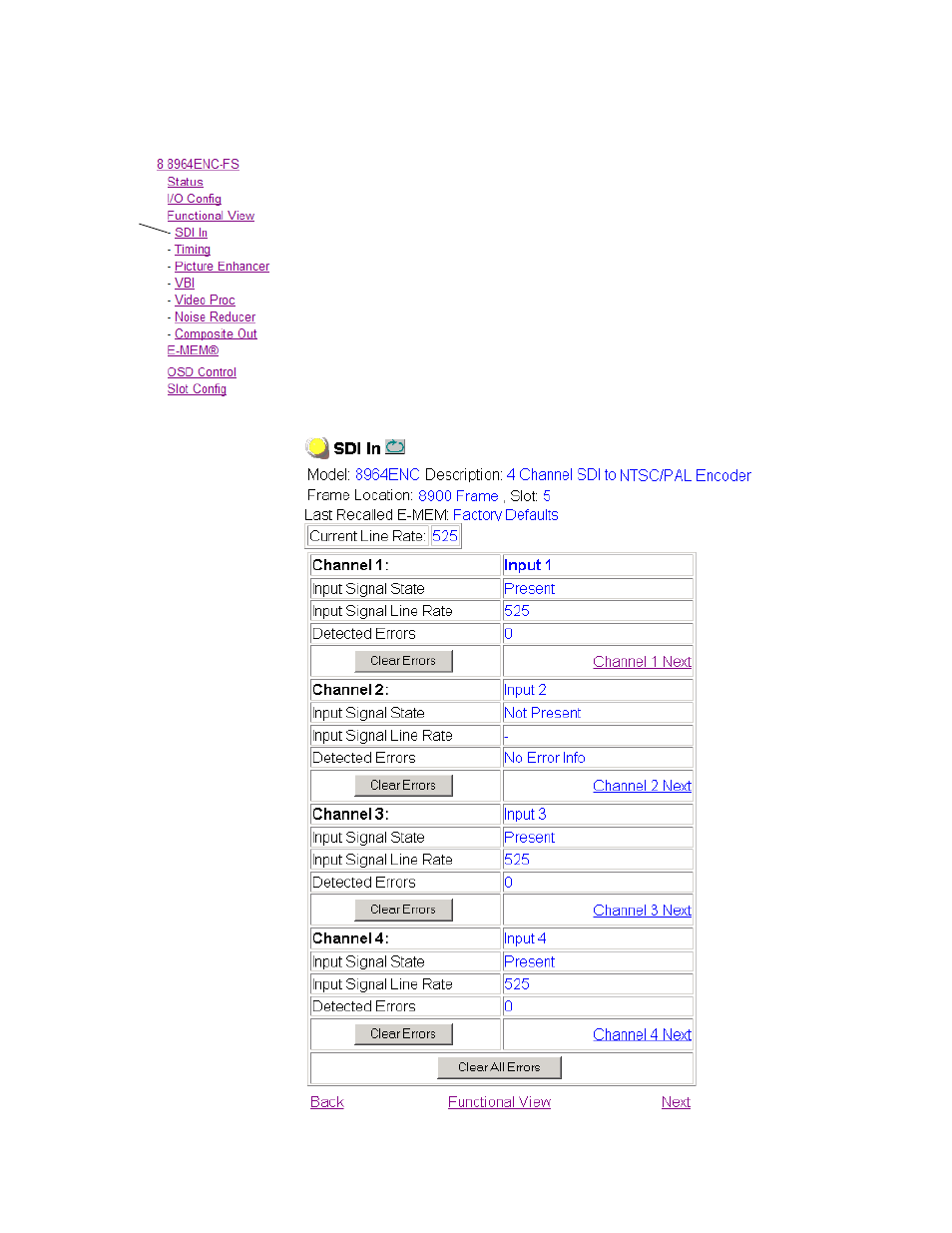

Figure 17. 8964ENC SDI In Web Page
