8964ENC/-FS — Instruction Manual 41
Configuration
Functional View Web Page
Use
this
link
The Functional View web page ( Figure 16 ) illustrates a block diagram of the
8964ENC module showing module functions and signal paths that are
active or inactive in the current configuration. It can be used as a link map
for configuring module functions. Each block has a link to the configura-
tion web page for that function.
Color coding indicates active functions and signal flow. Grayed compo-
nents are inactive due to hardware and/or software constraints. Under-
lined module functions are links to the web page for that function.
Use the Functional View to configure the 8964ENC module in the order of
the signal flow. Refer to each of the module configuration web pages given
in the next section.

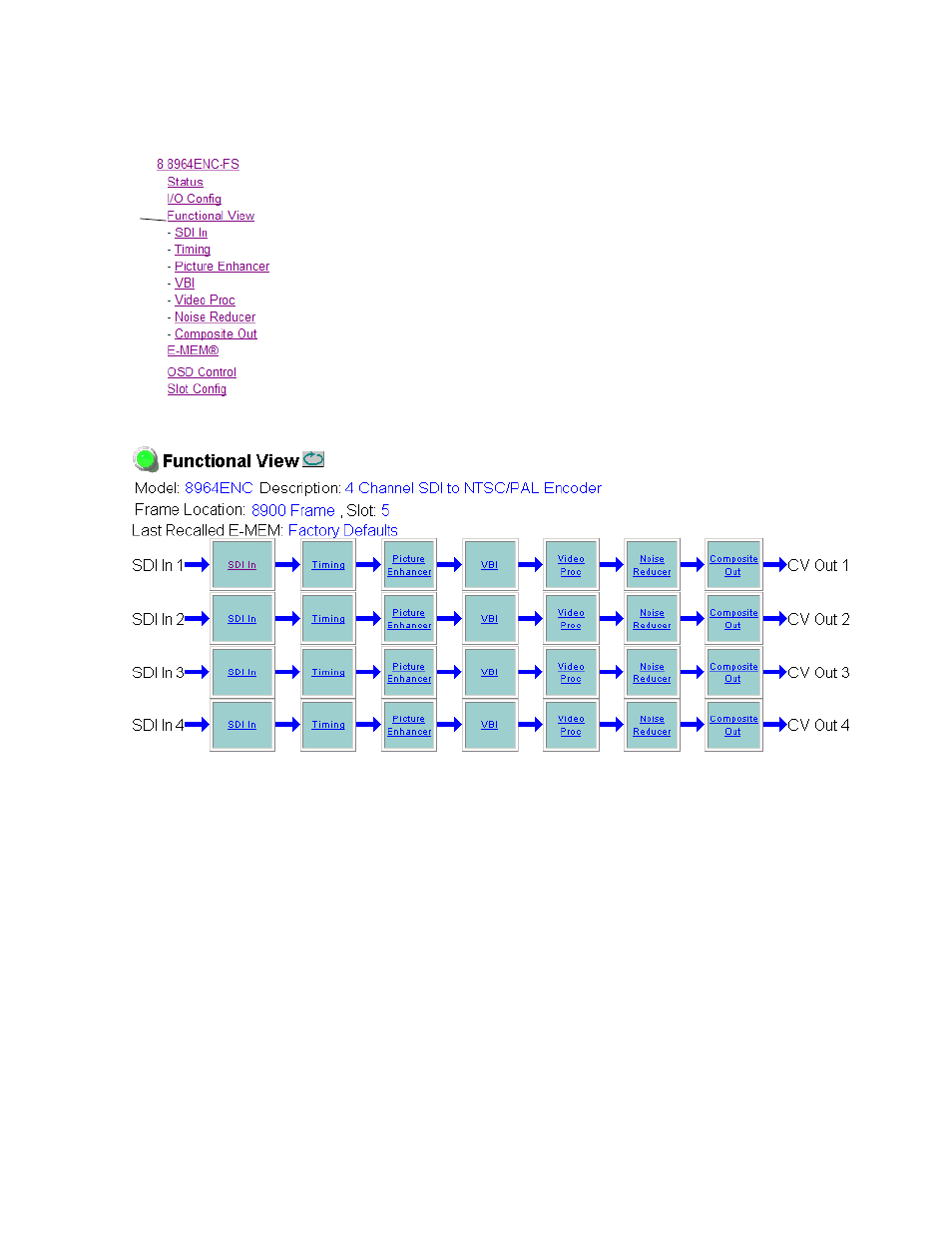

Figure 16. 8964ENC Functional View Web Page
