8964ENC/-FS — Instruction Manual 11
Installation
Module Placement in the Gecko 8900 Frame
There are ten cell locations in the frame to accommodate either analog or
digital modules. These are the left ten locations. Refer to
Figure 1 .
The two cells on the right are allocated for the power supplies. For addi-
tional information concerning the Power Supply module, refer to the 8900
Gecko Frames or the GeckoFlex Frames Manual.
The third cell from the right is allocated for the Frame Monitor or 8900NET
Network Interface module. These modules provide health monitoring and
control options.
Note If using an 8900NET module in the frame, it must be running software
version 4.3.0 or higher for full networking functionality and proper remote
operation of the 8964ENC module.

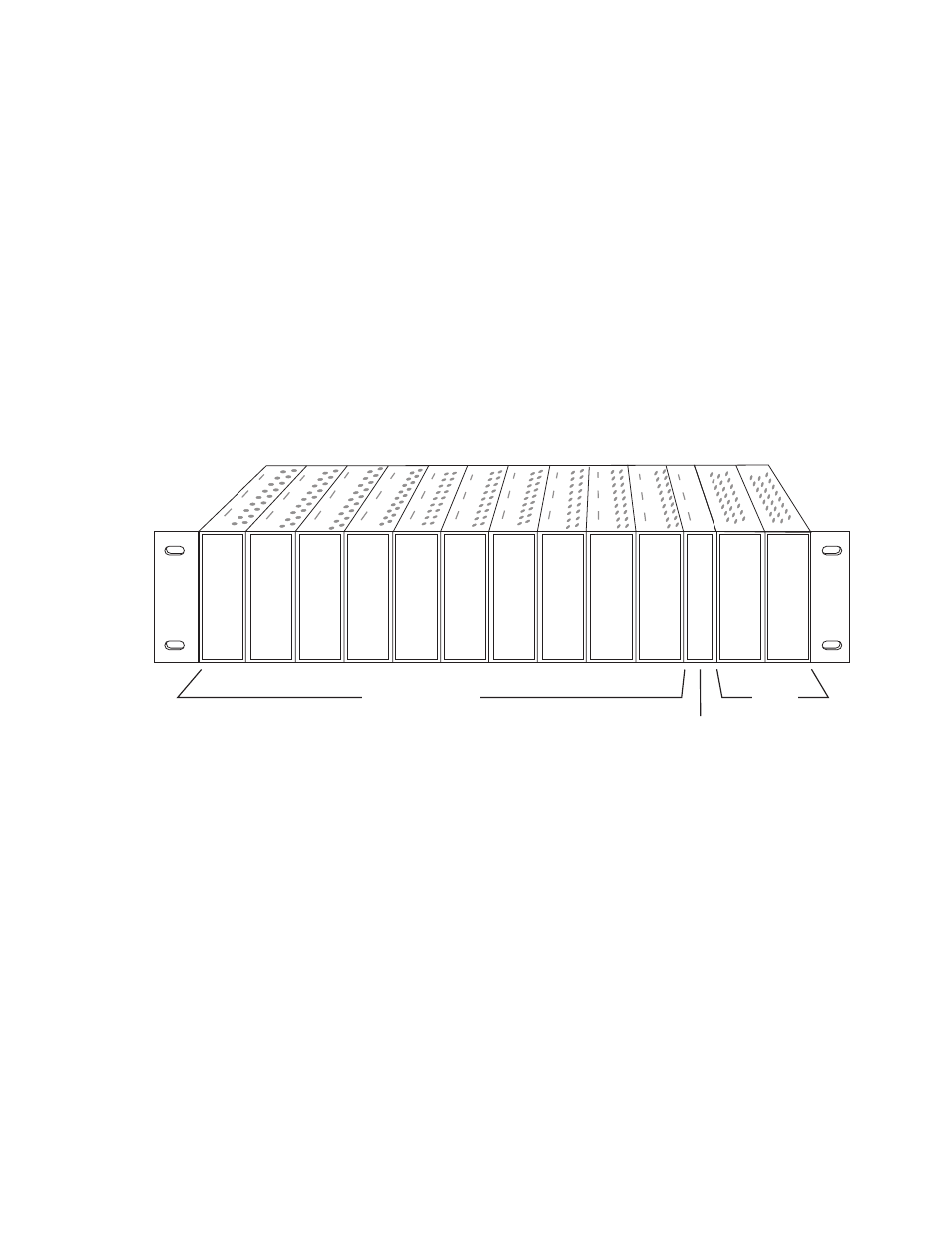

Figure 1. Gecko 8900 Series Frame
Frame Controller or
8900NET Network
Interface Module
Any 8900 Module Power
Supplies
(only)
8208_04
r1
