12 8960ENC—Instruction Manual
Installation
The third slot from the right is allocated for the controller module—either
a Frame Monitor Module or a 8900NET Network Interface Module. For
additional information concerning the controller module options, refer to
the 8900NET Network Interface Module Instruction Manual.

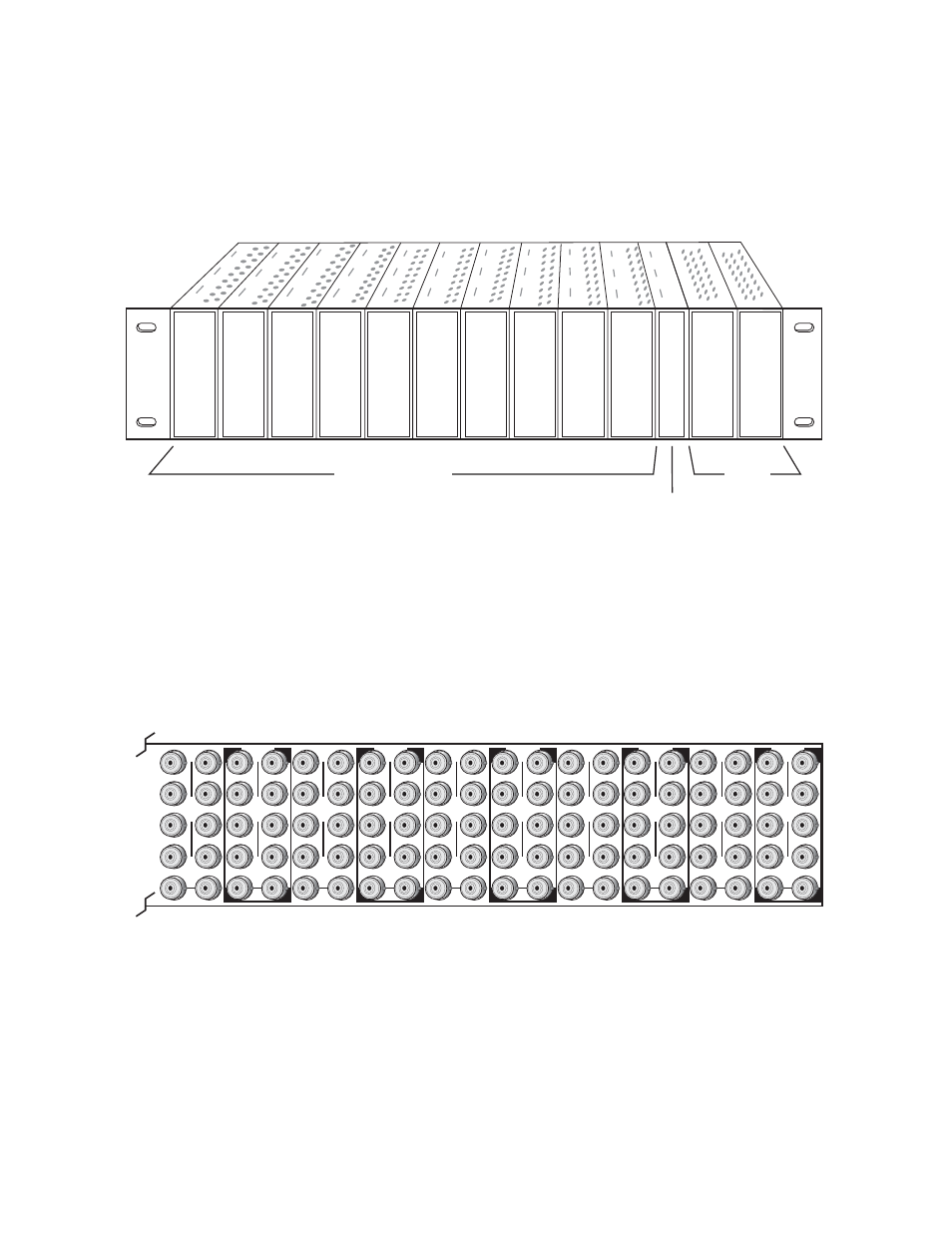

Figure 2. Gecko 8900 Series Frame
8900 module slots are interchangeable within the frame. There are 10 BNC
connectors in each slot’s I/O group. The functional assignment of each con-
nector in a group is determined by the module that is placed in that slot.
The maximum number of modules an 8900 frame can accept is ten.
Figure 3
illustrates the rear connector plate for an 8900 Series frame.
Figure 3. Gecko 8900 Series Frame Rear Connector
To install a module in the frame:
1. Insert the module, connector end first, with the component side of the
module facing to the right and the ejector tab to the top.
2. Verify that the module connector seats properly against the backplane.
3. Press in the ejector tab to seat the module.
Frame Monitor or
8900NET Network
Interface Module
Any 8900 Module Power
Supplies
(only)
0642_04r1
