Airaid 510-307 User Manual
Installation instructions, Component identification
Installation Instructions
For Part Numbers:
510-307
700-474 Airaid Oiled Media Filter
511-307
701-474 SynthaMax Dry Media Filter - Red
512-307
702-474 SynthaMax Dry Media Filter - Black
513-307
703-474 SynthaMax Dry Media Filter - Blue
2013-2014 Scion FR-S and Subaru BRZ
2.0L Boxer 4
2. A. Loosen the resonator tube clamp and disconnect it
from the intake. B. Compress the spring clamp on the
crank case breather line and disconnect it. Remove the
intake tube from the vehicle.
3. Disconnect the Mass Air Flow sensor, or MAF, in the
airbox. Remove the three 6mm bolts securing the airbox
assembly and remove it from the vehicle.
4. Transfer the Mass Air Flow sensor into the Filter
Adapter (#4) and secure using the two 8-32 Socket
Head Screws (#17) and Spacers (#18).
5. Install the Filter Adapter into the Cold Air Box (#2)
as shown using the 1/4-20 Button Head Screws (#11)
and 1/4” Flat Washers (#12).
6. Install the CAB Mount (#16) into the airbox bracket
on the inner fender. Hand tight is sufficient.
8. Slide the CAB Mount stud through the hole in the
Airbox bottom and secure it using the M6 Flange Nut
(#15) and a 1/4” Flat washer. Reuse one 6mm airbox
bolt from step 3 to join the Airbox Bracket to the core
support.
7. Mount the Airbox Bracket (#10) as shown, using one
1/4-20 Button Head Screw and a 1/4” Flat Washer.
Transfer one factory airbox mounting grommet and steel
sleeve from step 3 into the Airbox Bracket.
9. Using a pair of diagonal cutters, or similar, split the
Harness Grommet (#9).
A.
B.

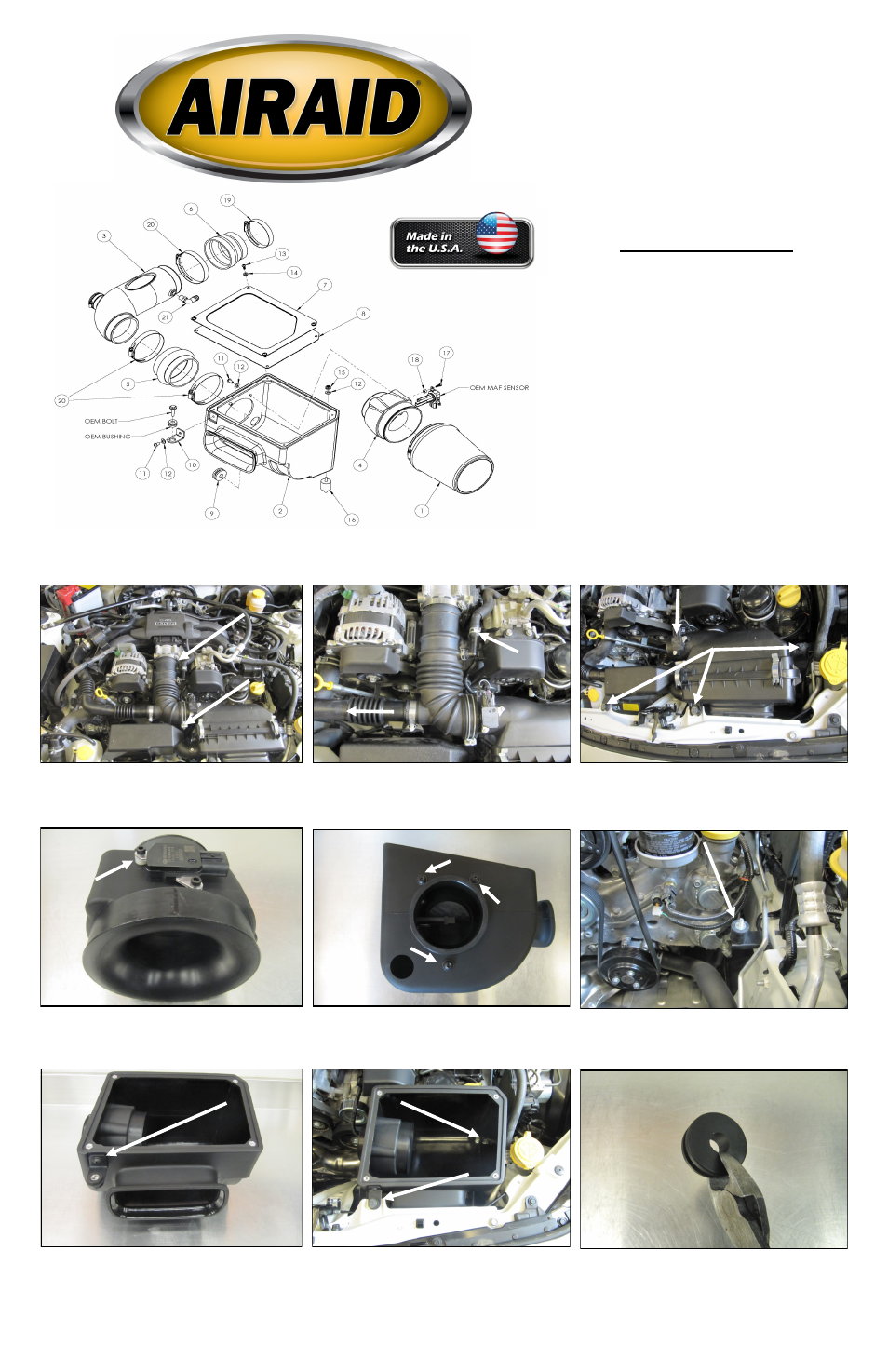

Component Identification
1
. Airaid Premium Filter
1
2. Cold Air Box
1
3. Intake Tube
1
4. Filter Adapter
1
5. Hump Hose
1
6. Reducer
1
7. Air Box Lid
1
8. Lid Gasket
1
9.
MAF Harness Grommet
1
10.
Air Box Bracket
1
11.
¼-20 x 1/2” Button Head Cap Screw 4
12.
1/4” Flat Washer
5
13.
10-24 Button Head Cap Screw
4
14.
#10 Washer
4
15.
M6 Flange Nut
1
16.
M6 CAB Mount
1
17.
8-32 Socket Head Cap Screw
2
18.
Spacer
2
19.
#44 Hose Clamp
1
20.
#52 Hose Clamp
3
21.
1/4" NPT x 1/2" Barb Elbow
1
22.
Firewall Grommet (Not Pictured)
1
Disconnect The Negative Battery Terminal!
1. Loosen the clamps on the throttle body and the airbox
outlet.
Spacer
MAF
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.
