Page 2

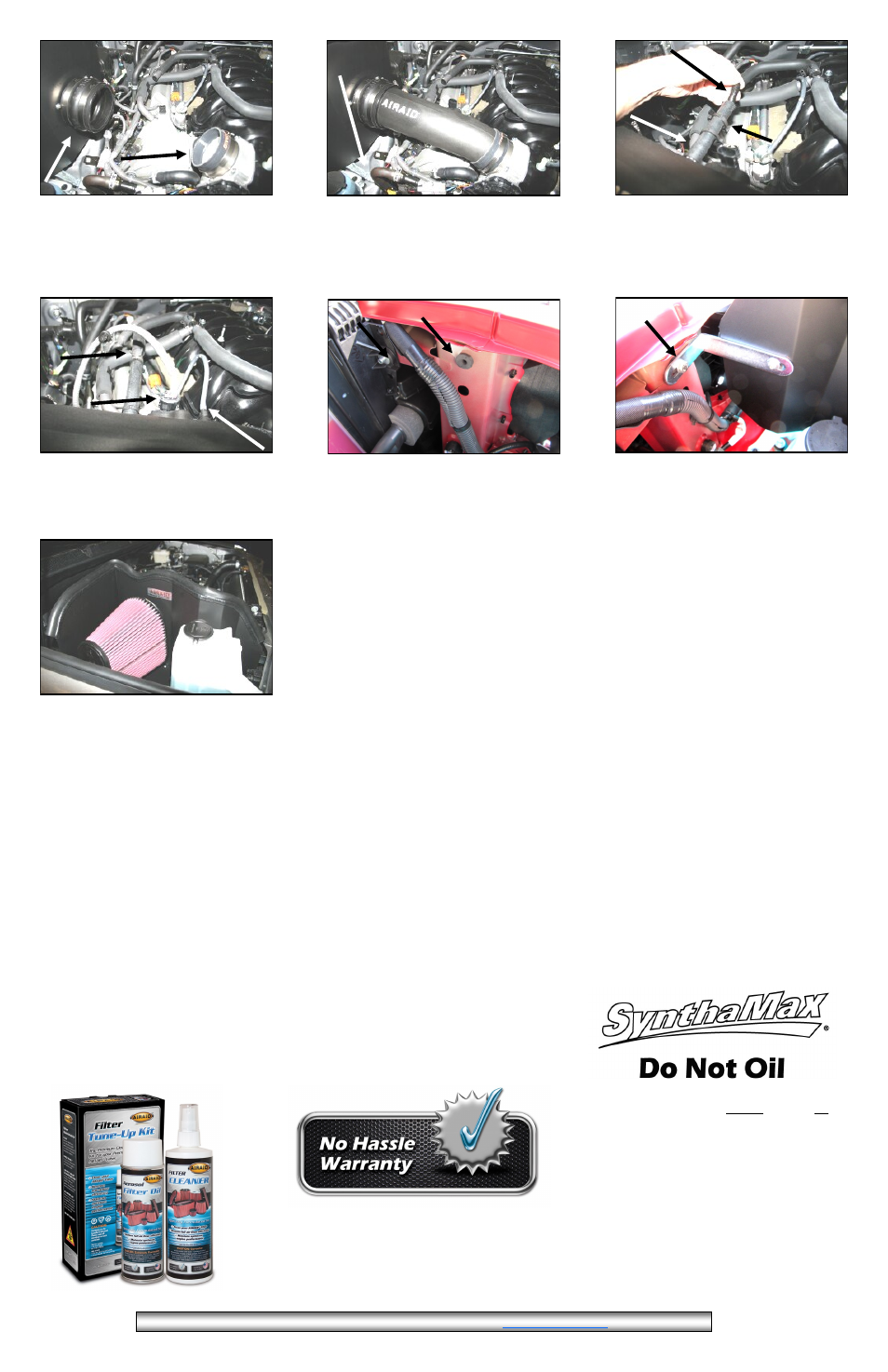

11. Install the Airaid intake tube into the hump
hose first, and then into the reducing coupler.
Center the tube between the throttlebody, and the
CAD, adjust for fit, and then tighten the four hose
clamps. Install one 6mmx12mm bolt (#16) and
washer (#14) thru the bracket into the captured
nut in the fender well.
13. Reconnect the MAF wiring harness to the
MAF sensor. Reconnect the factory breather hose
to the 1/2” barbed coupler using the factory
clamp. Reconnect the small vacuum hose to the
3/16” barbed fitting on the Airaid tube.
12. Install the 1/2” breather hose (#23) onto the
nipple on the Airaid tube. Slide the 1/2” barbed
coupler (#21) into the installed breather hose, and
secure both ends with the supplied speed clamps
(#22).
14. Place Well Nut into 3/8” hole in core support.
16. Install the Airaid Premium Filter (#1) onto the
filter adapter and tighten the clamp. Next install
the weather strip (#8) on top of the CAD as
shown. For an easier install, start at the fender
side of the CAD and work your way towards the
radiator. Reinstall the factory beauty cover.
17. Double check your work!
Make sure there is no foreign material in the
intake path. Make sure all clamps, hoses,
bolts, and screws are tight. Periodically check
the tightness of all hose clamps. Double check
the hood clearance.
18. Reconnect the negative bat-
tery cable!
Airaid Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 (800) 498-6951
REV.02.10.15
P/N 790-551 Aerosol Spray
P/N 790-550 Squeeze
Thank you for purchasing the Airaid Intake System. Contact Airaid @ (800) 498-6951 8:00 AM - 5:00 PM MST weekdays for questions
regarding fit or instructions that are not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are
missing, or were damaged during shipping. If any parts are missing, contact Airaid. The air filter element is protected from direct exposure to wa-
ter and debris, care should be taken not to drive through deep water. WATER INGESTION IS THE DRIVERS RESPONSIBILTY! The air filter is
10. Install the hump hose (#6) with two #72 hose
clamps (#19). Install the reducing coupler (#7)
with the small end on the throttlebody. Install the
#52 hose clamp (#17) over the throttlebody end,
and the #56 hose clamp (#18) over the large end
of the coupler. Leave the clamps loose for now.
Install bolt thru the
#110 bracket here.
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your
part number, and click View Details.
FILTER IDENTIFICATION
720-476 Airaid Oiled Media 721-476 Airaid SynthaMax Dry Media - Red
722-476 Airaid SynthaMax Dry Media - Black 723-476 Airaid SynthaMax Dry Media - Blue
For your Oiled media filter we
suggest using the AIRAID Fil-
ter Tune-Up Kit!
Synthamax Air Filters do not require oil.
Service air filter as needed by cleaning
with common non-petroleum all-purpose
household cleaner and water. Simple
Green®, Formula 409® or equivalent
works great. Apply cleaner to outside of
air filter and allow to soak. Then flush
filter clean from the inside out with a gar-
den hose and repeat steps if necessary.
Do not apply high pressure water or air
to clean filter. Allow filter to air dry and
reinstall
.
15. Use supplied 10-32 hex head bolt and Fender
Washer to secure Panel Bracket. Do not over
tighten.
