Airaid 450-330 User Manual
Installation instructions
Installation Instructions
For Part Number:
450-330
2015 Ford Mustang 2.3l EcoBoost 4 Cyl.

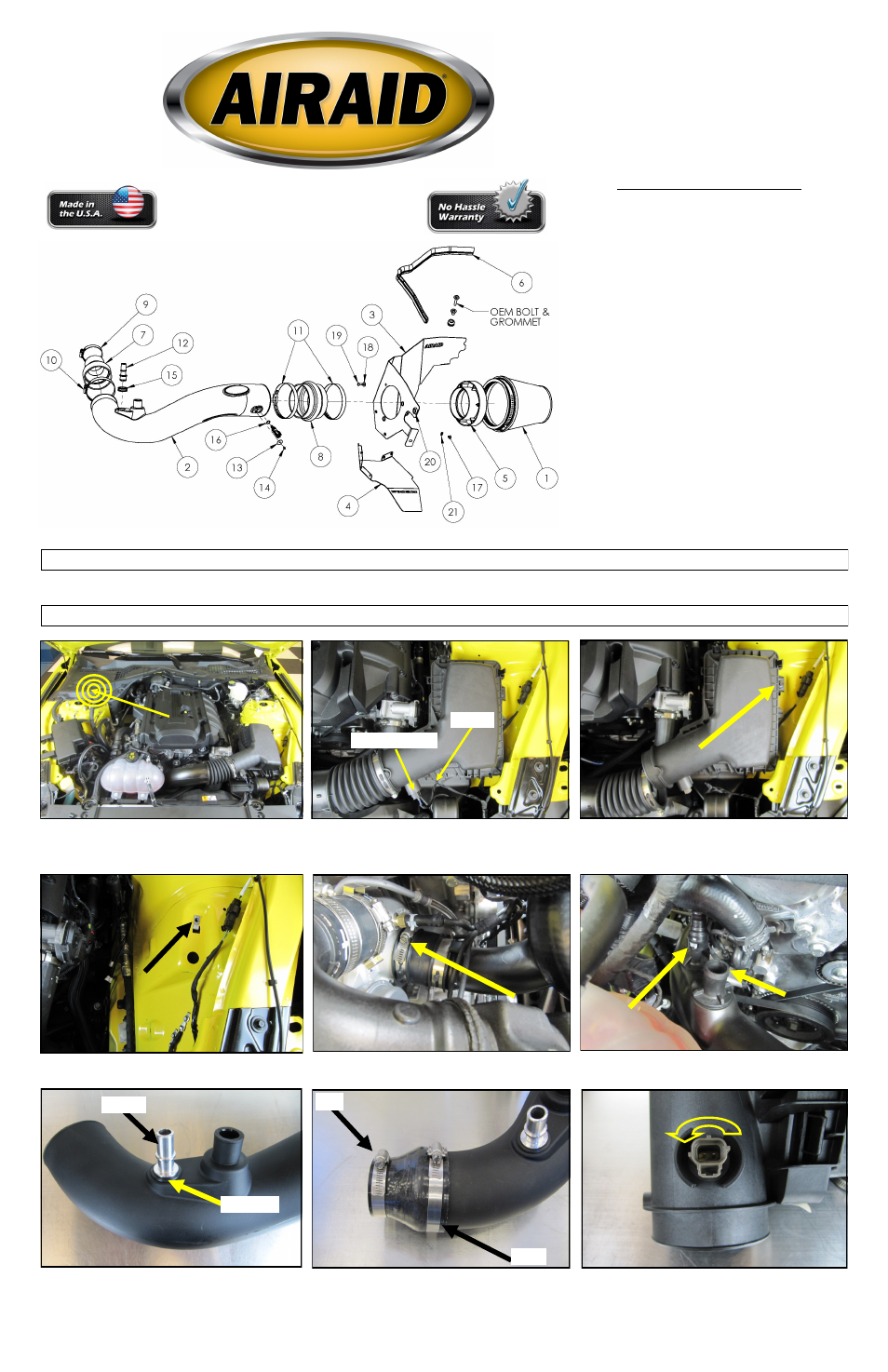

Component Identification
1
Airaid Track Day Filter
1
2
Airaid Intake Tube
1
3
Top Panel
1
4
Bottom Panel
1
5
Filter Adapter
1
6
Weatherstrip 23"
1
7
Coupler
1
8
Hump Hose
1
9
#40 Hose Clamp
1
10
#56 Hose Clamp
1
11
#68 Hose Clamp
2
12
5/8 Aluminum Fitting
1
13
#8 Flat Washer
1
14
1/4" Button Head Screw
1
15
13/16" Grommet
1
16
O-Ring
1
17
¼"-20 Button Head Screw
4
18
1/4" Flat Washer
3
19
1/4-20 Button Head Cap Screw
3
20
1/4” Lock Washer
4
1. Remove the battery box cover in the cowl and discon-
nect the negative battery terminal.
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.
2. Loosen the clamp on the intake tube and slide it off
of the airbox. Gently pry the harness anchor out of the
airbox and disconnect the air temp sensor.
Air temp sensor
Anchor
3. Remove the 6mm airbox mounting bolt in the inner
fender and lift the entire airbox assembly out of the vehi-
cle. Set the bolt aside for now. It is to be reused.
4. Be sure to retain speed clip in the inner fender .
5. Loosen the clamp on the turbo inlet coupler.
6. Disconnect the PCV and turbo bypass lines from the
intake tube and remove the tube from the vehicle.
8. Tilt the air temp sensor rearward so the locking tab
clears the ramp and rotate it counterclockwise 1/4 turn to
release it.
7. Insert the Grommet and Aluminum Fitting into the
Airaid Intake tube as shown.
9. Slide the Reducer and Clamps onto the turbo side of
the Intake Tube as shown. Leave the clamps loose for
now.
Fitting
Grommet
#40
#56
Maximum performance potential requires custom tune.
