Airaid Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 (800) 498-6951
P/N 790-551 Aerosol Spray
P/N 790-550 Squeeze Spray
Thank you for purchasing the Airaid Intake System. Contact Airaid @ (800) 498-6951 8:00 AM - 5:00 PM MST weekdays for questions
regarding fit or instructions that are not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are
missing, or were damaged during shipping. If any parts are missing, contact Airaid. The air filter element is protected from direct exposure to wa-
ter and debris; care should be taken not to drive through deep water. WATER INGESTION IS THE DRIVERS RESPONSIBILTY! The air filter is
reusable and should be cleaned periodically.

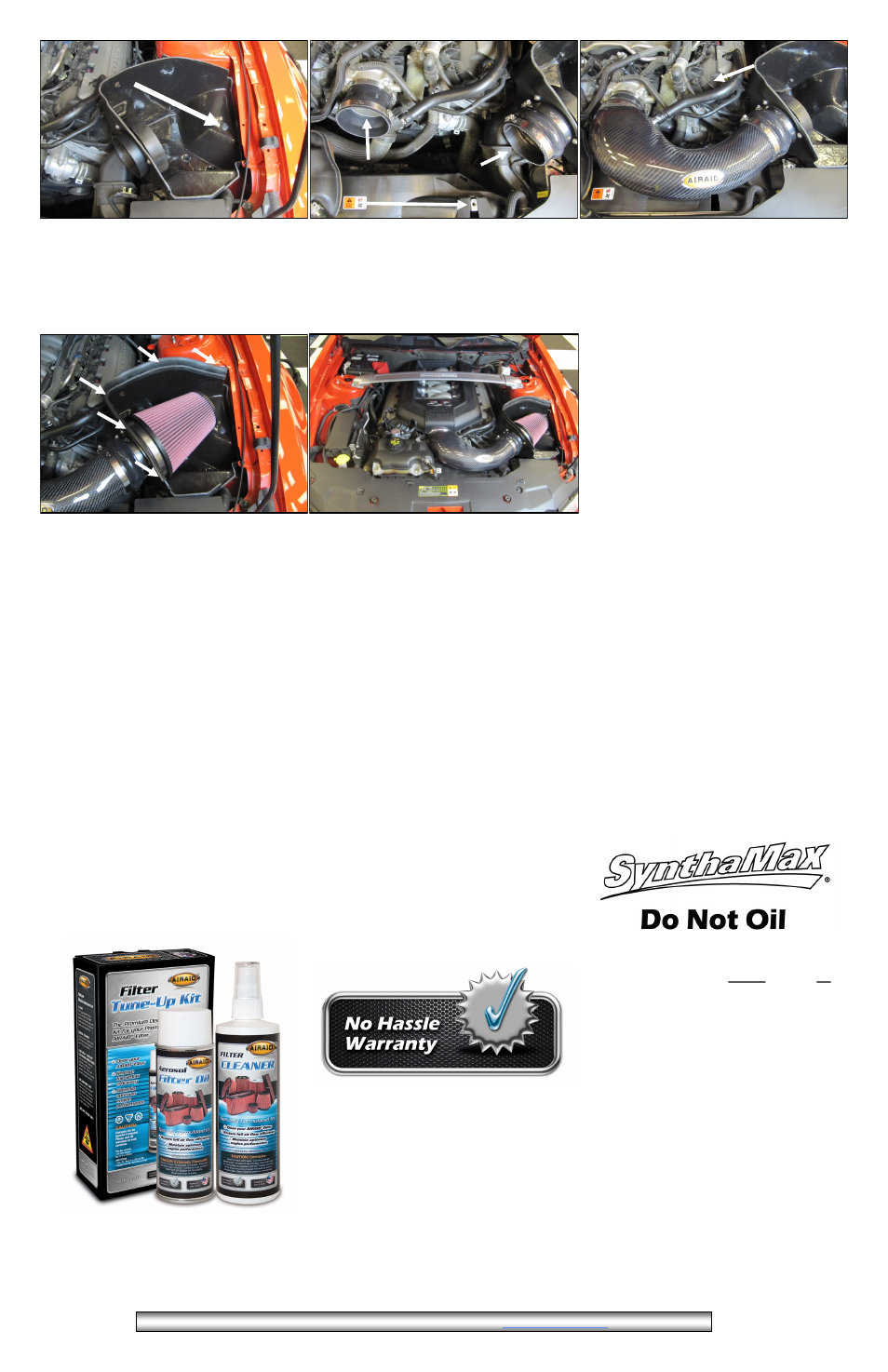

13. Install the Airaid Premium Filter (#1) onto the Flter
Adapter and tighten the hose clamp. Install the Weather
Strip (#7) onto the CAB with the contoured edge going
away from the filter. Start at the front of the vehicle and
work your way back.
14. Replace the engine cover and shock tower brace.
10. Install the CAB into the vehicle. Make sure that the
Air inlet of the CAB aligns with the factory duct, and the
two locating pins on the bottom align with the factory
grommets. Next reinstall the factory bolt that was re-
moved in step #3 through the steel sleeve and grommet
and into the inner fender.
11. Install the Coupler and Hump Hose and Clamps:
A. Install the Silicone Coupler (#6) and Hose clamps
onto the throttle body. Place the #56 clamp (#15) on the
Throttle body side of the reducer, and the #64 clamp
(#18) on to the open end. B. Install the Hump Hose (#5)
onto the Filter Adapter along with two #64 hose clamps
as shown. Leave the Clamps loose for now.
Remove the speed nut from the fan shroud.
12. Install the Airaid Intake Tube into the couplers as
shown, and tighten all Hose clamps. Reconnect the
breather line/lines to the Aluminum Fittings depending on
your application.
Reconnect the Mass Air Flow sensor, which is now locat-
ed in the lower back side of the intake. Slide the locking
tab back into the connector
B.
B.
A.
15. Double check your work!
Make sure there is no foreign material in the
intake path. Make sure all clamps, hoses, bolts,
and screws are tight. Double check the hood
clearance. It is Very important to verify that the
Intake Tube is not rubbing on the fan shroud
or the hood.
Reconnect the negative battery cable.
REV.10.11.13
FILTER IDENTIFICATION
700-461 Airaid Oiled Media 701-461 Airaid SynthaMax Dry Media - Red
702-461 Airaid SynthaMax Dry Media - Black 703-461 Airaid SynthaMax Dry Media - Blue
For your Oiled media filter we
suggest using the AIRAID Filter
Tune-Up Kit!
Synthamax Air Filters do not require oil.
Service air filter as needed by cleaning
with common non-petroleum all-purpose
household cleaner and water. Simple
Green®, Formula 409® or equivalent
works great. Apply cleaner to outside of
air filter and allow to soak. Then flush
filter clean from the inside out with a gar-
den hose and repeat steps if necessary.
Do not apply high pressure water or air
to clean filter. Allow filter to air dry and
reinstall
.
