19. Double check your work!
Make sure there is no foreign material in the intake path.
Make sure all clamps, hoses, bolts, and screws are tight.
20. Reconnect the negative battery cable!
Airaid Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 (800) 498-6951
REV.11.7.13
13. A. Install the ur ethane hump hose
(#7) onto the filter adapter using two #72
hose clamps (#20), (Leave loose for now).
B. Install the lar ge end of the r educing
coupler (#8) on the Airaid Intake Tube
(#4), using two #52 hose clamps (#19).
Tighten only the hose clamp on the tube.
15. Install the grommet (#21) into the hole
in the Airaid Intake Tube, and then gently
push the temperature sensor (removed in
step #4) thru the grommet until completely
seated.
A.
B.
14. Install the Airaid Intake Tube into the
hump hose first, and then onto the throttle
body, making sure it is flush against the
throttle body, adjust for fit, now tighten all
of the hose clamps.
16. If you are working on a 5.7L, skip to
step #17. If you are working on a 6.1L, re-
connect the factory breather tube to the
Airaid Intake Tube as shown.
18. Install the Airaid Premium Filter (#1),
onto the filter adapter inside of the CAD,
and tighten the hose clamp. Next install the
weather strip (#10) onto the top of the
CAD.
17. If you are working on a 6.1L, skip to
step #18. If you are working on a 5.7L,
install the breather hose (#9) from the
valve cover to the Airaid Intake Tube as
shown. Re-install the beauty cover onto the
engine.

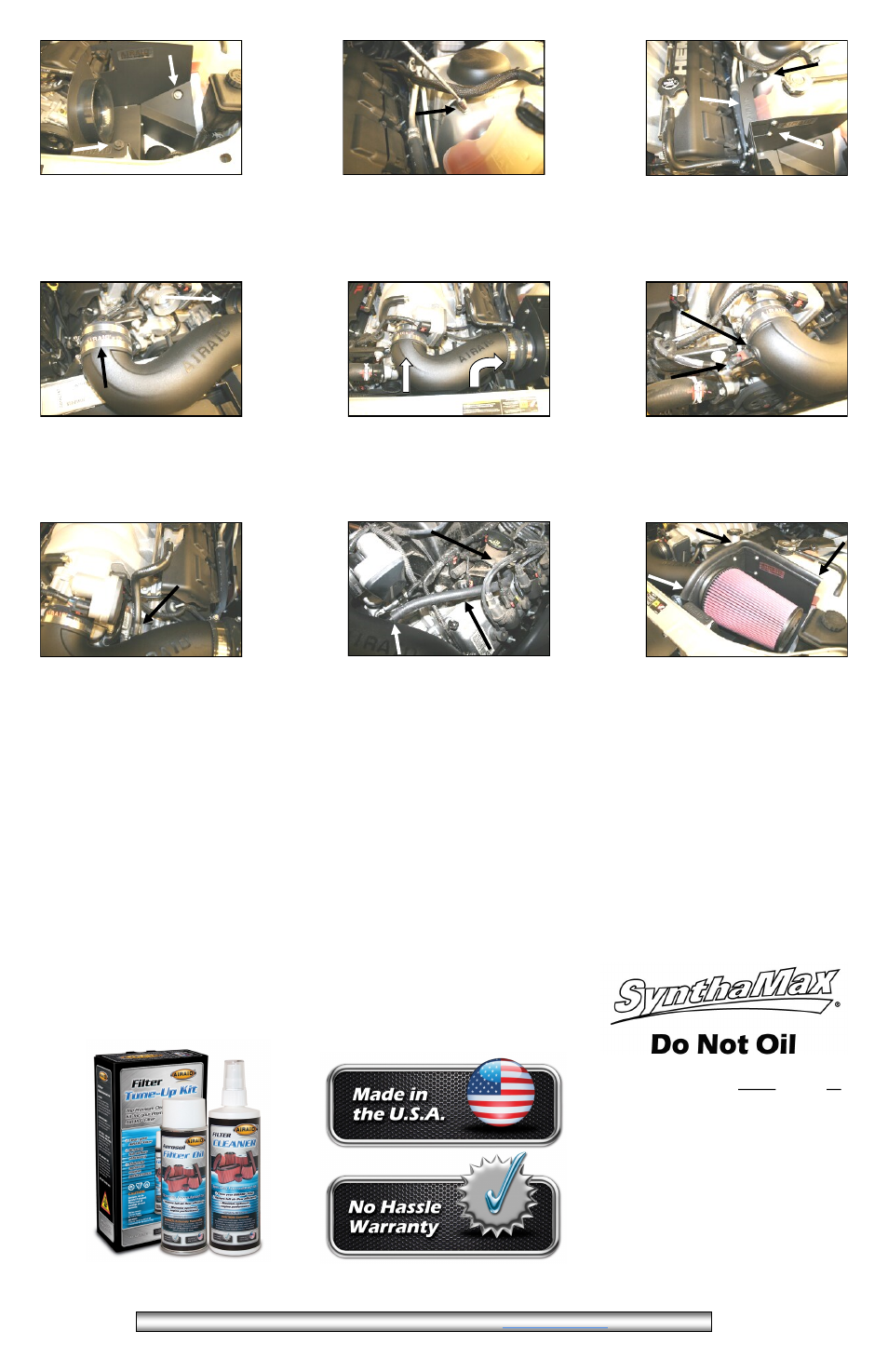

10. Install the CAD into the vehicle. Re-
install the factory bolt removed in step #6
thru the CAD and into the radiator support.
Next install the 3/8-16 x 1 1/4” button head
bolt (#11) and 3/8” flat washer (#12) thru
the CAD and into the well nut. Tighten
both bolts.
12. Install the rear support bracket (#6)
from the CAD to the inner fender using
three ¼ - 20 x 1/2” button head bolts (#13),
¼” flat washers (#14), 1/4” serrated nuts
(#15), and the 10mm factory nut removed
in step #11.
11. Remove the 10mm nut from the stud
on the driver’s side inner fender and save it
for the next step.
Thank you for purchasing the Airaid Intake System. Contact Airaid @ (800) 498-6951 8:00 AM - 5:00 PM MST weekdays for questions
regarding fit or instructions that are not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are
missing, or were damaged during shipping. If any parts are missing, contact Airaid. The air filter element is protected from direct exposure to wa-
ter and debris; care should be taken not to drive through deep water. WATER INGESTION IS THE DRIVERS RESPONSIBILITY! The air filter
is reusable and should be cleaned periodically.
FILTER IDENTIFICATION
700-469 Airaid Oiled Media 701-469 Airaid SynthaMax Dry Media - Red
702-469 Airaid SynthaMax Dry Media - Black 703-469 Airaid SynthaMax Dry Media - Blue
For your Oiled media filter we
suggest using the AIRAID Filter
Tune-Up Kit!
P/N 790-551 Aerosol Spray
P/N 790-550 Squeeze Spray
Synthamax Air Filters do not require oil.
Service air filter as needed by cleaning
with common non-petroleum all-purpose
household cleaner and water. Simple
Green®, Formula 409® or equivalent
works great. Apply cleaner to outside of
air filter and allow to soak. Then flush
filter clean from the inside out with a gar-
den hose and repeat steps if necessary.
Do not apply high pressure water or air
to clean filter. Allow filter to air dry and
reinstall
.
