17. Double check your work!
Make sure there is no foreign material in the intake path. Make sure all clamps, hoses, bolts,
and screws are tight. Periodically check the tightness of all hose clamps.
Airaid Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 (800) 498-6951
REV.10.22.13
P/N 790-551 Aerosol Spray
P/N 790-550 Squeeze Spray
Thank you for purchasing the Airaid Intake System. Contact Airaid @ (800) 498-6951 8:00 AM - 5:00 PM MST weekdays for questions regarding fit or
instructions that are not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are missing, or were damaged during
shipping. If any parts are missing, contact Airaid. The air filter element is protected from direct exposure to water and debris; care should be taken not to drive
through deep water. WATER INGESTION IS THE DRIVERS RESPONSIBILTY! The air filter is reusable and should be cleaned periodically.

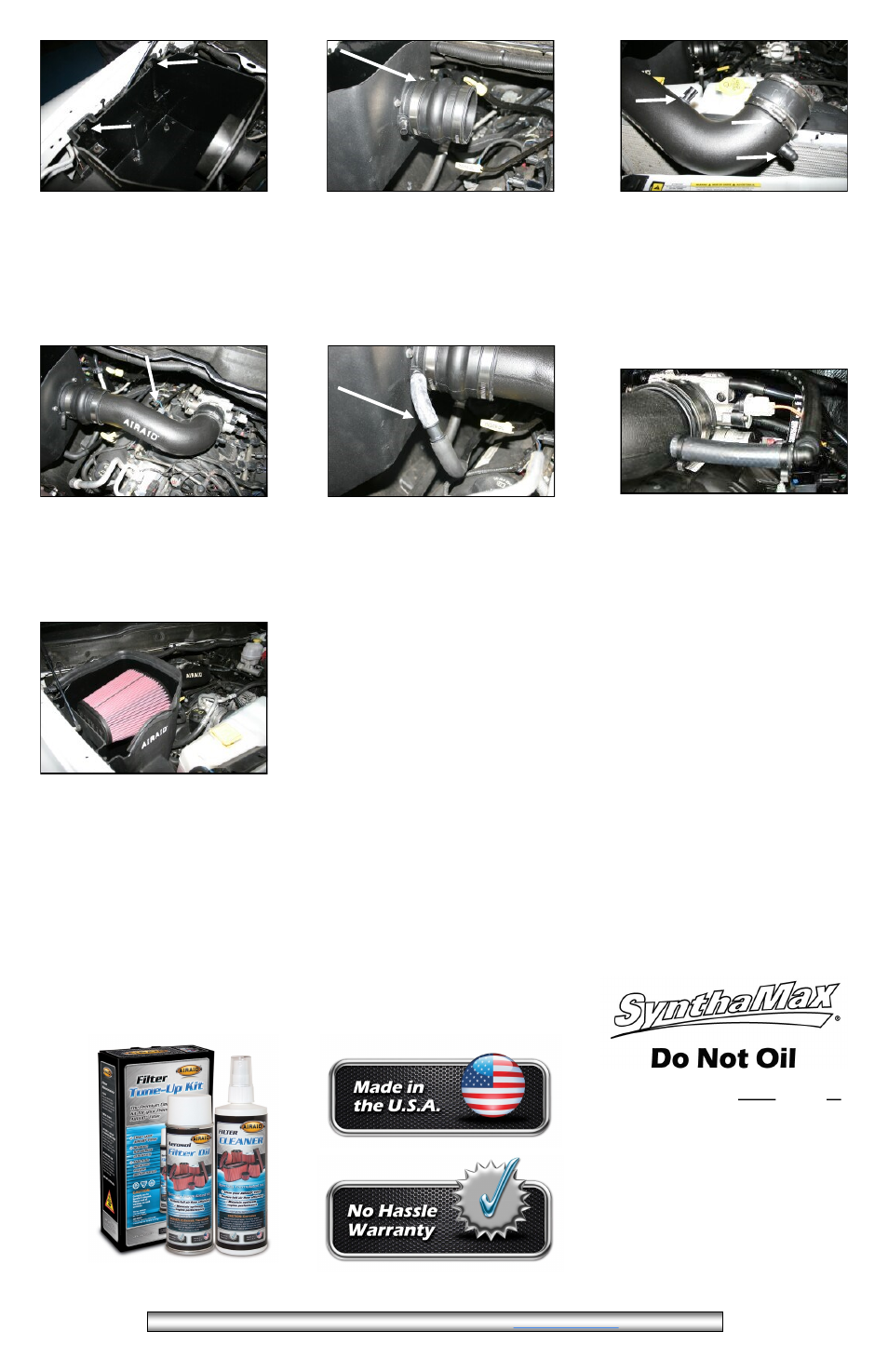

11. Install the hump hose (#4) onto the CAB
using two #60 hose clamps (#11). Tighten the
hose clamp on the CAB.
12. 2002-07 Models: A.) Reinstall the factor y
coupler and hose clamps on to the Airaid intake
tube (#2). (2008-12 Models: use the supplied
coupler (#5), and #48 hose clamps (#10).
Tighten the hose clamp on the tube.
2003-12Models: B.) Install the supplied gr om-
met (#13) into the hole in the Airaid tube, and
then carefully push the factory air temperature
sensor into the grommet. 2002 Models: Install
the grommet plug (#12) in place of the grommet.
2004-12 Models: C.) Slide the r ubber cap
(#14) over the nipple on the Airaid intake tube
and secure it with the #14 speed clamp (#16).
13. Slide the Airaid intake tube into the hump
hose first, and then onto the throttle body. Adjust
for fit, and then tighten the two remaining hose
clamps. 2003-12 Models: Reconnect the tem-
perature sensor wiring harness to the sensor in
the tube. (It may be necessary to remove the
tape on the wiring harness, pull out enough wire
to reach the temperature sensor, and then retape
the harness ).
14. 2004-12 Models: Reconnect the factor y
breather hose to the 1/2” barbed fitting on the
CAB using the 1/2” r ubber elbow (#15), and
1/2”x 3/4” barbed fitting (#20) as shown.
16. Install the Airaid Premium Filter (#1) onto
the Airaid filter adapter, and tighten the hose
clamp. Install the weather strip (#7) onto the top
of the CAB, starting at the fender, and working
your way towards the radiator.
18. Reconnect the negative battery cable!
10. Install the CAB into the vehicle aligning the
grommets over the locating pins. Reinstall the
two factory bolts into the fender that were re-
moved in step #9.
A.
B.
C.
15. 2002-03 Models: Install one end of the
provided 90° barbed fitting (#22) into the factory
breather hose and then connect the supplied 1/2”
breather hose (#21) to the other end. Connect the
hose to the nipple on the Airaid intake tube. Se-
cure all three connections with the provided #16
Speed Clamps (#17).
FILTER IDENTIFICATION
720-476 Airaid Oiled Media 721-476 Airaid SynthaMax Dry Media - Red
722-476 Airaid SynthaMax Dry Media - Black 723-476 Airaid SynthaMax Dry Media - Blue
For your Oiled media filter we suggest
using the AIRAID Filter Tune-Up Kit!
Synthamax Air Filters do not require oil.
Service air filter as needed by cleaning
with common non-petroleum all-purpose
household cleaner and water. Simple
Green®, Formula 409® or equivalent
works great. Apply cleaner to outside of
air filter and allow to soak. Then flush
filter clean from the inside out with a gar-
den hose and repeat steps if necessary.
Do not apply high pressure water or air
to clean filter. Allow filter to air dry and
reinstall
.
Full color instructions can be viewed on our web site at Airaid.com. Use the
Product Search function to find your part number, and click View Details.
