Airaid 250-305 - Manual

Installation Instructions
For Part Numbers:
250-305 720-242 Airaid Oiled Media Filter
251-305 721-242 SynthaMax Dry Media Filter - Red
252-305 722-242 SynhtaMax Dry Media Filter - Black
253-305 723-242 SynthaMax Dry Media Filter - Blue
2014-15 Chevrolet Camaro SS
6.2L V8
1. Disconnect negative battery cable.
Remove the oil fill cap and then lift up on the front of
the engine cover to remove it from the vehicle. Replace
the oil cap for now to make sure nothing falls into the
crankcase during the install. 2. Pull the crankcase breather hose out of the air intake
tube using a firm tug. An O-ring is all that keeps it at-
tached to the tube. Push the small tab on the hard plastic
crankcase breather hose on top of the passenger side
valvecover to release it from the steel breather line. Re-
move it from the vehicle. Next loosen the hose clamp
that secures the air intake tube to the throttle body. 3. Using a deep 10mm socket, remove and save the two
nuts that secure the factory airbox to the fender well.
Using a 9/32” wrench or a #20 Torx bit, remove the two
screws that secure the Mass Air Flow (MAF) sensor
into the air intake tube. Without disconnecting the MAF,
carefully remove it from the tube and set it out of the
way on top of the engine.
4. Lift the complete air intake assembly straight up and
out of the vehicle. 5. Use caution not to loose the factory grommet when
you remove the air intake assembly. It will be needed if
you ever want to reinstall the factory intake assembly. 6. Squeeze the sides of the factory intake scoop and re-
move it from the factory airbox. It will be reused in step
#10.
7. Remove the two steel inserts, and grommets from the
factory airbox. Save these pieces, they will be reused in
step #8. 8. Reinstall the two steel sleeves and grommets into the
Airaid Cold Air Box (CAB) (#3). Next install the filter
adapter (#4) into the CAB as shown using three 1/4-20
button head bolts (#19), and 1/4” flat washers (#17).

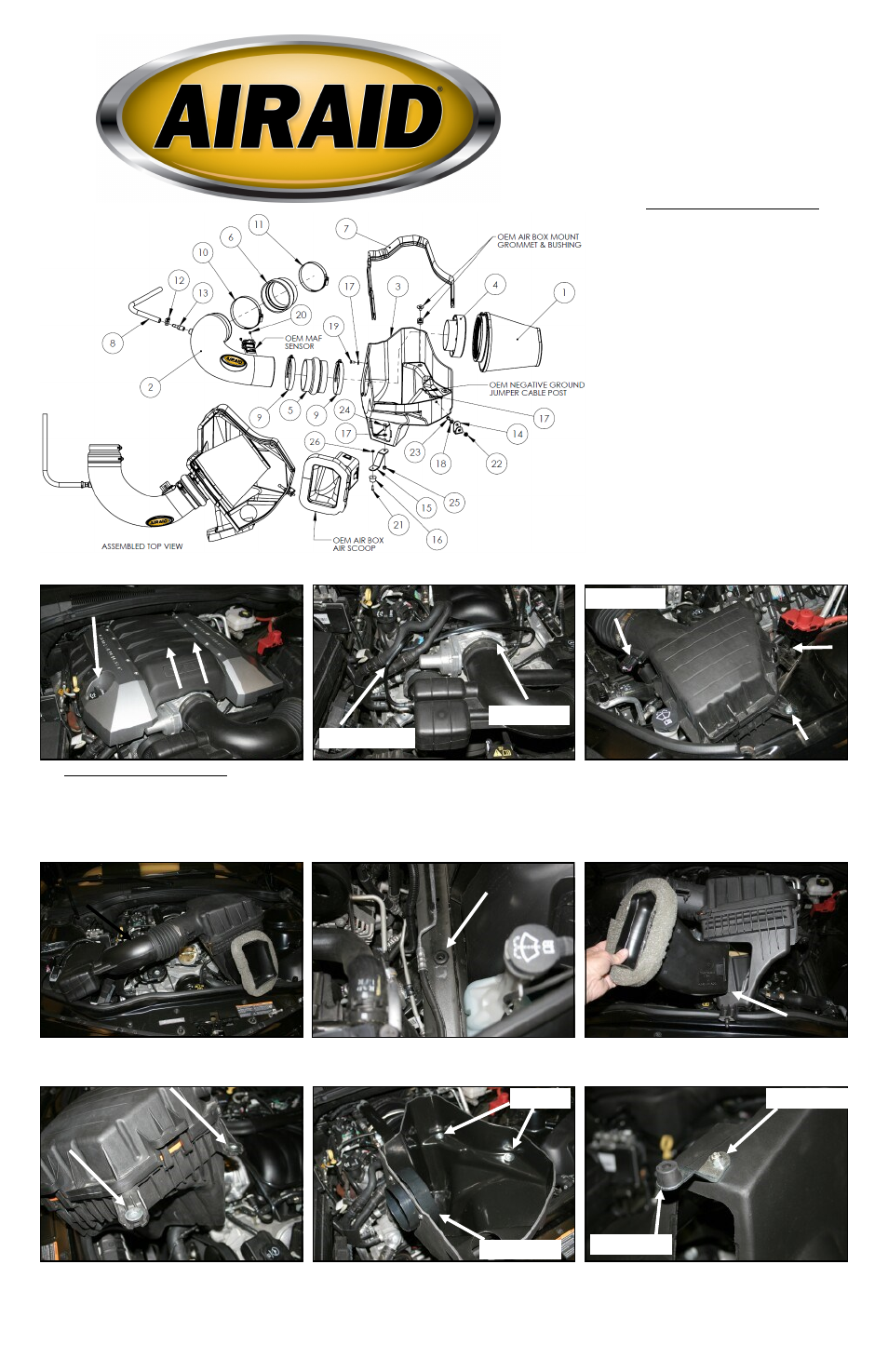

Refer to the line drawing above for details. 9. Turn the CAB upside down and mount the lower
bracket (#15) to the bottom of the CAB using one 1/4-
20x3/4” hex bolt (#10), 1/4” flat washer (#11), and 1/4”
Nylock nut (#25) as shown. Next using one 8-32x5/8”
button head screw (#21), and one #8 Kep nut (#26), at-
tach the plastic bumper (#16) to the bracket as shown.
Filter Adapter
Breather Hose
Hose Clamp
MAF Sensor
Grommets
Plastic Bumper
Lower Bracket
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.
Component Identification
1. Airaid Premium Filter 1
2. Intake Tube 1
3. Cold Air Box 1
4. Filter Adapter 1
5. Silicone Hump Hose 1
6. Silicone Reducer 1
7. Weatherstrip 36" 1
8. 3/8" x 18" Breather Hose 1
9. #64 Hose Clamp 2
10. #68 Hose Clamp 1
11. #60 Hose Clamp 1
12. #14 Speed Clamp 1
13. 3/8"Barbed Fitting 1
14. Side Bracket 1
15. Lower Bracket 1
16. Bumper 1
17. 1/4” Flat Washer 5
18. ¼” Lock Washer 1
19. ¼-20 x 1/2” Button Head Screw 3
20. 8-32 x 3/8” Button Head Screw 2
21. 8-32 x 5/8” Button Head Screw 1
22. 6 mm Flange Nut 1
23. 6 mm x1.0 Hex Bolt 1
24. ¼-20 x 3/4” Hex Bolt 1
25. ¼” Nylon Lock Nut 1
26. #8 Kep Nut 1
