Airaid 250-227 User Manual
Installation instructions, Component identification

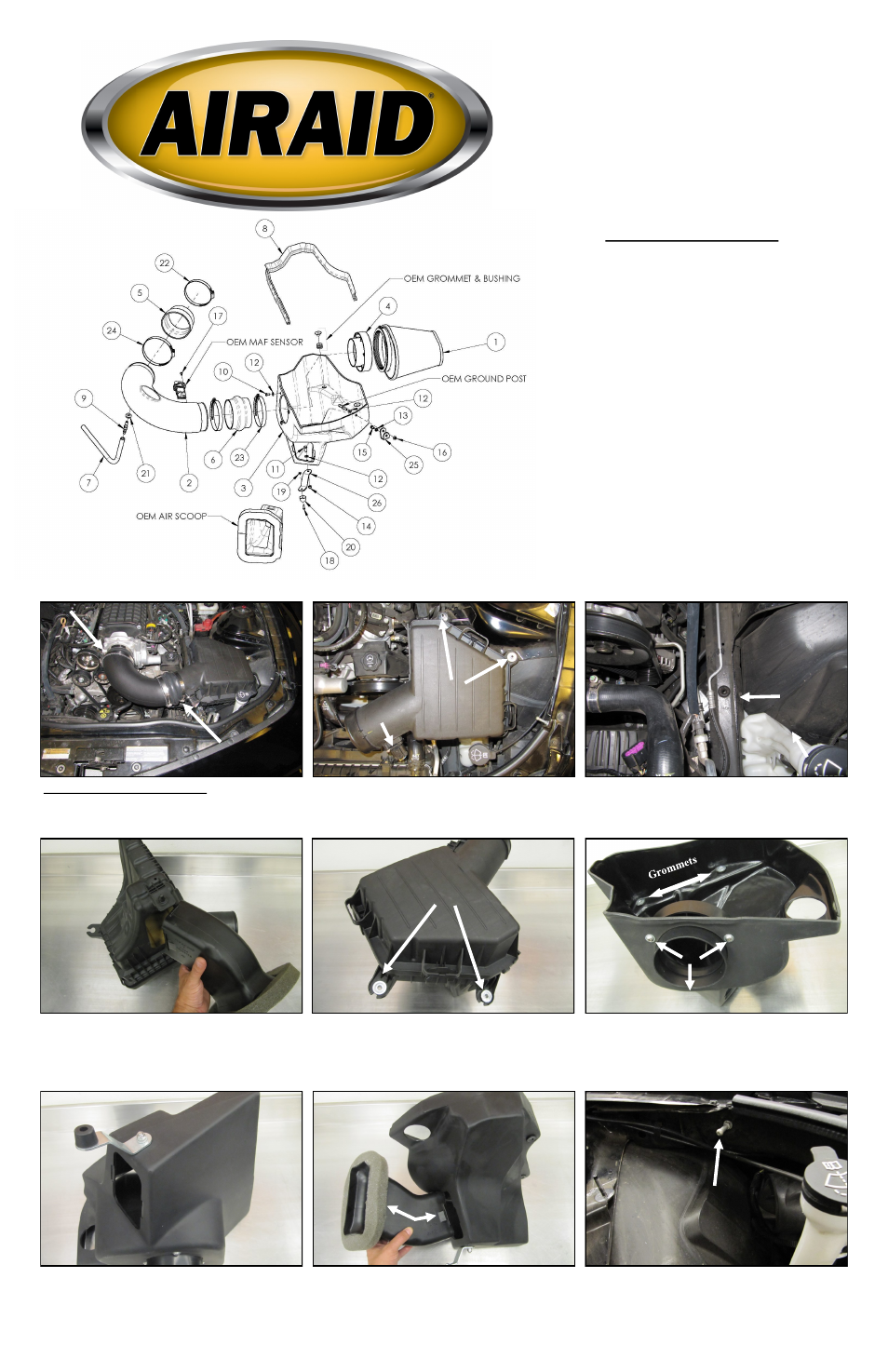

Component Identification
1.
Airaid Premium Filter
1
2.
Air Meter Tube
1
3.
Cold Air Box
1
4.
Filter Adapter
1
5.
Silicone Reducer
1
6.
Silicone Hump Hose
1
7.
3/8” x 17” Breather Hose
1
8.
Weather Strip 36”
1
9.
3/8” Barbed Fitting
1
10.
¼-20 x ½” Button Head Bolt
3
11.
1/4-20 x 3/4” Hex Head Bolt
1
12.
1/4” Flat Washer
5
13.
1/4” Lock Washer
1
14.
1/4” Lock Nut
1
15.
M6x1.0x12mmHexHead Bolt
1
16.
6mm Flange Nut
1
17.
8-32x3/8’’ButtonHead Screw
2
18.
8-32x 5/8’’ Button Head Screw
1
19.
#8 Kep Nut
1
20.
Bumper
1
21.
3/8 Grommet
1
22.
#60 Hose Clamp
1
23.
#64 Hose Clamp
2
24.
#68 Hose Clamp
1
25.
Side Bracket
1
26.
Bottom Bracket
1
27.
Zip Tie
3
Installation Instructions
For Part Numbers:
250-227
720-242 Airaid Oiled Media Filter
251-227
721-242 SynthaMax Dry Media Filter - Red
252-227
722-242 SynthaMax Dry Media Filter - Black
253-227
723-242 SynthaMax Dry Media Filter - Blue
2010-11 Chevrolet Camaro SS
6.2L V8 with Magnacharger
Technical Note.
A vehicle specific Computer Tune is re-
quired to successfully complete this modification.
Disconnect negative battery cable.
1. Loosen the hose clamps on the throttle body and the
airbox. Disconnect the crankcase breather and remove
the intake tube.
2. A.) Using a deep 10mm socket, r emove and save
the two nuts that secure the factory airbox to the fender
well. B.) Disconnect the Mass Airflow sensor.
3. Lift the complete air intake assembly straight up and
out of the vehicle. Use caution not to loose the factory
grommet when you remove the air intake assembly.
4. Compress the sides of the factory intake scoop and
remove it from the factory airbox. It will be reused in
step #8.
5. Remove the two steel inserts, and grommets from the
factory airbox. Save these pieces, they will be reused.
6. Reinstall the two steel sleeves and grommets into the
Airaid Cold Air Box or CAB (#3). Next install the Fil-
ter Adapter (#4) as shown using three 1/4-20 Button
Head Bolts (#10), and 1/4” Flat Washers (#12). Refer to
the line drawing above for details.
7. Turn the Cold Air Box upside down and mount the
Bottom Bracket (#26) using one 1/4-20x3/4” Hex Head
Bolt (#11), 1/4” Flat Washer (#12), and 1/4”Lock Nut
(#14) as shown. Next using one 8-32x5/8” Button Head
Screw (#18), and the #8 Kep Nut (#19), attach the Plas-
tic Bumper (#20) to the Backet as shown.
8. Reinstall the factory scoop into the Airaid Cold Air
Box with the inlet angled upward . It will snap into
place.
9. Using a 10mm wrench, remove and save the ground
lug from the driver’s side inner fender. It will be reused
in step #11.
Filter Adapter
A
B
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.
