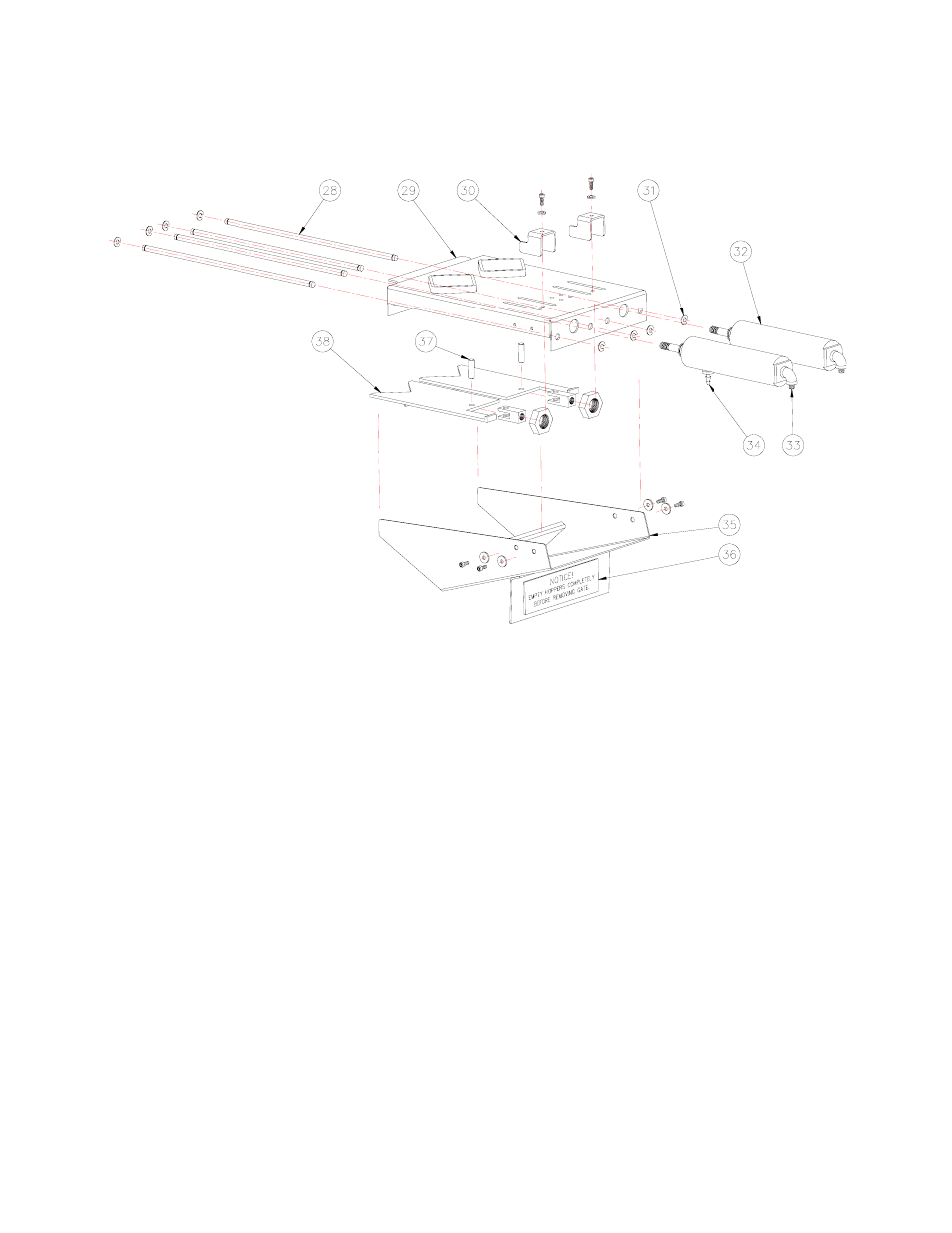

9-2-5 Typical Gate Assembly
Typical OS Series Diamond Gate Assembly Detail
28
Slide gate guide rod
29
Stainless steel gate assembly base
30
Slide gate stop (stroke-limiter)
31
Retaining clip
32
Slide gate air cylinder
33
Slide gate air cylinder pneumatic connector fitting
34
Slide gate air cylinder pneumatic barb fitting
35
Slide gate assembly material chute (deflector)
36
Notice (warning) label
37
Pin
38
Diamond v-gate (metering slide gate)
