GNR-3000 System Administrator’s Manual
81

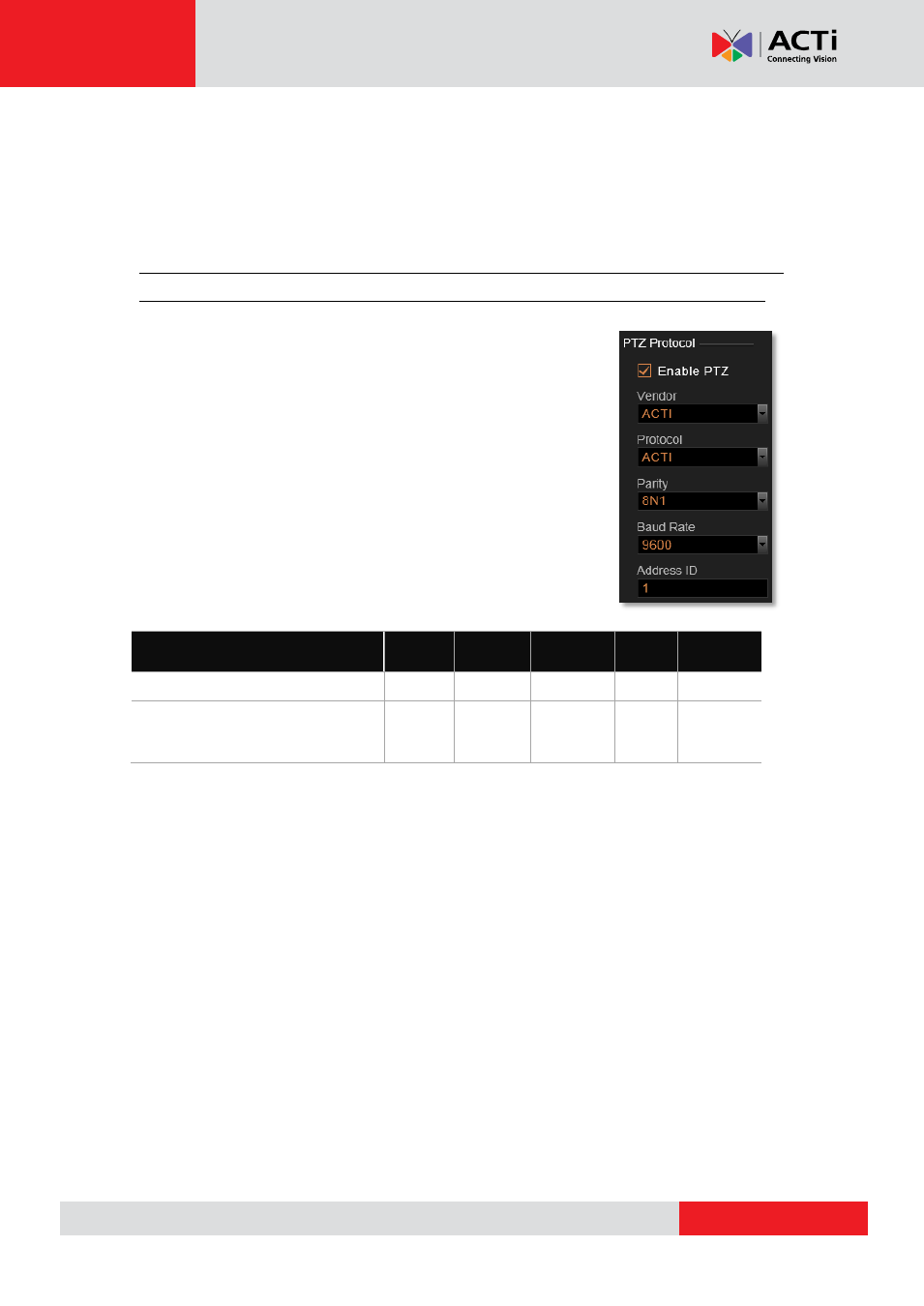

Configure PTZ Device
PTZ devices can do panning, tilting and zooming automatically or through manipulation. The
PTZ-related applications are broadly supported by NVR 3.0. For example, you may control the
movements of a PTZ camera with user interface panel controls or a joystick; the device can be
programmed to execute a continuous tour or triggered by events to go to a preset position.
Once an ACTi PTZ device is added to the system, NVR 3.0 will use the default settings of the
device model and enable PTZ functions, so that you may immediately start PTZ operations.
If you have previously changed the communication parameters of
PTZ devices, please make sure these parameters on NVR side and
device side match.
Below is a list of functions supported ACTi solutions and the
required settings. When you configure PTZ Protocol properties for
ACTi Pan/Tilt/Zoom devices, please make sure the required settings
are correct
To start matching up the parameters, please follow the below procedures:
1. If the device is a speed dome camera or an analog camera attached to video server,
configure the parameters on physical device according to the product’s installation
instructions.
2. On the device’s (camera or video server)web configurator, configure the parameters to
match the setting on physical device, and test the PTZ operations to make sure the device
is properly set to be connected
3. In NVR 3.0 server, go to Setup page Devices tab, select the device from Device List,
and click PTZ tab. In PTZ Protocol section, fill in the communication parameters.
ACTi Pan/Tilt/Zoom devices Vendor Protocol Baud rate Parity
Address
ID
IP Zoom Camera/ IP PTZ Camera V V V
IP Speed Dome / IP Camera
mounted on Scanner/ Analog PTZ
camera attached to Video Server
V V V V V
