GNR-3000 System Administrator’s Manual
67
Add Non-ACTi Cameras
In this section, we will guide you through how to add devices to NVR3 system.
After the required CDP license is activated, please:
1. Use the utility provided by camera manufacturer to confirm the camera properties:
(1) Protocol, (2) IP Address, (3) HTTP Port, and (4) User Name & Password.
2. Log in to NVR, go to Setup page “Device” tab, click “Add Device”, and select “Add
Device Manually ”.

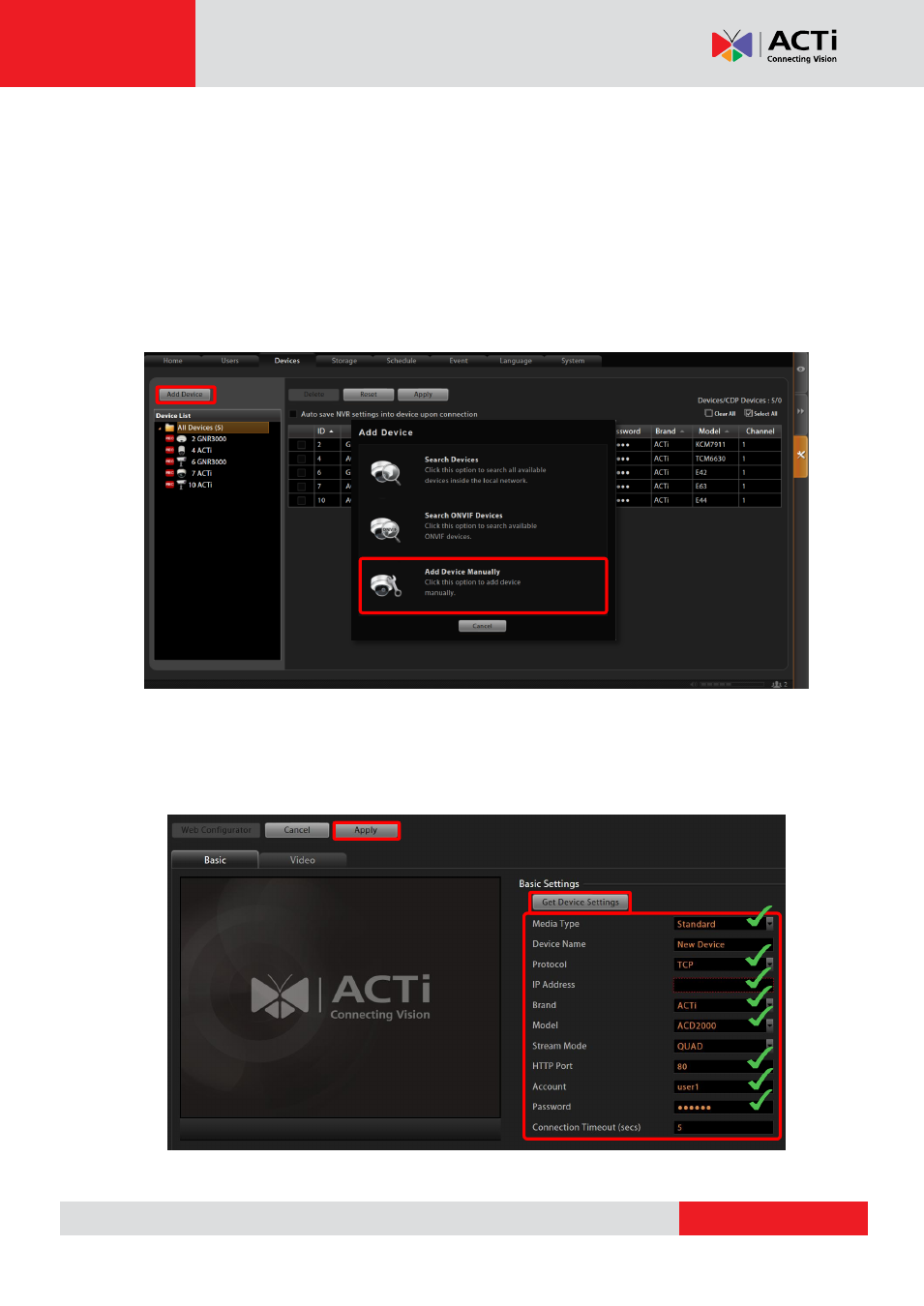

3. After selecting “Add Device Manually”, the camera settings page will appear as below.
Please fill in the eight marked fields shown below that are required to communicate with
the device - Media Type, Protocol, IP Address, Brand, Model, HTTP Port, User Name,
and Password , and then click “Apply”.
