6
SLOAN • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-800-982-5839 • Fax: 1-800-447-8329 • www.sloanvalve.com
© 2014 SLOAN VALVE COMPANY Code No. 0816170 – Rev. 3 (04/14)
MODEL 140 MODEL 142 MODEL 143
MODEL 144
Item Part Description
No. No.
1 † Valve Body
2 H-730-A Bak-Chek ® Control Stop
3 K-46 Gasket
4 A-6
Coupling
5 C-43-A 3” (76 mm) Push Button Actuator Assembly
6 C-9-A Blind Nut Push Button Actuator Assembly
7 B-12-A Lever Actuator Assembly
8A V-500-AA ¾” (19 mm) Vacuum Breaker Assembly RB†
8B V-500-AA 1½” (38 mm) Vacuum Breaker Assembly RB†
9 F-2-AW ¾” (19 mm) Slip Joint Coupling RB
10 F-15-A ELL with ¾” (19 mm) Tail RB (Models 195 and 197)
11 F-2-A 1½” (38 mm) Slip Joint Coupling
12 F-21 1½” (38 mm) Double Slip Elbow
13 F-2-A 1½” (38 mm) Coupling with S-21 Gasket (for Model 154,
Order Part Number F-5-A)
14 F-110 1-1/4” (32 mm) Outlet Tube
15 F-2-AU 1-1/4” (32 mm) Slip Joint Coupling RB
16 F-2-AA 1-1/2” (38 mm) Slip Joint Coupling (Set of Two)
17 F-102 1-1/2” (38 mm) Outlet Tube CP (for Models 143 and 144,
Order Part Number F-100)
18 F-7 Flange (Not Furnished with Models 143 and 144)
19 F-5-A 1-1/2” (38 mm) Spud Coupling Assembly CP
20 F-25-A 1-1/2” (38 mm) Elbow Assembly
21 F-100 1-1/2” (38 mm) Outlet Tube RB (for Model 154, Order
Part Number F-102)
22 F-15-A 1-1/2” (38 mm) Elbow Assembly CP
23 F-15-A ELL with 3/4” (19 mm) Tail CP (Model 197)
24 F-5-A 1-1/4” (32 mm) Spud Coupling Assembly CP
25 F-5-A 3/4” (19 mm) Spud Coupling Assembly CP
26 F-25-A 1-1/4” (32 mm) Elbow Assembly
27 V-500-A 1-1/2” (38 mm) Vacuum Breaker Assembly RB (Model 150)
F-22 1” (25 mm) Female Outlet RB
F-2-A 1-1/2” (38 mm) Coupling with S-21 Gasket
† Part number varies with valve model variation; consult factory.
12
8B 8B 8B
MODEL 150
MODEL 190 MODEL 192 MODEL 195 MODEL 197
MODEL 153 MODEL 152 MODEL 154
27
7
6
5
2
3
1
4
16 16
16 16 16 19
19
22
16
20 20
18
17
20
13
19
19 22
18
17
12
OPTIONAL
(SEE PIPING DETAIL AT RIGHT)
12 12 13
15 16 11
14
26 9 10 10
23
25
24
17 18
18
21 17 18 17 18
12 12
12 12
INSTALL
WITH
FLANGE
AGAINST
SPUD
INSTALL
WITH
FLANGE
AGAINST
SPUD
21
8B
13
8A
8B
8A 8A
8B 8B

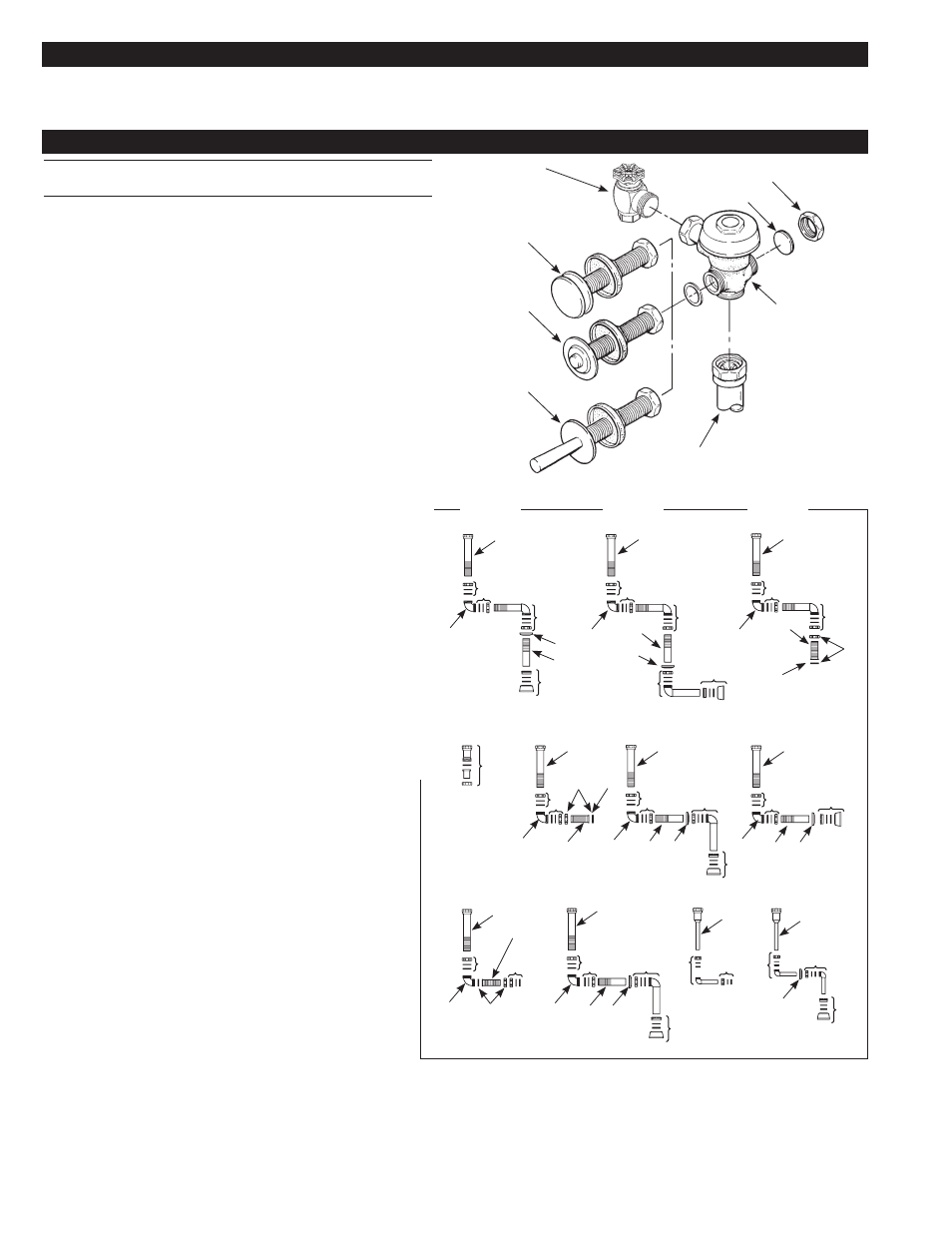

PARTS LIST
Manufactured in the U.S.A by Sloan Valve Company under one or more of the
following patents: U.S. Patents. 5,295,655; 5,542,718; 5,558,120; 5,564,460;
5,730,415; 5,865,420; 5,887,848; 5,967,182. Other Patents Pending.
Bak-Chek
® , Para-flo ® , PERMEX ® , Turbo-Flo ®
CARE AND CLEANING
DO NOT use abrasive or chemical cleaners (including chlorine bleach) to clean Flushometers that may dull the luster and attack the chrome or special decorative
finishes. Use ONLY mild soap and water, then wipe dry with clean cloth or towel. While cleaning the bathroom tile, protect the Flushometer from any splattering of
cleaner. Acids and cleaning fluids will discolor or remove chrome plating.
NOTE: The information contained in this document is subject to change without notice.
