Sloan 111 Crown/Crown II Exposed Flushometer - Manual (Page 6)

Item Part Description
No. No.
1 † Valve Assembly
2 B-30-A Handle Assembly
3A CR-120 PVDPB (Polished Brass) Cover Trim Ring (Crown II only)
CR-120 PVDBN (Brushed Nickel) Cover Trim Ring (Crown II only)
CR-120 PVDSF (Satin Finish) Cover Trim Ring (Crown II only)
3B CR-113 PVDPB (Polished Brass) Handle Trim Ring (Crown II only)
CR-113 PVDBN (Brushed Nickel) Handle Trim Ring (Crown II only)
CR-113 PVDSF (Satin Finish) Handle Trim Ring (Crown II only)
4 A-31 Handle Gasket — 48 per pkg.
5 H-700-A Bak-Chek ® Control Stop
6A V-500-AA 1½” x 9” (38 mm x 229 mm) Vacuum Breaker Assembly
CP (Model 111)‡
V-500-AA 1½” x 21” (38 mm x 533 mm) Vacuum Breaker Assembly
CP (Model 115)‡
V-500-AA 1½” x 24” (38 mm x 610 mm) Vacuum Breaker Assembly
CP (Model 116)‡
6B V-500-AA 1¼” x 9” (32 mm x 229 mm) Vacuum Breaker Assembly
CP (Model 180)‡
6C V-500-AA 3/4” x 9” (19 mm x 229 mm) Vacuum Breaker Assembly
CP (Model 186)‡
6D V-500-A 1½” (38 mm) Vacuum Breaker Assembly CP (Model 120)‡
7 F-109 1½” (38 mm) Elbow Flush Connection CP (Model 120)
8A CR-1010-A 1½” (38 mm) Spud Coupling Assembly (Models 111, 115,
116 & 120)
8B CR-1009-A 1¼” (32 mm) Spud Coupling Assembly (Model 180)
8C CR-1008-A ¾” (19 mm) Spud Coupling Assembly (Model 186)
9 F-7 Supply Flange (supplied when valve is not ordered w/ sweat
solder kit)
10 H-633-AA 1” (25 mm) Sweat Solder Kit & Cast Wall Flange w/ Set
Screw
(YBYC Variation)*
H-636-AA ¾” (19 mm) Sweat Solder Kit & Cast Wall Flange w/ Set
Screw
(YBYC” Variation)*
11 H-573-A Locking Vandal Resistant Control Stop Cap CP §
H-582 Locking Vandal Resistant Control Stop Cap CP •
Handle and Cover Trim Ring Kits
CR-132-A CP (Chrome Plate) Handle/Cover Trim Ring Kit
CR-132-A PVDPB (Polished Brass) Handle/Cover Trim Ring Kit
CR-132-A PVDBN (Brushed Nickel) Handle/Cover Trim Ring Kit
CR-132-A PVDSF (Satin Chrome) Handle/Cover Trim Ring Kit
Handle Repair Kit
CR-1007 Handle Repair Kit
Piston Repair Kits
Please refer to the Sloan Repair and Maintenance Guide or Consult Factory
† Part number varies with valve model variation; consult factory.
‡ If valve was specified less vacuum breaker (“XYV” Variation), a straight flush tube is
supplied in place of the vacuum breaker assembly. Consult Factory for part number.
§ For use w/H-700-A 1’’ & 3/4” and H-600-A 1’’ Screwdriver Bak-Chek ® Control Stops.
• For use w/H-600-A 3/4” Screwdriver Bak-Chek ® Control Stops.
* Furnished only when ordered with YBYC variation. For a complete listing of Crown II
and Crown Flushometer Valve Components and Repair Kits, refer to Repair Parts and
Maintenance Guide or consult your nearest plumbing wholesaler.
Manufactured in the U.S.A. by Sloan Valve Company under one or more of the following
patents: U.S. Patents: 5,558,120; 6,460,825; 6,499,716; 6,550,744; 6,616,118;
6,675,827; 5,564,460; 5,730,415; D399,932; D470,222; D494,255; 6,550,744;
CROWN II
® , CROWN ® , BAK-CHEK ® .
The information contained in this document is subject to change without notice.
SLOAN • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • www.sloanvalve.com
© 2013 SLOAN VALVE COMPANY Code No: 0816477 – Rev. 2 (10/13)
6A ‡
2
5
1
9
6D ‡ 6B ‡ 6C ‡
7
8A
8A
8B 8C
10 *
11
3B
3A
4

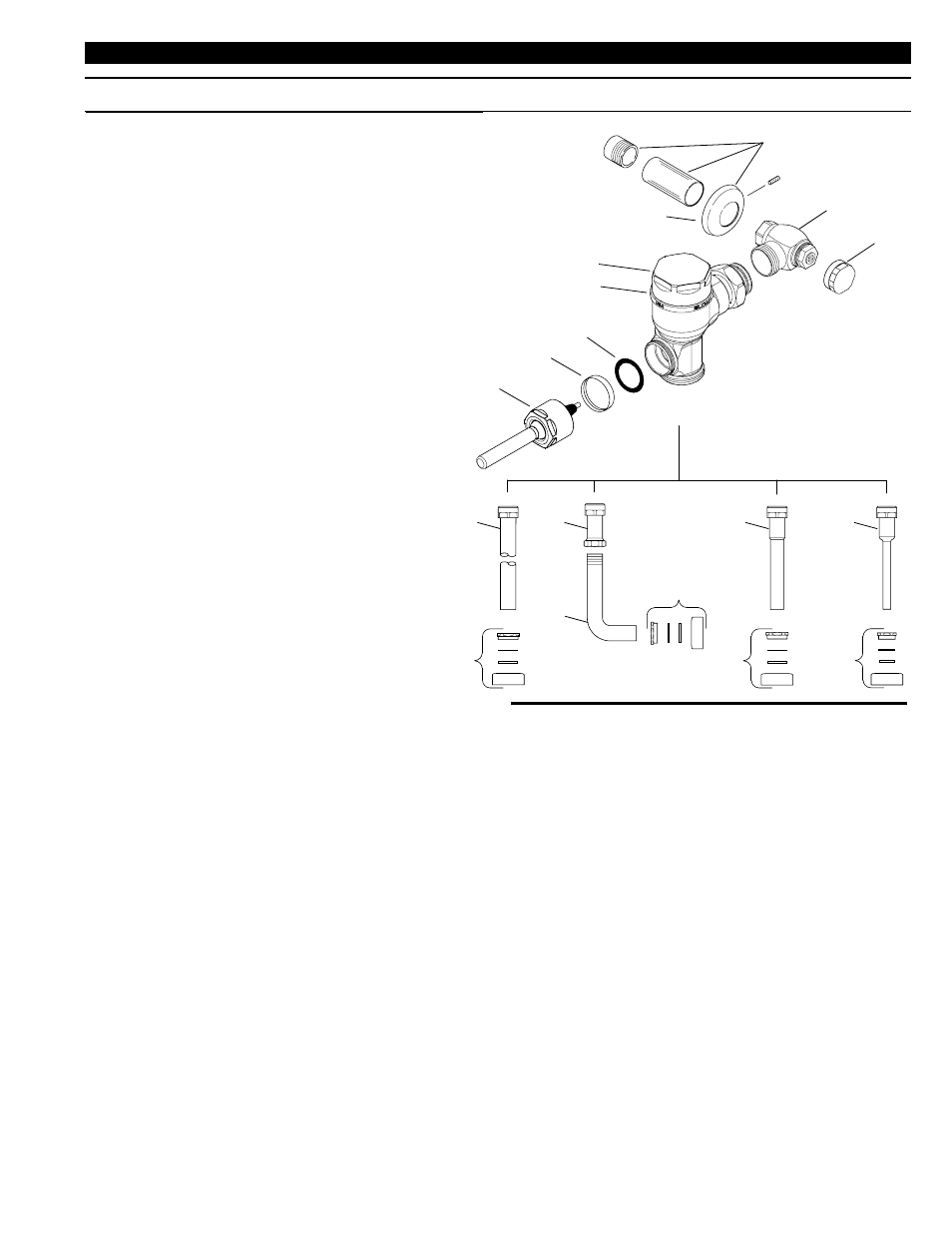

PARTS BREAKDOWN
