Installation and wiring, Return air bypass wiring, Rne modular controller field technical guide – Orion System RNE Modular Controller User Manual

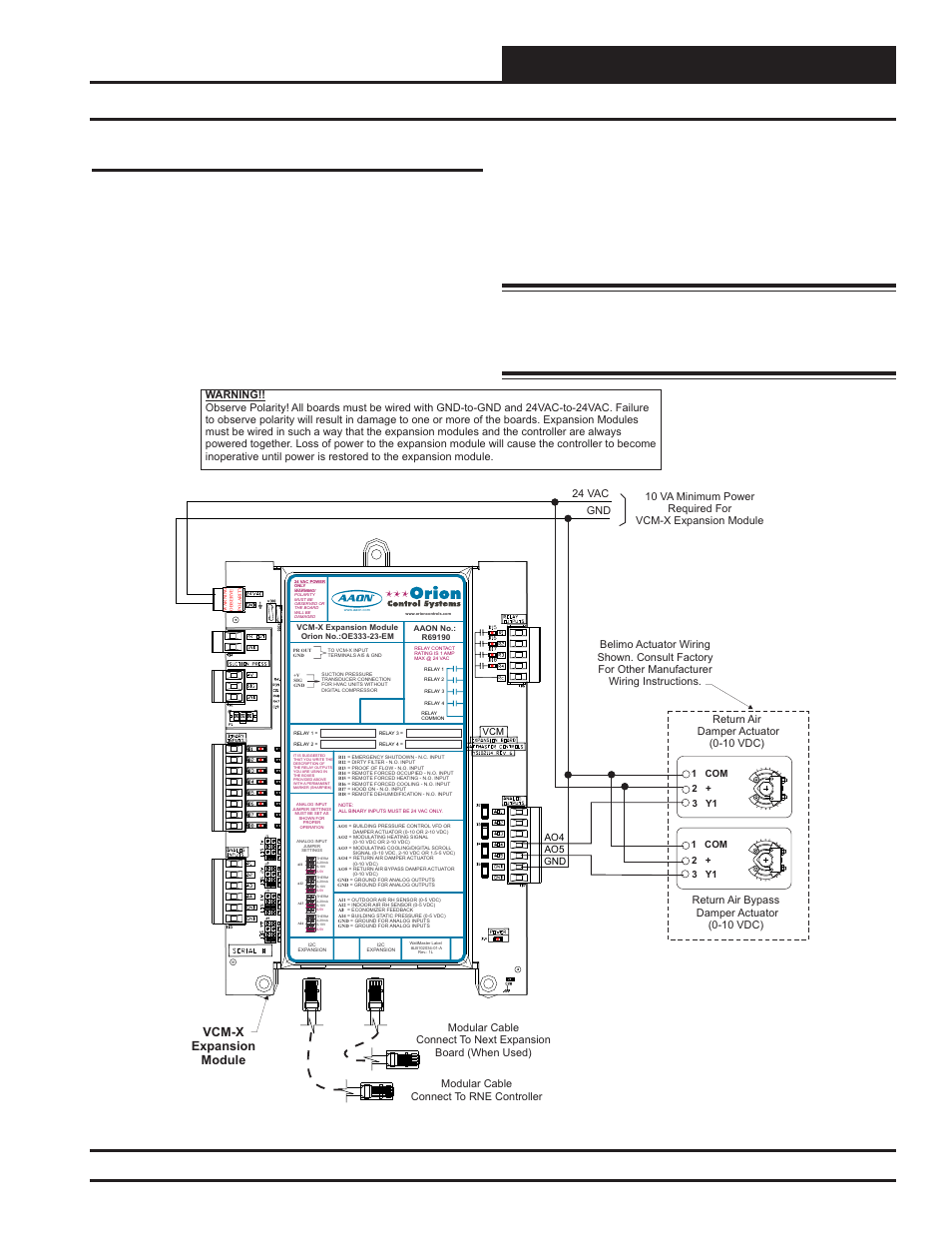

Page 37: 37 return air bypass, Figure 29: return air bypass wiring, The rne controller can be confi gured for aaon, Pac or dpac con- trol schemes. both aaon, Vcm-x expansion module
Installation and wiring, Return air bypass wiring, Rne modular controller field technical guide | 37 return air bypass, Figure 29: return air bypass wiring, The rne controller can be confi gured for aaon, Pac or dpac con- trol schemes. both aaon, Vcm-x expansion module | Orion System RNE Modular Controller User Manual | Page 37 / 88 See also other documents in the category Orion System Hardware:
