POLE MOUNTING
The dome can be mounted on a pole with the small or large direct mounting accessory and a wall mount
bracket.
Items Needed: Tools Needed:
• Dome Camera
• Wall Mount Bracket Accessory
• Small/Large Pole Mount Accessory
• Stainless Steel Straps
• Waterproof Gasket (supplied)
• Stainless Steel Strap Cutter
• Screwdriver

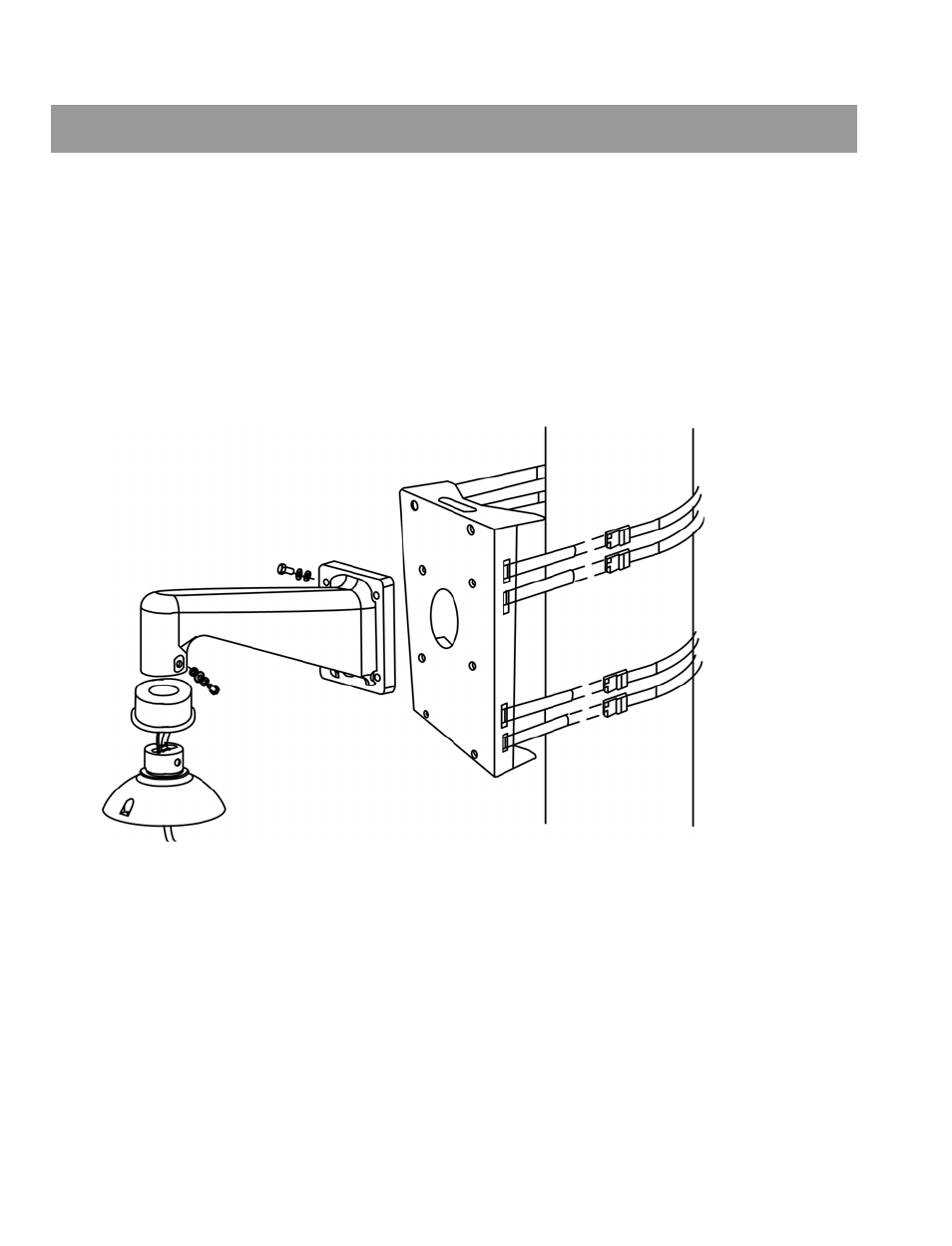

Installation Steps:
1. Fasten the Small/Large Pole Mount to the pole with stainless steel straps.
2. Attach the Wall Mount Bracket to the pole mount with the supplied screws and washers.
3. Attach the Waterproof Gasket to the wall mount bracket.
4. Thread the cables through the wall mount and the top holder.
5. Block the cable entry hole with the supplied sponge.
6. Attach the top holder to the wall mount with the supplied screws and washers and adjust the gasket to the
junction of the wall mount and the top holder.
7. Connect the cables to the dome camera.
8. Attach the dome to the top holder and secure them with the supplied screw.
