29243AC 33

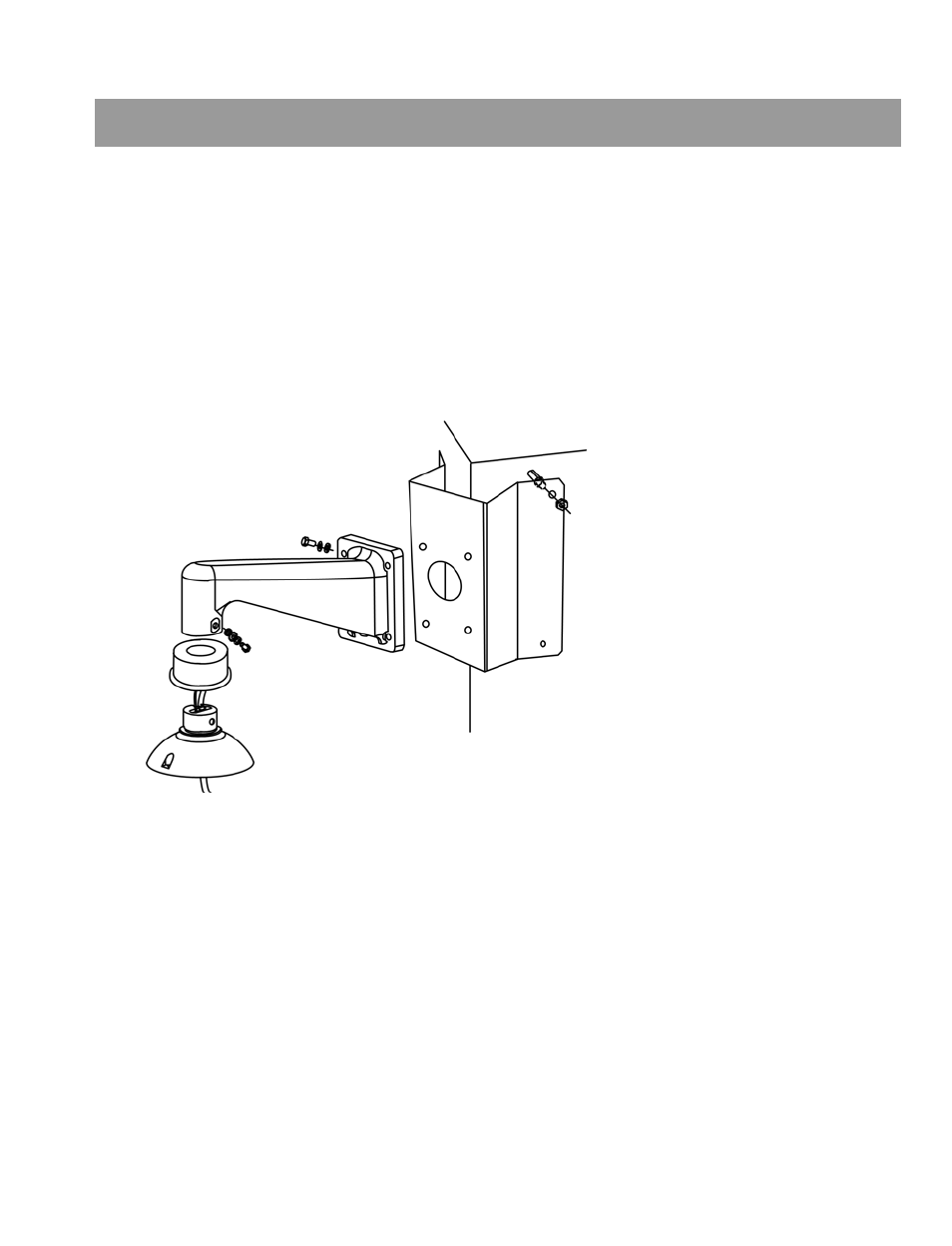

WALL MOUNTING WITH CORNER MOUNT
The corner mount must be used in conjunction with the wall mount bracket.
Items Needed: Tools Needed:
• Dome Camera
• Wall Mount Bracket Accessory
• Corner Mounting Plate
• Waterproof Gasket (supplied)
• Screws and Anchors appropriate for the
mounting surface (not supplied)
• Drill
• Screwdriver
Installation Steps:
1. Cut a cable access hole on the wall. Cables can also be threaded through the cable entry knockout on
the bracket if desired.
2. Secure the Corner Mount plate on the corner wall with the appropriate screws and screw anchors.
3. Attach the Wall Mount Bracket to the corner mount plate with the supplied screws and washers.
4. Thread the cables through Wall Mount Bracket and the top holder.
5. Block the cable entry hole with the supplied sponge.
6. Attach the Waterproof Gasket to the Wall Mount Bracket.
7. Attach the top holder to the Wall Mount Bracket with the supplied screws and washers and adjust the
gasket to the junction of the Wall Mount Bracket and the top holder.
8. Connect the cables to the dome camera.
9. Attach the dome to the top holder and secure them with the supplied screw.
