Operation Section
10

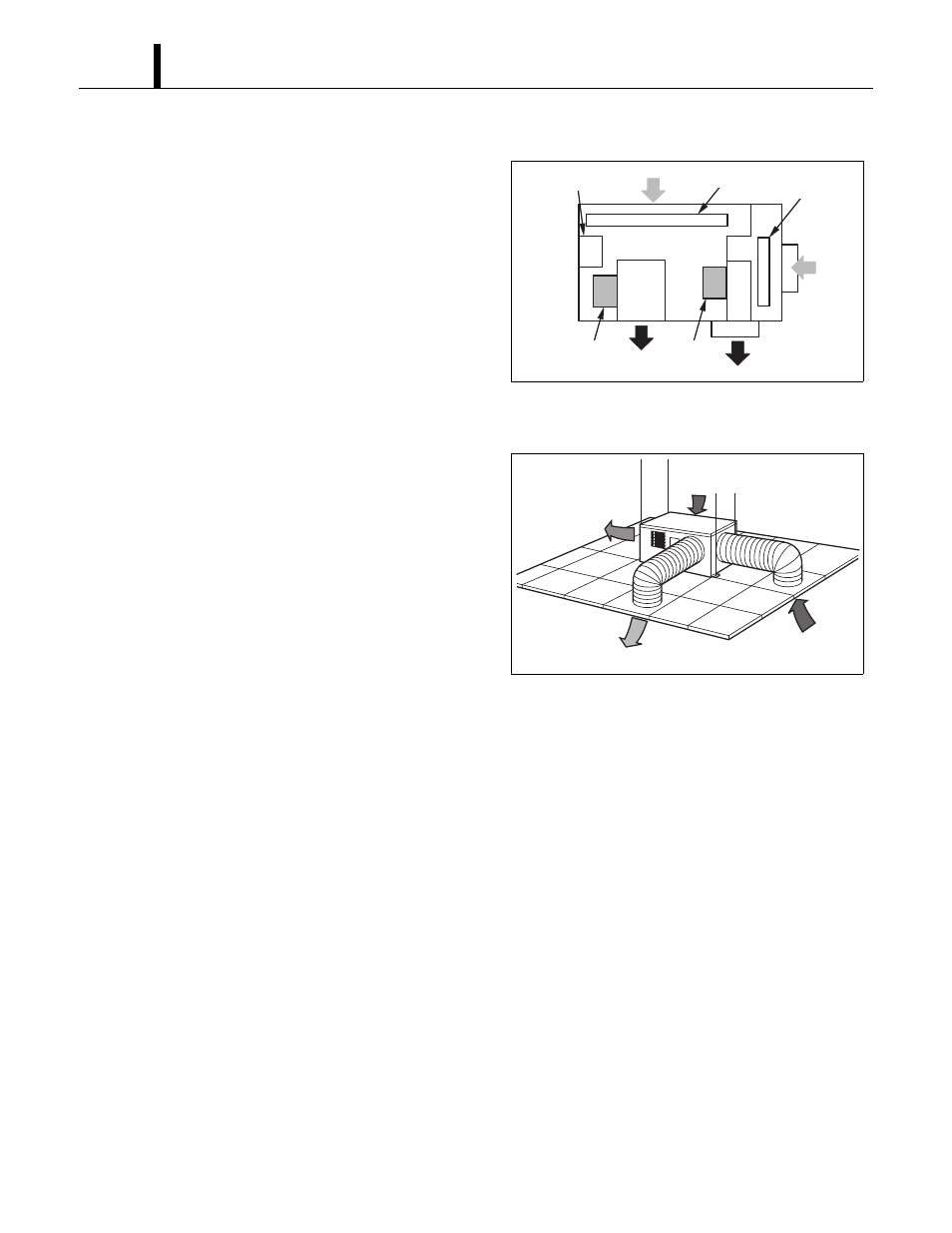

2.4 Basic Construction
• The MovinCool CM 12 is compact in
construction due to the condenser and
evaporator being enclosed in one unit. The
interior of the unit is divided into two sections.
One section contains the evaporator which
cools room interior air. The other section is
comprised of the condenser, compressor and
control box.
2.5 Air Flow
• Air drawn from the rear face passes over the
condenser which extracts heat from the
refrigerant. The hot air is blown out through the
front exhaust air vent. Air taken in from the
right side face is cooled by the evaporator and
then blown through the front cool air duct.
ILL00649-00
Condenser
Control Box
Evaporator
Evaporator
Motor
Condenser
Motor
I002841
Condenser
Intake
Room
Air Intake
Cool Air
Supply
(Evaporator)
Condenser
Exhaust
