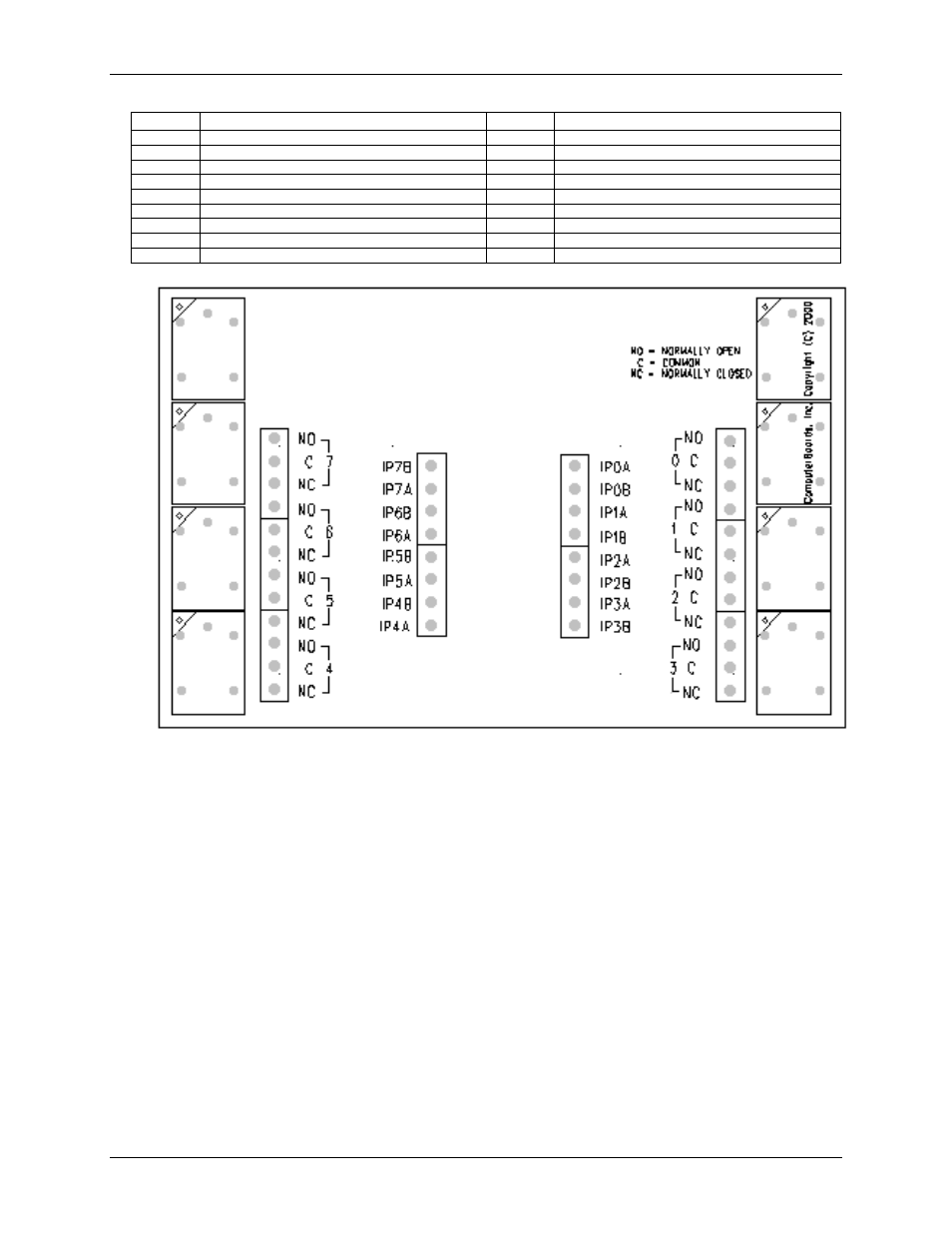

Switch & Sense 8 User's Guide Template Specifications
33
Pin Signal Name Pin Signal name
1-NO Relay 1 Normally Open contact 5-NO Relay 5 Normally Open contact
1-C Relay 1 Common contact 5-C Relay 5 Common contact
1-NC Relay 1 Normally Closed contact 5-NC Relay 5 Normally Closed contact
2-NO Relay 2 Normally Open contact 6-NO Relay 6 Normally Open contact
2-C Relay 2 Common contact 6-C Relay 6 Common contact
2-NC Relay 2 Normally Closed contact 6-NC Relay 6 Normally Closed contact
3-NO Relay 3 Normally Open contact 7-NO Relay 7 Normally Open contact
3-C Relay 3 Common contact 7-C Relay 7 Common contact
3-NC Relay 3 Normally Closed contact 7-NC Relay 7 Normally Closed contact
