B. Mounting in enclosure – Refer to Figure 3 .
1) Align tabs on assembly with slots on rail of enclosure.
2) Insert tabs by angling assembly away from the back of the enclosure and sliding forward.
3) Rotate the assembly and insert fasteners on assembly into corresponding holes on rail of
enclosure. (Plunger must be in the pulled out position for fastener to engage hole.)
4) Push plunger in to lock module in place. Pull on assembly to assure assembly is locked
properly in place.

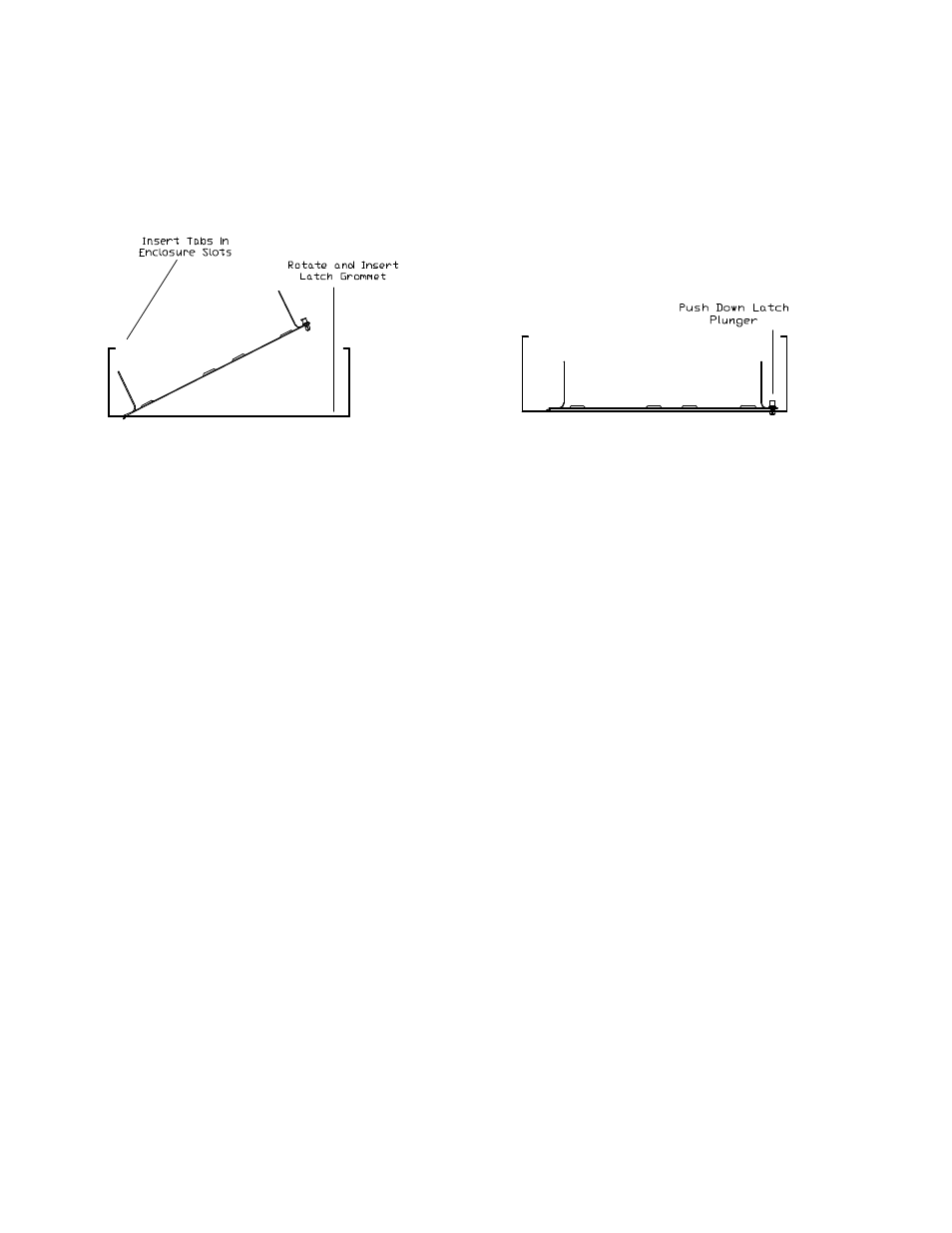

Figure 3
