Legrand 40N2 Series CableSmart Nonmetallic Surface Raceway System User Manual
Page 5
WIRE SIZE
O.D. (Approx. Dia.)
NO. OF CONDUCTORS
THHN/THWN
Inches [mm]
COMP.
COMP.
MAX
BOTH
A
B
COMP.
POWER WIRING
14 AWG
0.111
[2.8]
20
20
28
WITHOUT DEVICES
12 AWG
0.130
[3.3]
18
18
36
10 AWG
0.164
[4.2]
17
17
24
8 AWG
0.216
[5.5]
15
15
20
6 AWG
0.254
[6.5]
5
5
10
CABLE
CATEGORY/
O.D.
Section C
Section D
TYPE
DESIGNATION
Inches
[mm]
20% Fill
3
40% Fill
4
20% Fill
3
40% Fill
4
UNSHIELDED
4-pair, 24 AWG Cat. 3 UTP
0.190
[4.8]
22
45
12
24
TWISTED PAIR
4-pair, 24 AWG Cat. 5e UTP
0.210
[5.3]
18
37
9
19
4-pair, 24 AWG Cat. 6 UTP
0.250
[6.3]
13
26
6
13
TELEPHONE
2-pair, 24 AWG
0.140
[3.6]
41
83
22
44
3-pair, 24 AWG
0.150
[3.8]
36
72
19
38
4-pair, 24 AWG
0.190
[4.8]
22
45
12
24
25-pair, 24 AWG
0.410
[10.4]
4
9
2
5
COAXIAL
RG58/U 0.195
[5.0]
21
43
11
22
RG59/U
0.242
[6.1]
14
28
7
14
RG62/U
0.242
[6.1]
14
28
7
14
RG6/U 0.270
[6.9]
11
22
5
11
TWINAXIAL
100 Ohm
0.330
[8.4]
7
15
4
8
SHIELDED
TYPE 1
0.390
[9.9]
5
10
2
5
TWISTED PAIR
TYPE 2
0.465
[11.8]
3
7
2
4
TYPE 3
0.245
[6.2]
13
27
7
14
FIBER
Mini Zip Cord
0.079 x 0.157
[2 x 4]
51
103
27
55
Zip Cord
0.118 x 0.236
[3 x 6]
23
46
12
24
Round 4 Strand Fiber
0.187
[4.8]
23
46
12
24
Round 6 Strand Fiber
0.256
[6.5]
12
25
6
13

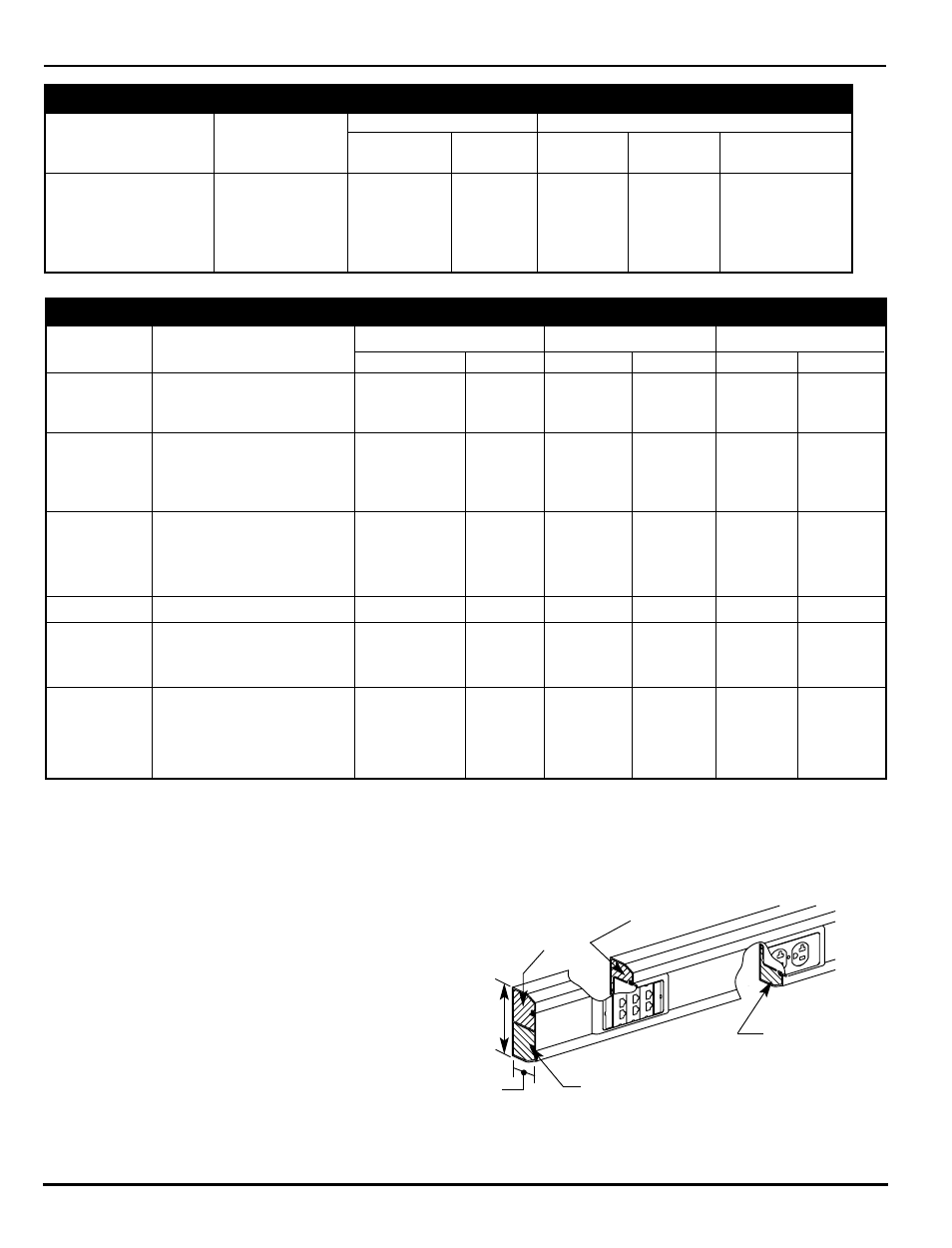

40N2 RACEWAY WIRE FILL CAPACITIES FOR DATA / COMMUNICATIONS
Section A
3.22 in.
2
[2080mm
2
]
Section B
1.71 in.
2
[1100mm
2
]
Section C
3.22 in.
2
[2080mm
2
]
Section D
1.71 in.
2
[1100mm
2
]
4.0"
[102mm]
2.0"
[51mm]
1. Cross-sectional area reduced due to 40N2F55 C-Box.
2. No. of conductors are reduced when using both channels for power.
3. 20% cable fill calculated to approximate reduction in cable capacity due to connectors
mounted within raceway and fittings that may restrict cross-sectional area.
4. 40% cable fill is the maximum designed cable fill based on TIA/EIA 569-A.
40N2 RACEWAY WIRE FILL CAPACITIES FOR POWER
