GASBOY Series 580 Pumps
6-14 03/07/03

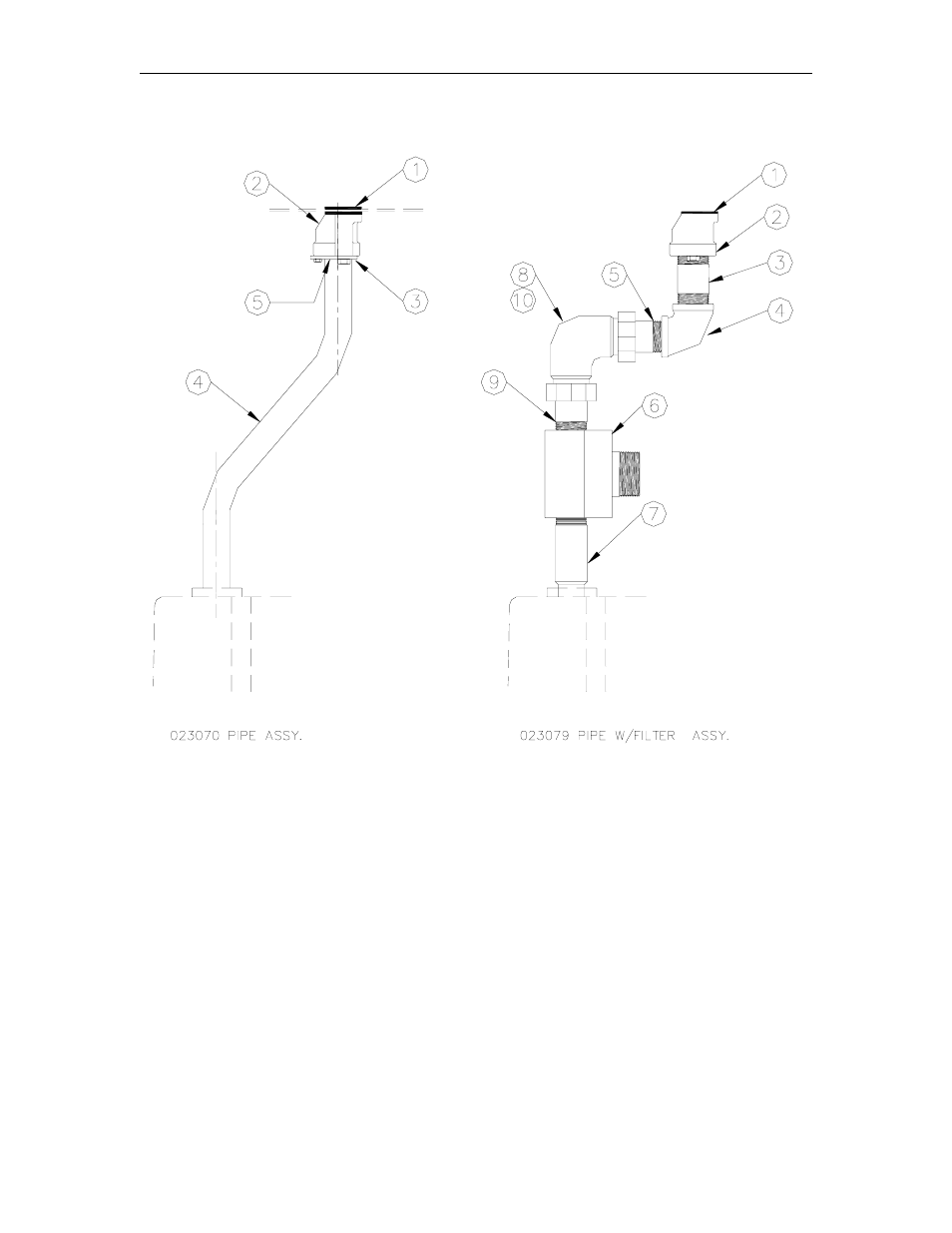

582/583 PIPING
Item Part No Description Item Part No Description
1 027055 Gasket-Inlet/Outlet 1 027055 Gasket-Inlet/Outlet
2 015496 Flange-Meter Inlet 2 003650 Flange, 1”
3 015495 Flange Plate-Meter Inlet 3 044525 Pipe TBE, 1 x 3
4 015497 Piping-Pump Outlet 4 024895 Elbow, 1” x 90
5 023091 O-Ring 5 045235 Pipe TOE, 1 x 4
6 003087 Adapter, 1” Cimtek 400 Filter
7 015498 Coupling Nipple, 4-3/4
8 024910 Elbow, Dresser 1 x 90
9 045218 Pipe TOE, 1 x 2-1/2
10 054207 Dresser Elbow Seal, 1”
