Chapter 2 Installation Instructions
16

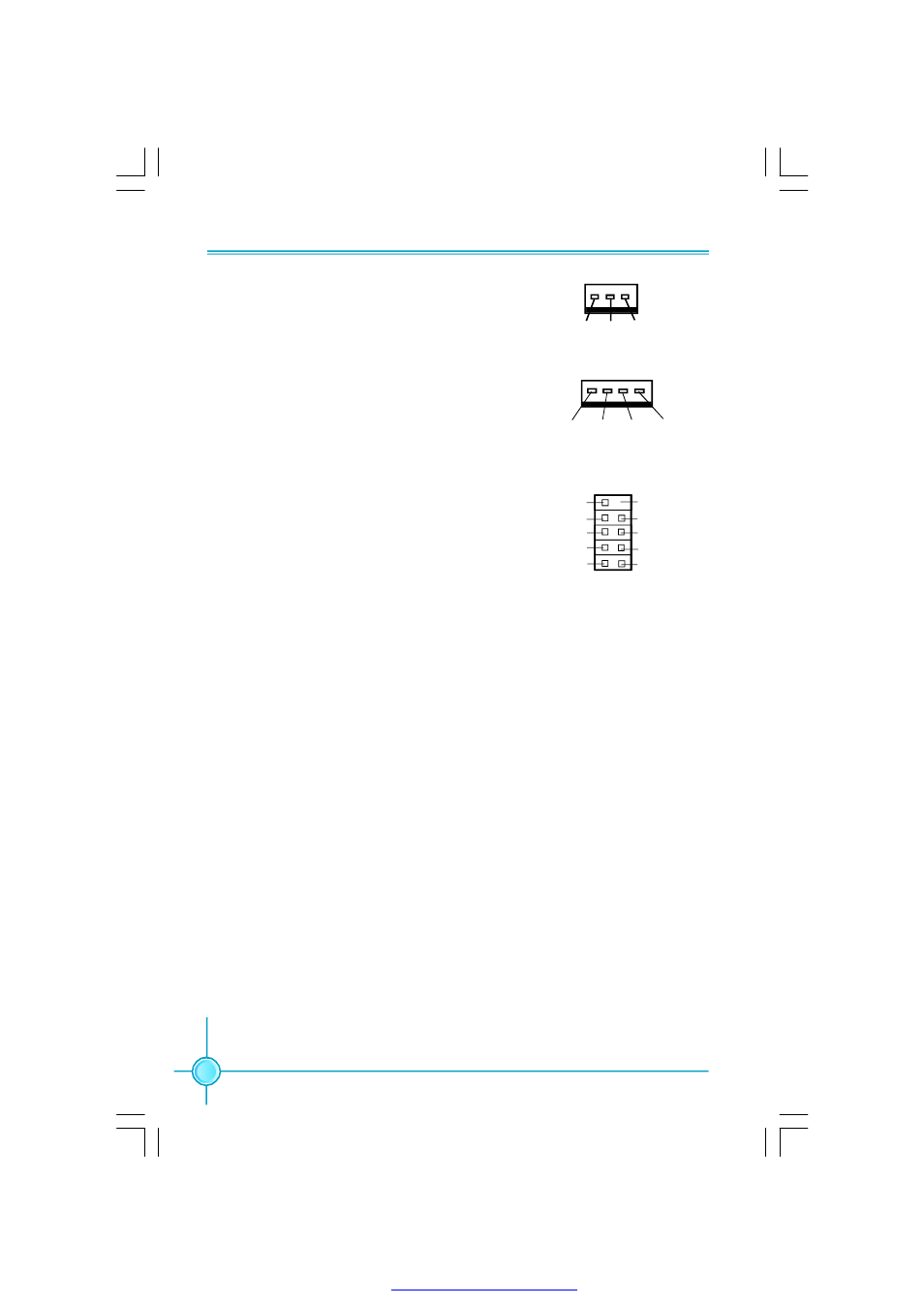

Fan Connectors: CPU_FAN, SYS_FAN1/2/3/
4,FAN1/2
there are seven fan c on nectors on this
motherboard.The fan speed can be detected
and viewed in “Hardware Health Configure”
section of the CMOS Setup. These fans will be
automatically turned off after the system en-
ters S3, S4 and S5 mode.
CPU_FAN
SENSE GND
1
POWER CONTROL
SYS_FAN1/2/3/4,FAN1/2
+12V GND SENSE
1
USB Connectors: F_USB1/2/3
Besides four USB ports on the rear panel,the
series of motherboards also have three 10-pin
connectors on board which may connect to the
front panel USB cable to provide additional six
USB ports.
F_USB 1/2/3
1
5V_DUAL
D-
D+
D-
GND GND
D+
NC Empty
5V_DUAL
