Foxconn N68S7AA-8EKRS2H User Manual
Page 15
Chapter 2 Installation Instructions
7
CPU
This motherboard supports Intel
®
Core
TM
2 Quad,Core
TM
2 Extreme,Core
TM
2 Duo
processors in an LGA775 package with a Front Side Bus (FSB) of 1333/1066/
800MHz.
For the detailed CPU support list on this motherboard, please visit the
website: http://www.foxconnchannel.com
Installation of CPU

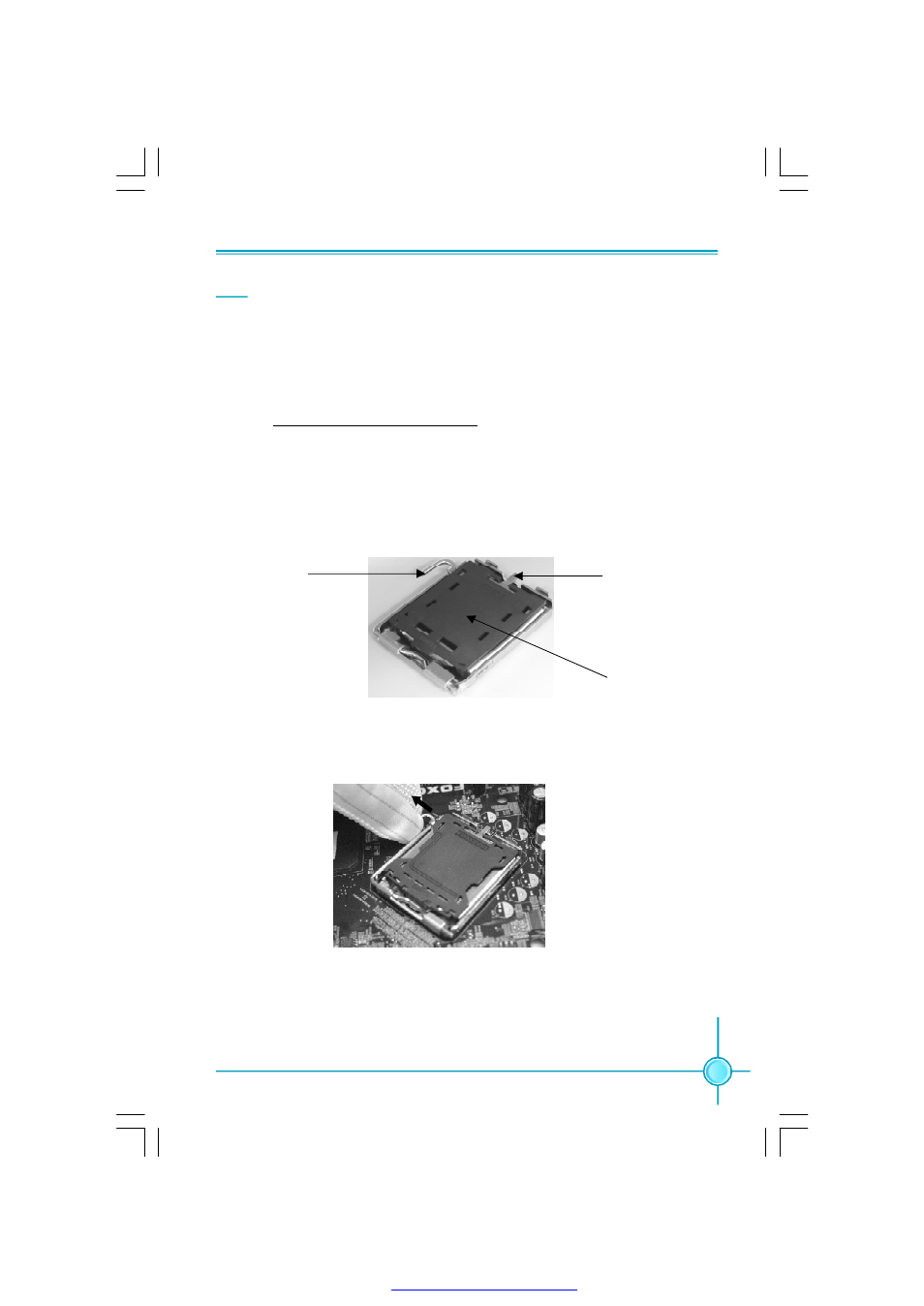

Below is the CPU socket illustration. Follow these procedures to install a CPU.
Load lever
Load plate
Protective cover
1. Use thumb and forefinger to hold the hook of the load lever and pull the lever
down and away from socket to unlock it. Lift the load lever.
2. Push down the rear tab with your forefinger to bring the front end of the load
plate up slightly. Open the load plate with thumb. Be careful not to touch the
contacts.
