Chapter 2 Installation Instructions
2 4

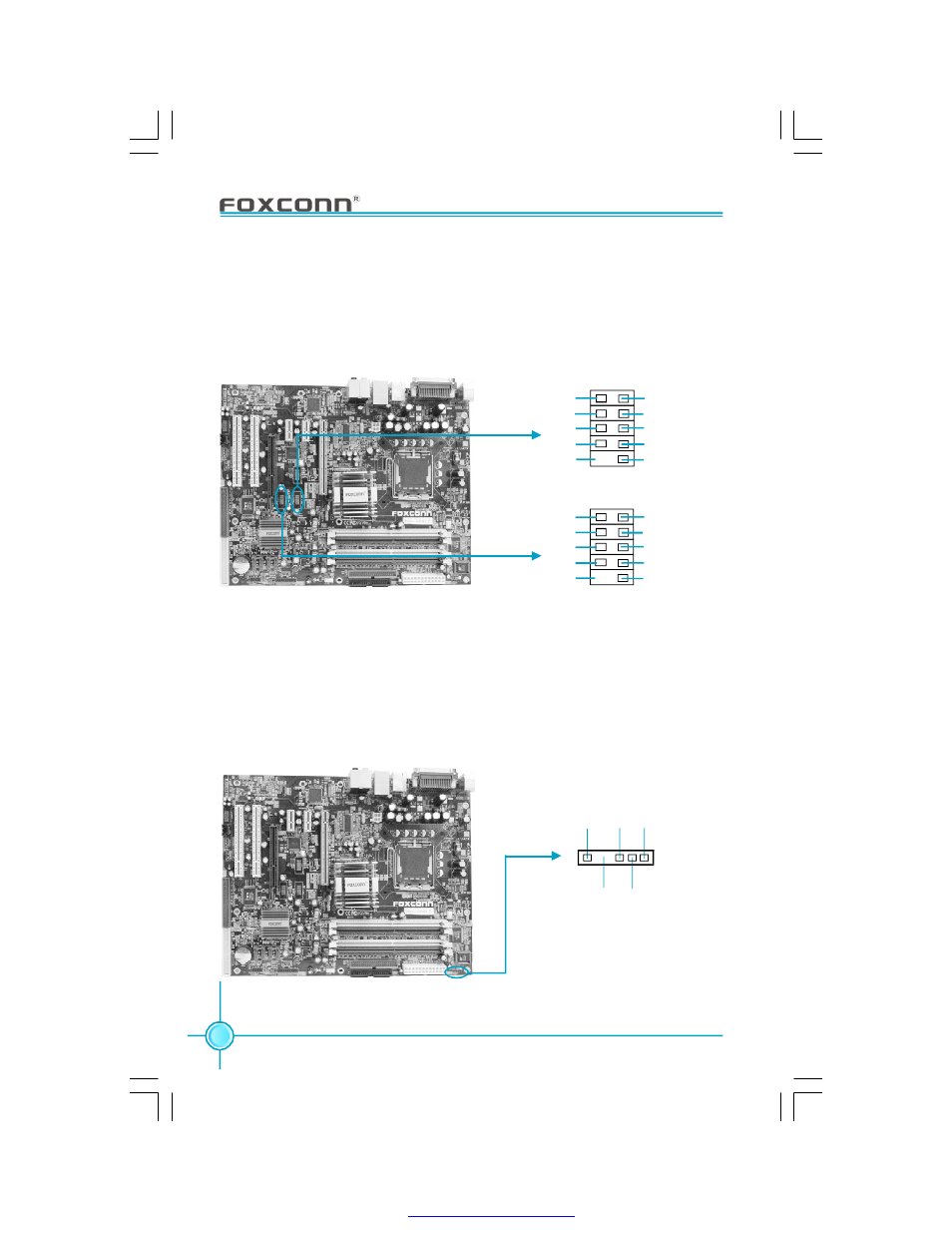

USB Connectors: F_USB1, F_USB2
Besides four USB ports on the rear panel, the series of motherboards also
have two 10-pin connectors on board which may connect to front panel USB
cable(optional) to provide additional four USB ports.
F_USB 1
F_USB 2
D7-
VCC
D6+
D6-
E mpt y
GND
NC
VCC
GND
D7+
1
D5-
VCC
D4+
D4-
E mpt y
GND
NC
VCC
GND
D5+
1
IrDA Connector: IR
This connector supports wireless transmitting and receiving device. Before using
this function, configure the settings of IR Mode from the “Integrated Peripherals”
section of the CMOS Setup.
IR
+5V
GND
IRRX IRTX
Empty
1
