Page 24
17
2
17

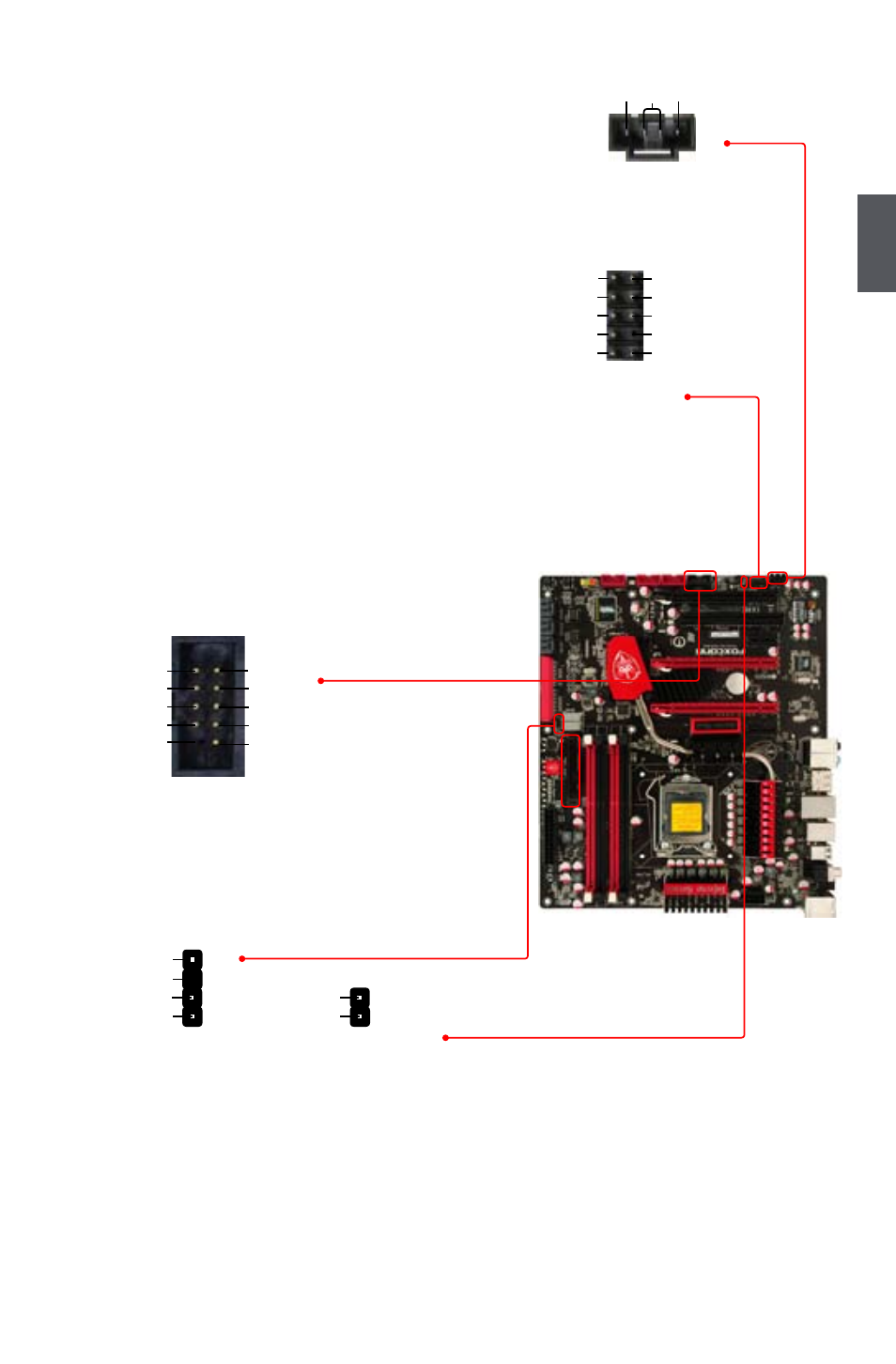

Audio Connector: CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
Audio Connector: f_AUDIo
The audio connector supports HD Audio standard. It
provides the Front Audio output choice.
1394a Connector: f_1394 (only for Inferno Katana)
The 1394a expansion cable can be connected to either
the front (provided that the front panel of your chassis
is equipped with the appropriate interface) or real panel
of the chassis.
S/PDIf Connector: SPDIf_oUT2/3
The connector is used for S/PDIF output.
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1 2
10
9
F_AUDIO
PORT2_R
CD_IN
CD_L GND CD_R
1
SPDIF_OUT
SPDIF_OUT3
GND
1
2
SPDIF_OUT
+5V
EMPTY
SPDIF_OUT2
GND
1
2
3
4
GND
+12V
TPA-
TPB-
GND
TPB+
+12V
GND
TPA+
EMPTY
1 2
10
9
F_1394
