1

6

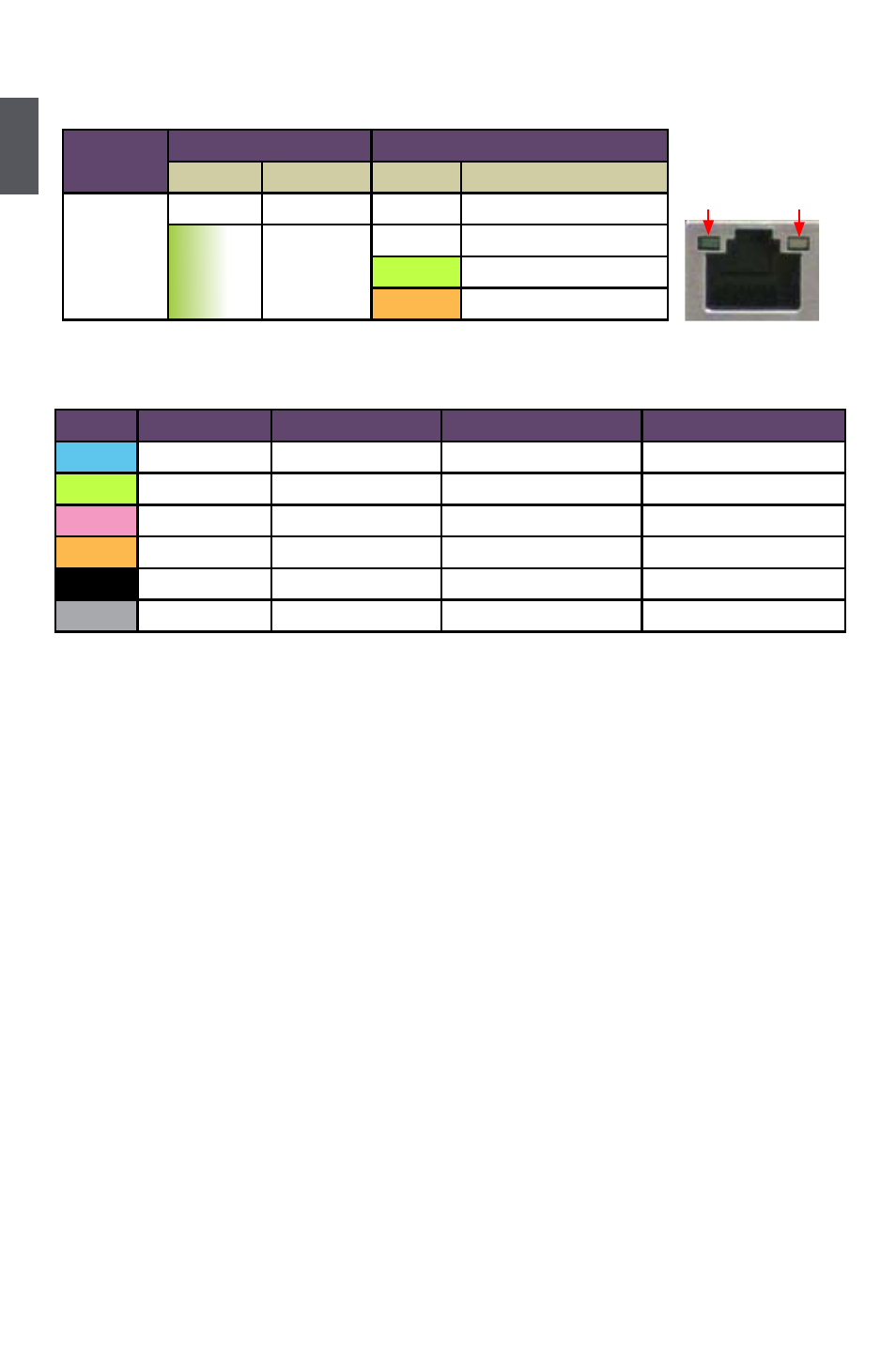

8. RJ-45 lAN Port

The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.

9

. Audio Ports

For the definition of each audio port, please refer to the table below :

Port

2-channel

4-channel

5.1-channel

7.1-channel

Blue

Line In

Line In

Line In

Line In

Green

Line Out

Front Speaker Out

Front Speaker Out

Front Speaker Out

Pink

Microphone In

Microphone In

Microphone In

Microphone In

Orange

-

-

Center/Subwoofer Out Center/Subwoofer Out

Black

-

Rear Speaker Out

Rear Speaker Out

Rear Speaker Out

Grey

-

-

-

Side Speaker Out

LAN Type

Left: Active

Right: Link

Status

Description

Status

Description

1000M

Off

No Link

Off

No Link

Green

Blinking

Data

Activity

Off

10Mb/s Connection

Green

100Mb/s Connection

Orange

1000Mb/s Connection

Active

LED

Link

LED
