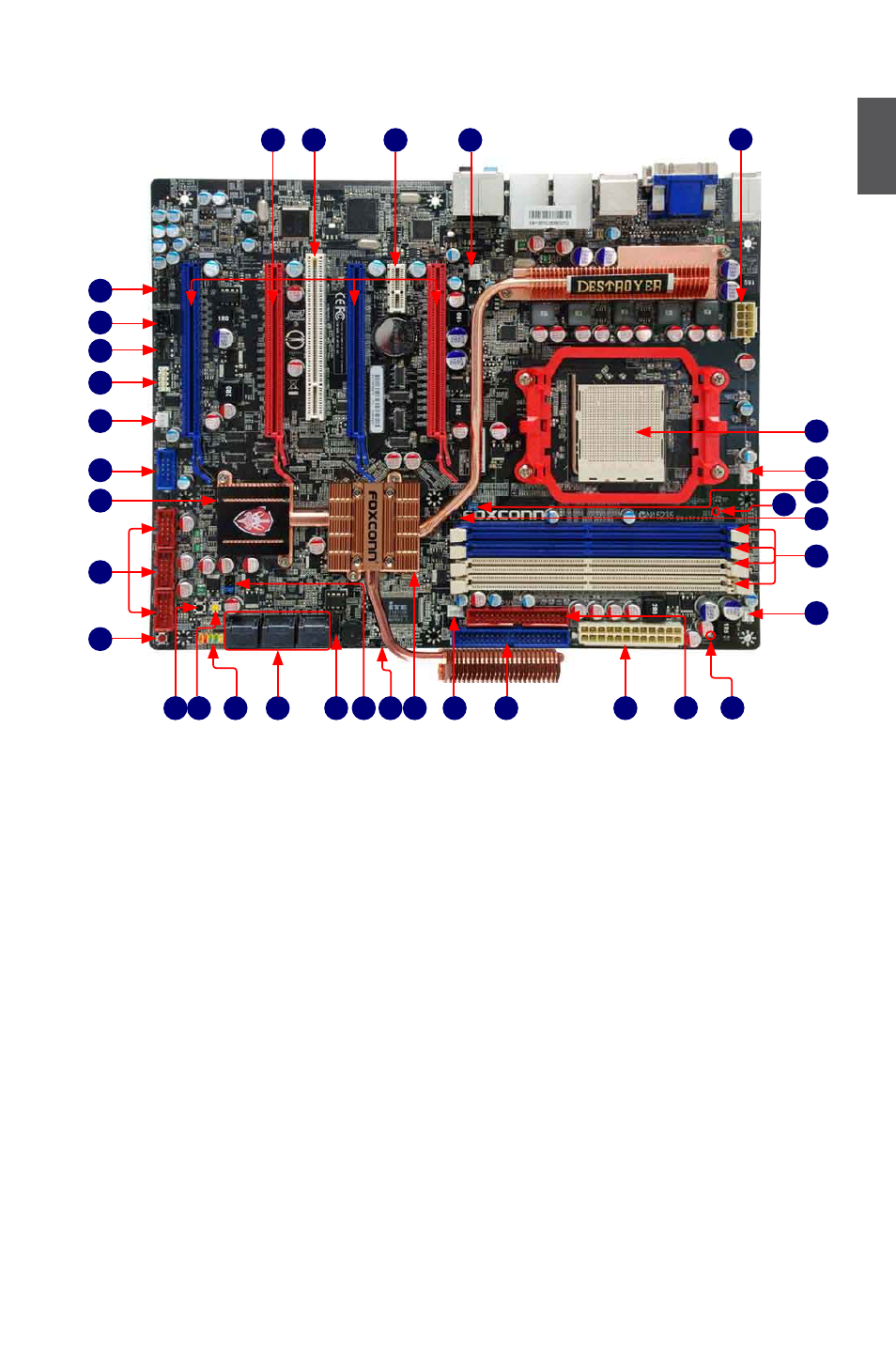

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 8-pin ATX 12V Power Connector
2. SYS_FAN Headers
3. PCI Express x1 Slot
4. PCI Slot
5. PCI Express x16 Slots
6. Front Audio Connector
7. CD_IN Connector
8. S/PDIF Out Connector
9. COM1 Connector
10. 1394a Connector
11.
Chipset: NVIDIA nForce 200
12. Front USB Connectors
13. Power On Button
14. Reset Button
15. Clear CMOS Button
16. Front Panel Connector
17. SATA Connectors
18. Speaker Connector
19. BIOS_SELECT Jumper
20. IrDA Connector
21. Chipset: NVIDIA nForce 780a SLI
22. Power FAN Headers
23. IDE Connector
24. 24-pin ATX Power Connector
25. Floppy Connector
26.
+5V Standby LED
27. DDR2 DIMM Slots
28. Chassis Intrution Alarm Header
29. DRAM Power LED
30. Clear CMOS Jumper
31. CPU_FAN Header
32. CPU Socket
