Page 30

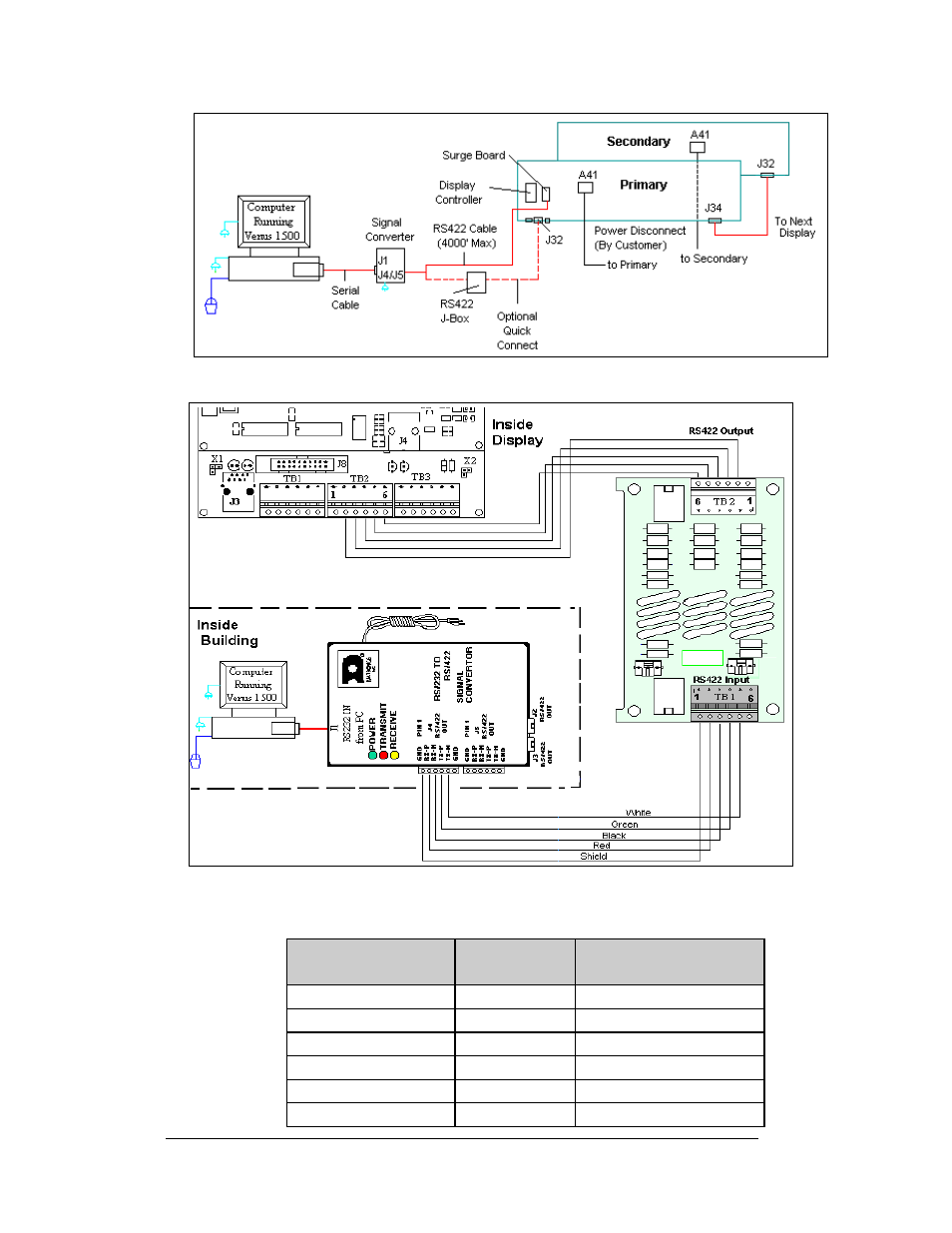

Figure 25: RS422 Display Layout

Figure 26: Signal Converter to Surge Board Assembly

Signal Converter to Surge Board Assembly

Signal Converter

(J4/J5)

Field Cabling

Surge Board Assembly

TB1 (RS422 In)

Pin 1 (GND)

Shield

Pin 1 (A GND)

Pin 2 (RX-P)

Red

Pin 2 (D1OUT-P)

Pin 3 (RX-N)

Black

Pin 3 (D1OUT-N)

Pin 4 (TX-P)

Green

Pin 4 (D1IN-P)

Pin 5 (TX-N)

White

Pin 5 (D1IN-N)

Pin 6 (GND)

Pin 6 (A GND)

Electrical Installation

3-12
