User Manual for Commercial Series Net DVR
Page
23
Total
121
【ENTER】key to enter into the secondary menu. For example, move the “Active Frame” to the
“Image” icon, press

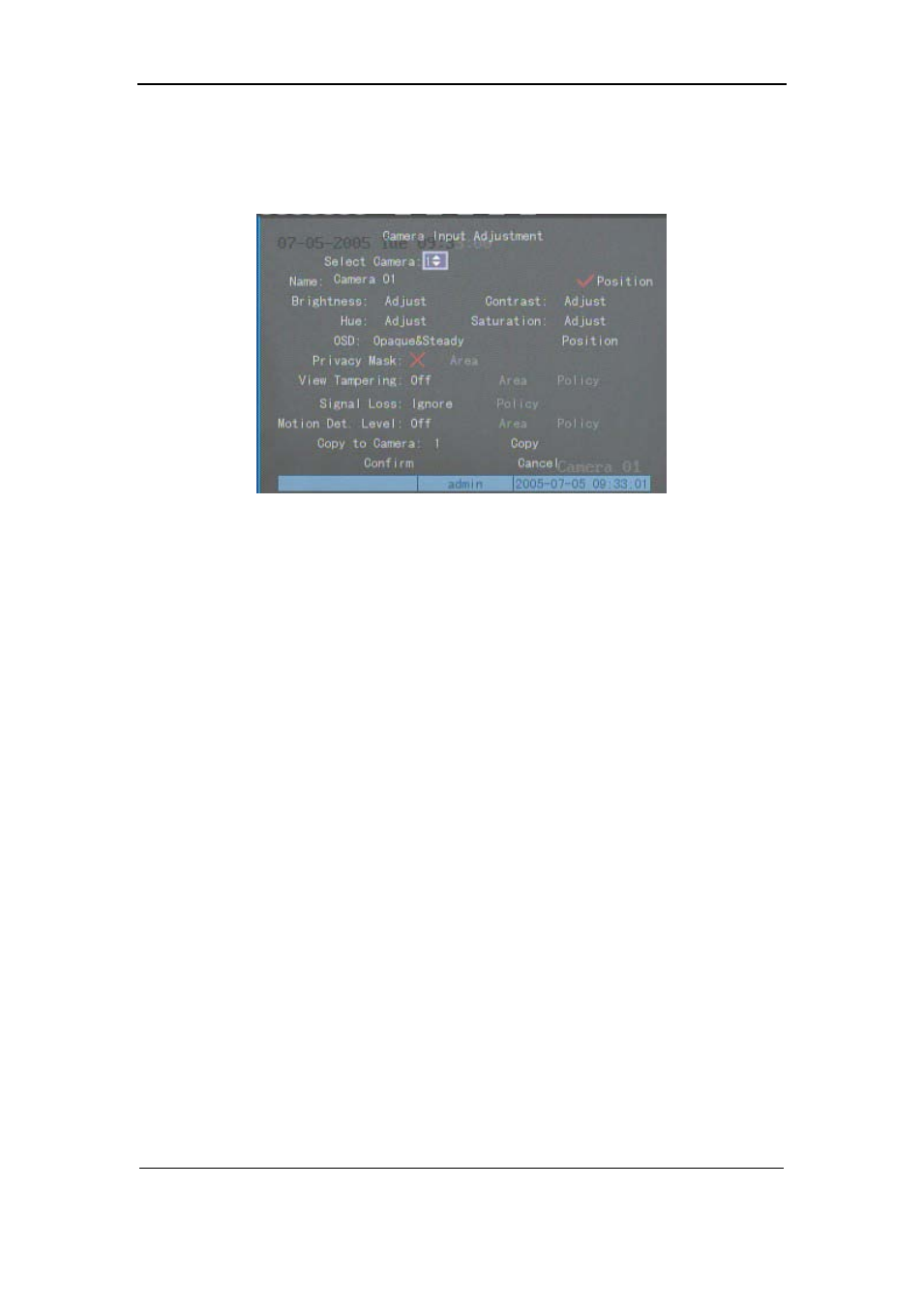

【ENTER】to enter into the secondary menu show below:
Each menu contains different kinds of items. There is a rectangular frame called “Active
Frame” which is pointing to the selected item. This “Active Frame” can be moved by
【】or【】
keys. There are such kinds of menu items:
a)
Check Box: Provide 2 options, “” means enable and “
×” means disable. You can use
【ENTER】or【EDIT】key to switch over.
b) List Box: Provides more than 2 options. However, only one of them can be selected. You
can use
【↑】and【↓】to select one option. For example, on the right side of “Select
Camera”, there is a list box for you to select one camera.
c)
Edit Box: This is for you to input characters. Press
【EDIT】key to enter into edit status,
you can input characters as follows:
i.
Press
【A】key to select number, upper case, lower case or symbols;
ii.
Use
【】and【】keys to move cursor;
iii.
Use
【EDIT】key to delete the charcter in front of cursor;
iv.
Press
【ENTER】or【ESC】to exit edit.
d) Button: Excute a special function or enter into next sub-menu. For example, press
“Policy” button to enter into sub-menu. Press
【Confirm】to save parameters and return
