Chapter 3 Operational Instructions

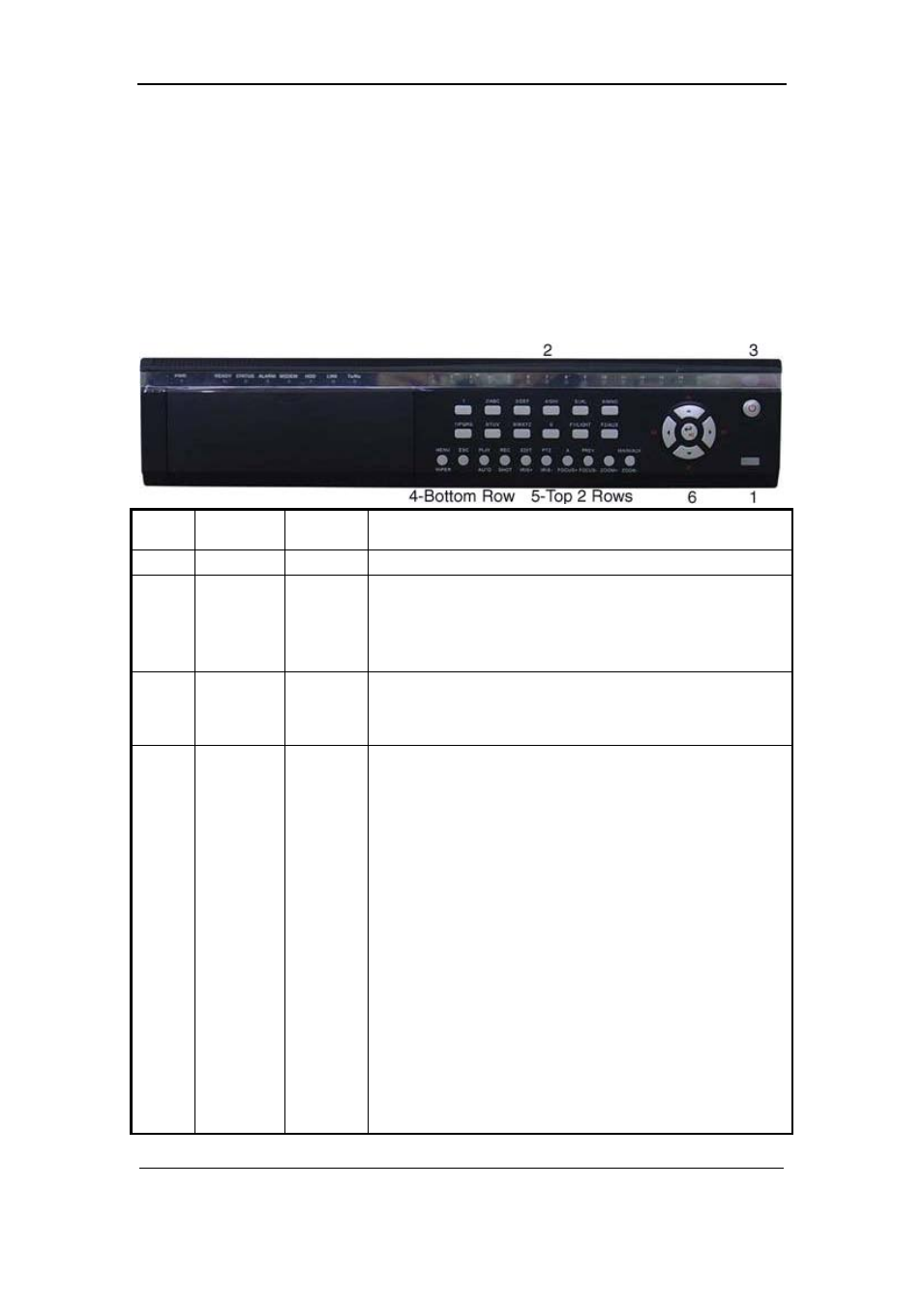

3.1.1 8-ch QSD42208 Front Panel
Index Type Name Description
1 USB Port USB flash drive, HDD, DVDRW/CDRW or Mouse
2 Status
Lamps
1-8 Shows channel 1-8 status. Green means recording; Red means
network transmission; Orange means recording and network
transmission. Lamp twinkle and red means the corresponding
HDD has error.
3 POWER POWER Device switch with power indicator lamp. Green means DVR is
working; Red means DVR is powered off; No light means no
power is supplied.
4 Compound
Keys
MENU
ESC
PLAY
REC
EDIT
PTZ
A
1. Switch preview mode into menu;
2. Brush control short key
【WIPER】.
Cancel and back to parent menu.
1. Local playback;
2.
【AUTO】in PTZ mode.
1. Manual record;
2.
【SHOT】in PTZ mode (adjust preset).
1. In edit state, delete current cursor character;
2.
【IRIS+】 in PTZ control;
1. Select  or
× to enable or disable.
1. Enter into PTZ control mode;
