ToS Switching
B-20 Vipersat CDM-570/570L User Guide
Example Implementations
ToS Switching Per Device
For applications that require an increase in SCPC bit rate for each application
device, a separate ToS value must be assigned to each device individually. This
provides granular switching for each device and also allows a mesh connection

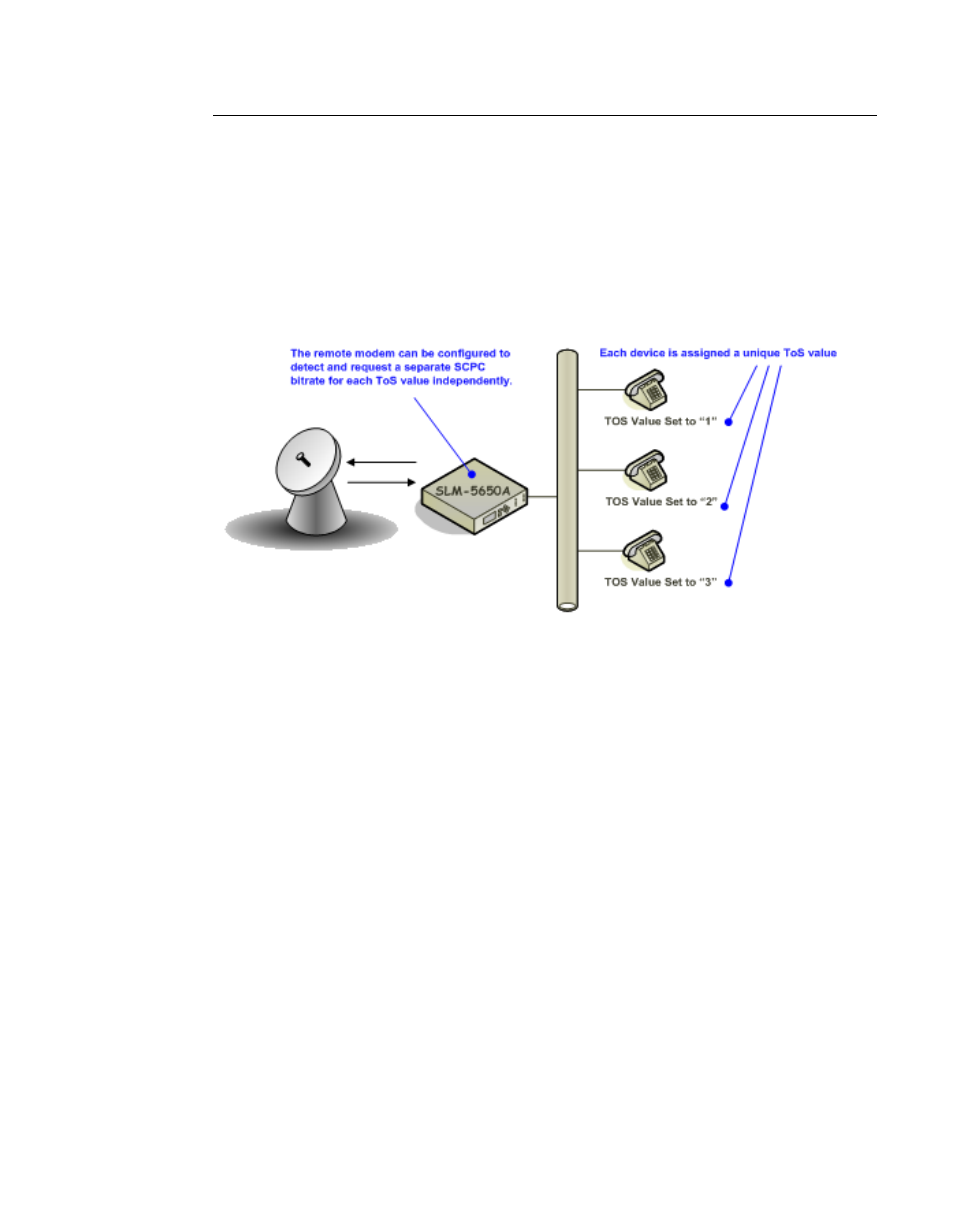

to be established for each device independently. Figure B-9 depicts a per device
configuration example.
Figure B-9 Per Device ToS Switching Example
ToS Switching Per Traffic Type
For applications that only require a single SCPC bit rate, regardless of the
number of active application devices, the same ToS value can be assigned to
each device. This method does not provide granular switching for each device
and a mesh connection will only be set up for the first device that sends packets
with the designated ToS value. Figure B-10 depicts a per traffic type configura-
tion example.
