- C 45 -
Short Seam Automat 2110-4 / 2111-4 Working Instructions Beisler Automated Sewing Equipment
C.5
Maintenance

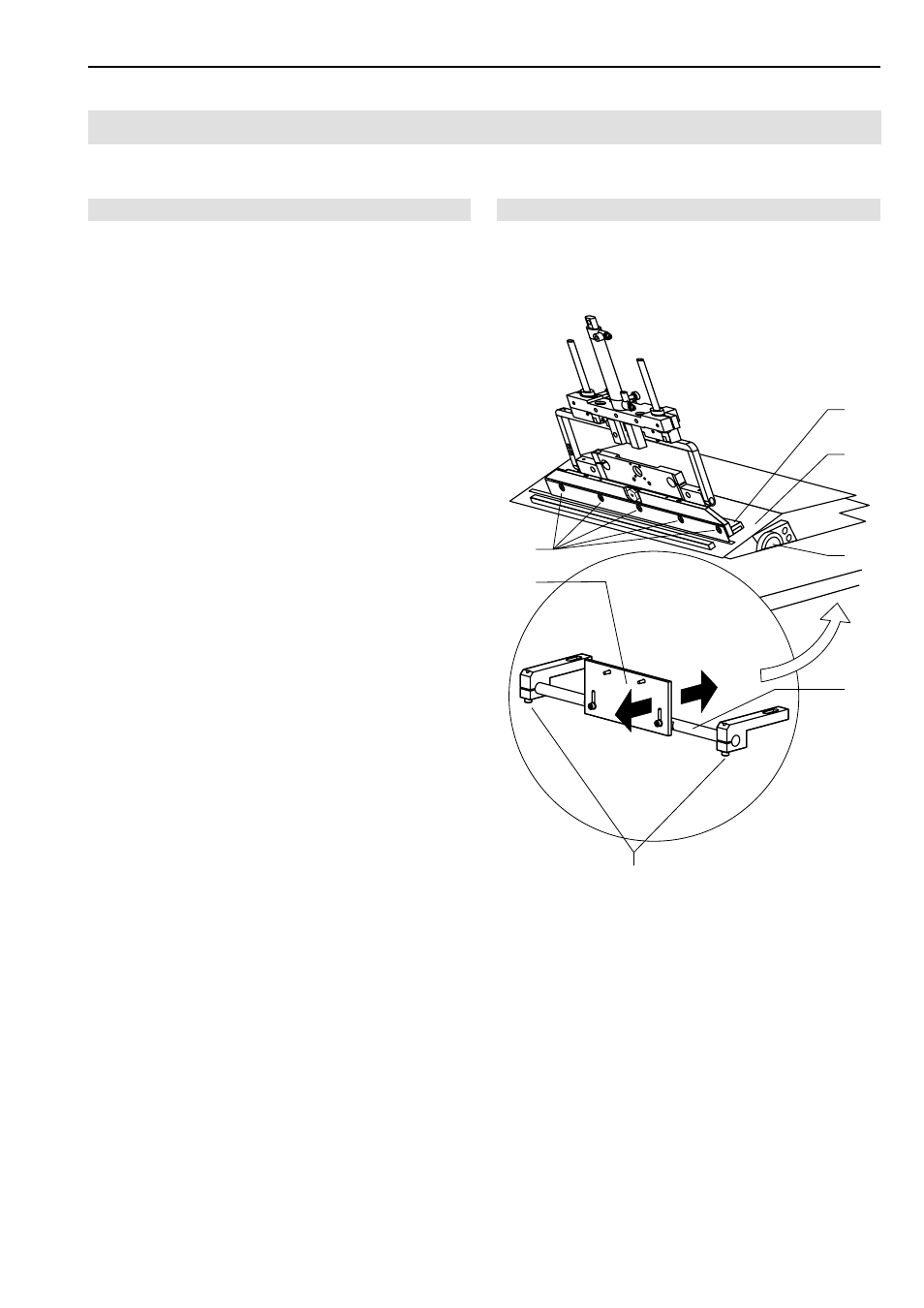

Fig. 16
Fig. 16
C.5.5 Machine set-up
Folder to pick-up plate alignment:
To ensure that the folder can pick up the pocket edge even-
ly, the folder must lie upon the pick-up plate along its entire
length.
Pick-up plate inclination adjustment:
1. Fig. 16: Fasten pick-up plate by rotating handwheel
3 completely to minus range.
2. Move folder
1 to pick-up plate 2 using input/output
control functions:
• Move folder to right.
• Lower folder.
3. Adjust pick-up plate inclination so that the folder lies
absolutely even on the pick-up plate by loosening the
two retaining screws
5 of the pick-up plate bracket
6 on the worktable underside and rotate the bracket
at the holder
4.
4. Tighten retaining screws.
5. Readjust folder rail
1. Slightly loosen retaining screws
7 and depress folder rail evenly onto pick-up plate.
6. Tighten retaining screws
7.
7
6
5
2
4
1
3
