Short Seam Automat 2110-4 / 2111-4 Working Instructions
- C 44 -
Beisler Automated Sewing Equipment
C.5
Maintenance
C.5.5 Machine set-up
Folder to clamp rail alignment:
The lowered folder must be absolutely parallel to and in
slight contact with the clamp rail along its entire length.
Folder position adjustment:
1. Move main clamp to position using input/output con-
trol functions:
Move main clamp to front stop point.
Lower main clamp.
2. Move folder to position using input/output control func-
tions:
Rotate folder.
Close folder clamp.
Lower folder.

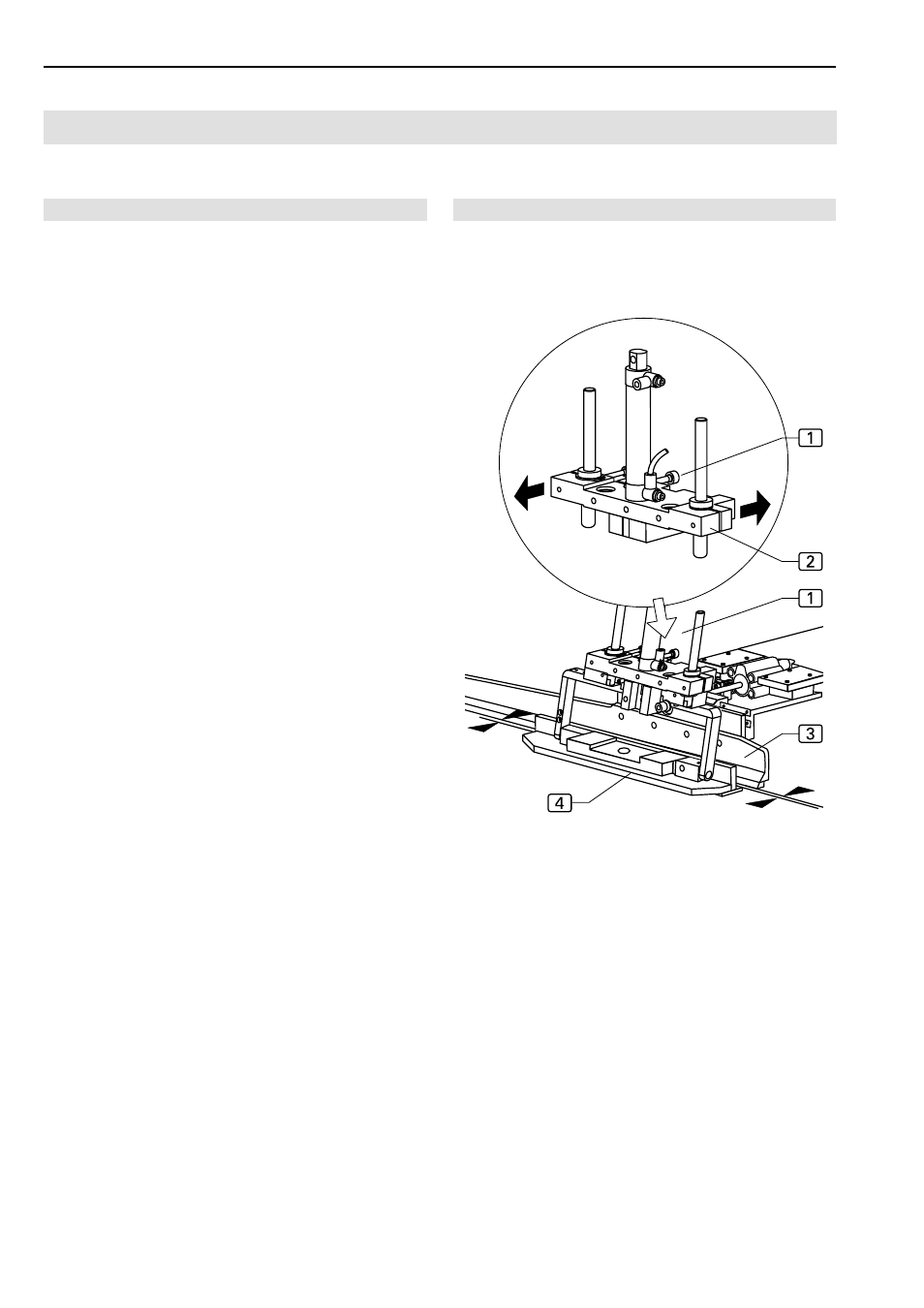

3. Fig. 14: Check parallel alignment of folder clamp
4
to clamp rail
3. To change the folder clamp alignment:
4. Loosen lock screw
1.
5. Rotate folder clamp bracket
2 to parallel position.
6. Tighten lock screw
1.
Fig. 14
Fig. 14
