Short Seam Automat 2110-4 / 2111-4 Working Instructions Beisler Automated Sewing Equipment
B.1
Description of the machine

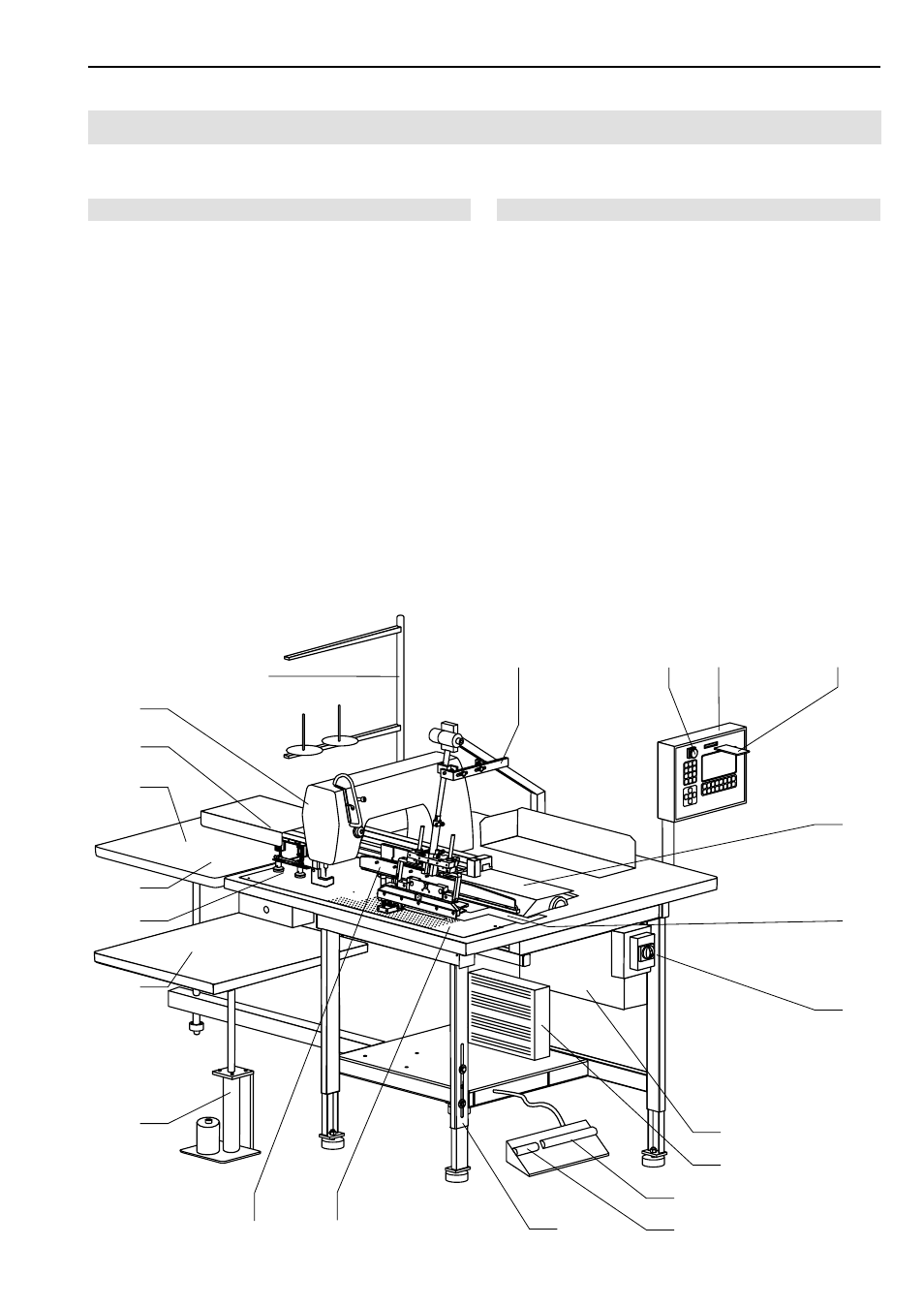

Fig. 1
Worktable
k Height-adjustable table leg
l Working plate
Emergency switch
a Program stop switch
Power supply system
f Main switch, emergency off switch
g Control box
h Sewing motor control
Operating switches
i Footswitch for machine operation
j Footswitch for automatic label feed system
B.1.1 Functional units
All functional units of the SHORT SEAM AUTOMAT
2110-4 / 2111-4 are mounted to the height-adjustable table
frame and freely accessible.
Transport and sewing unit
m Main clamp
3 Transport stamp
4 Stacker, with sliding table 5 und
lift table 2 with lifting unit 1
6 linear rail (under the cover)
7 Sewing head
8 Thread holder
9 Folder with quick stitch width setting
d Pick-up plate
e Pocket bag clamp
Control unit
b Operating panel
c Memory-Card
Fig. 1
5
4
3
1
2
m
6
7
8
f
g
h
k
i
j
d
l
e
9 b a c
