20 •••• Lamp Replacement Procedure Users Manual LOKPRINT™ II
Lamp Replacement Procedure
1. Remove rear cover from machine chassis. Disconnect the lamp wires from the two
terminal blocks located on the back of the lamp oven for the defective lamp(s).
2. At front of the machine, open clear, plastic oven guard and move lamp oven
forward. Oven top is hinged. Swing oven top upward to expose lamp guards
and lamps.
3. Unscrew lamp holders from lamp guards and remove the defective lamp(s) and
lamp holders. Replace old or defective lamp(s).
4. Re-assemble lamp holders and lamps to lamp guards. Do not over tighten the lamp
holders and crack the mounts. Feed lamp wires through wire grommets in back
of oven. Ensure upper wires go through upper grommets and lower wires go
through lower grommets. Re-connect lamp wires to the terminal blocks located
on the back of the lamp oven.
5. Close top to lamp oven. Re-attach rear cover to main chassis. Close clear plastic
oven guard.

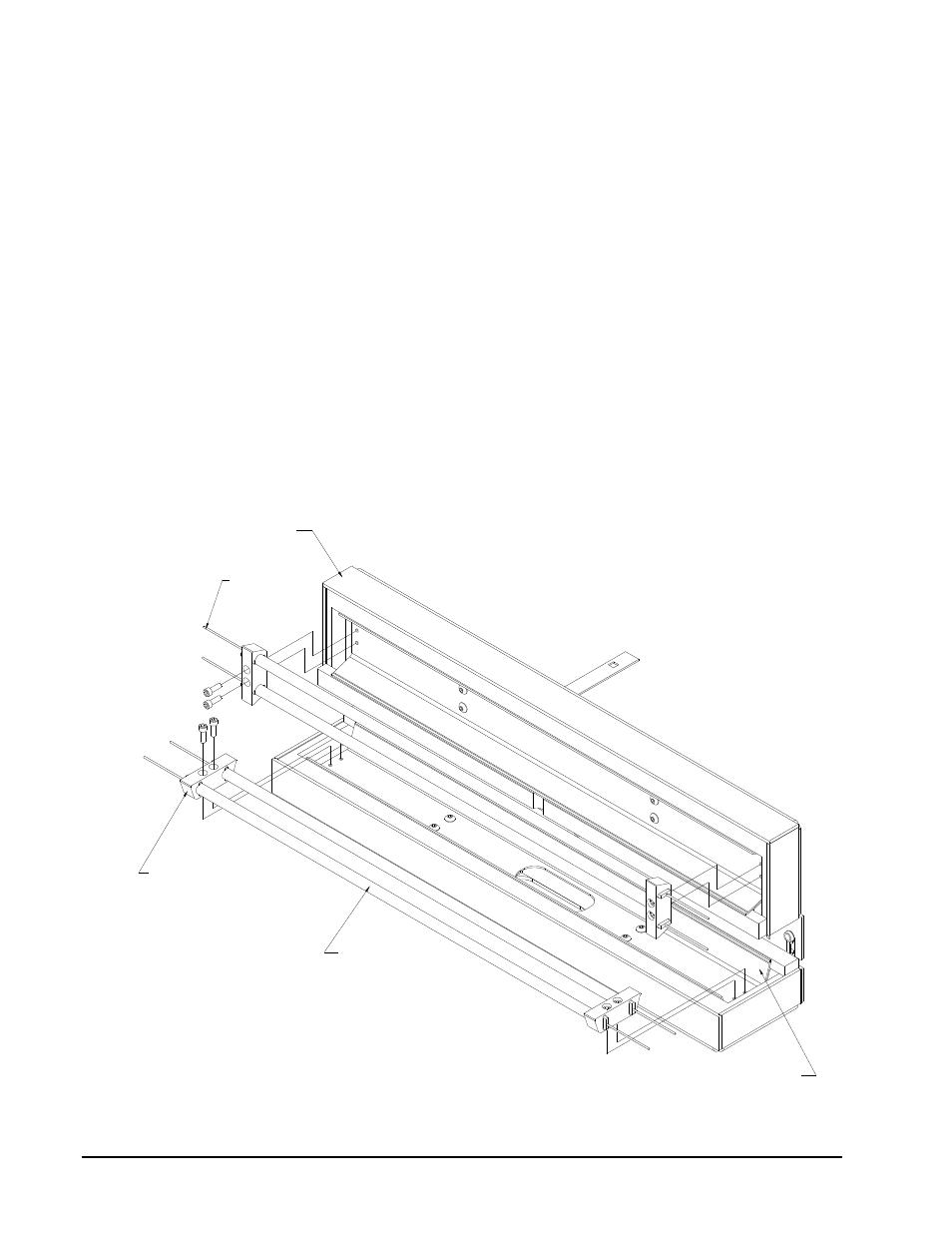

LAMP HOLDER
LAMP
OVEN TOP
LAMP WIRE
LAMP GUARD
