5. Slide a roll of supply onto the supply holder.
Note: If the core diameter on your roll of supply is 1 inch in diameter, remove the
1.5-inch supply core adapters from the supply guide holders.
6. Slide the supply holder guide back onto the end of the supply holder. If you are
using the supply core adapters for 1.5-inch core supply, make sure to push the
supply core adapters into the ends of the supply.

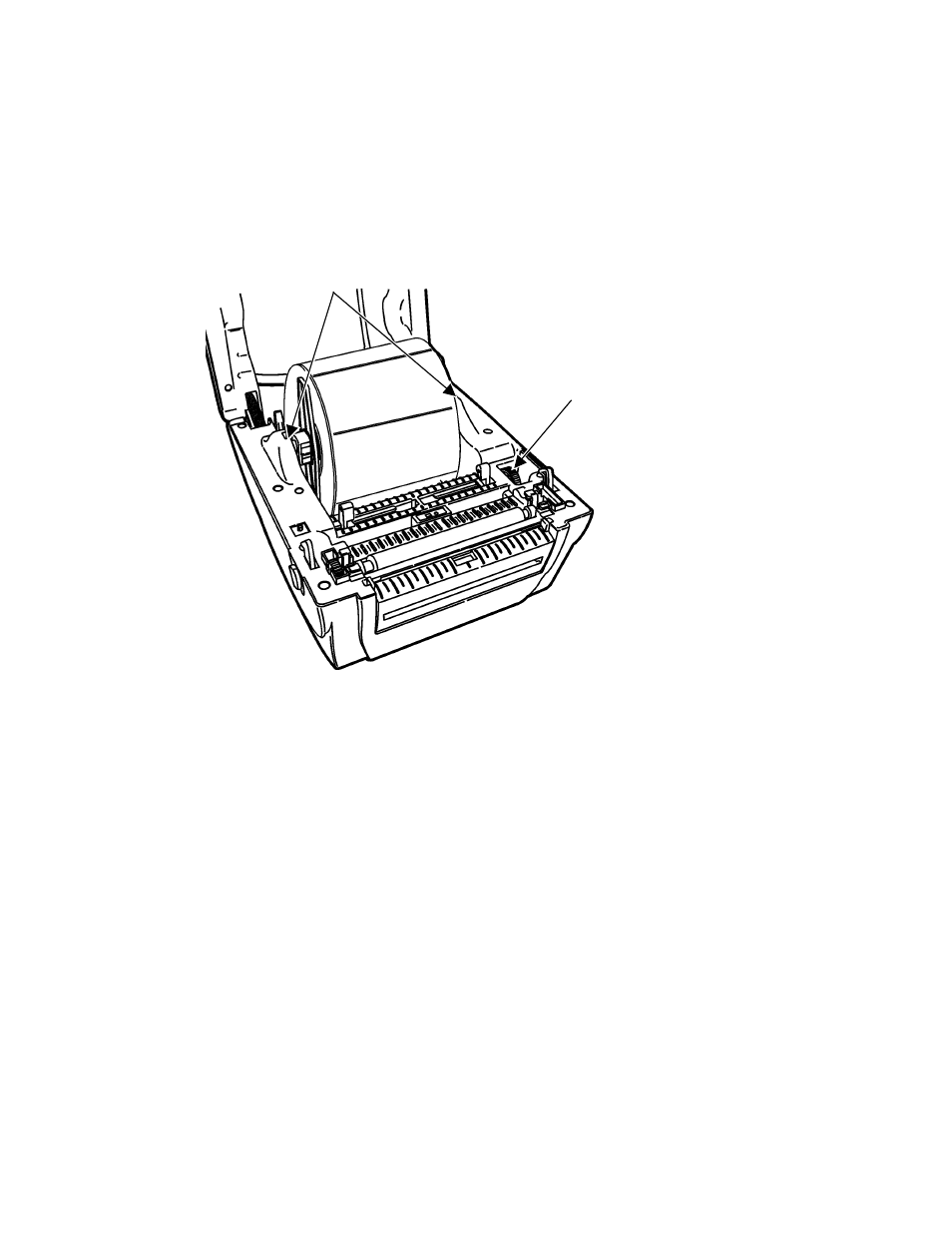

7. Insert the ends of the supply holder into the slots in the supply roll mount.
Supply Roll Mount
Dial
Important: Make sure the plastic line attaching the supply holder to the printer is
tucked down out of the way of the supply holder and supply holder
guides. Otherwise, the plastic line may wrap around the supply holder or
get caught on the supply holder guides.
Loading Supplies & Printing 2-3
