Introduction

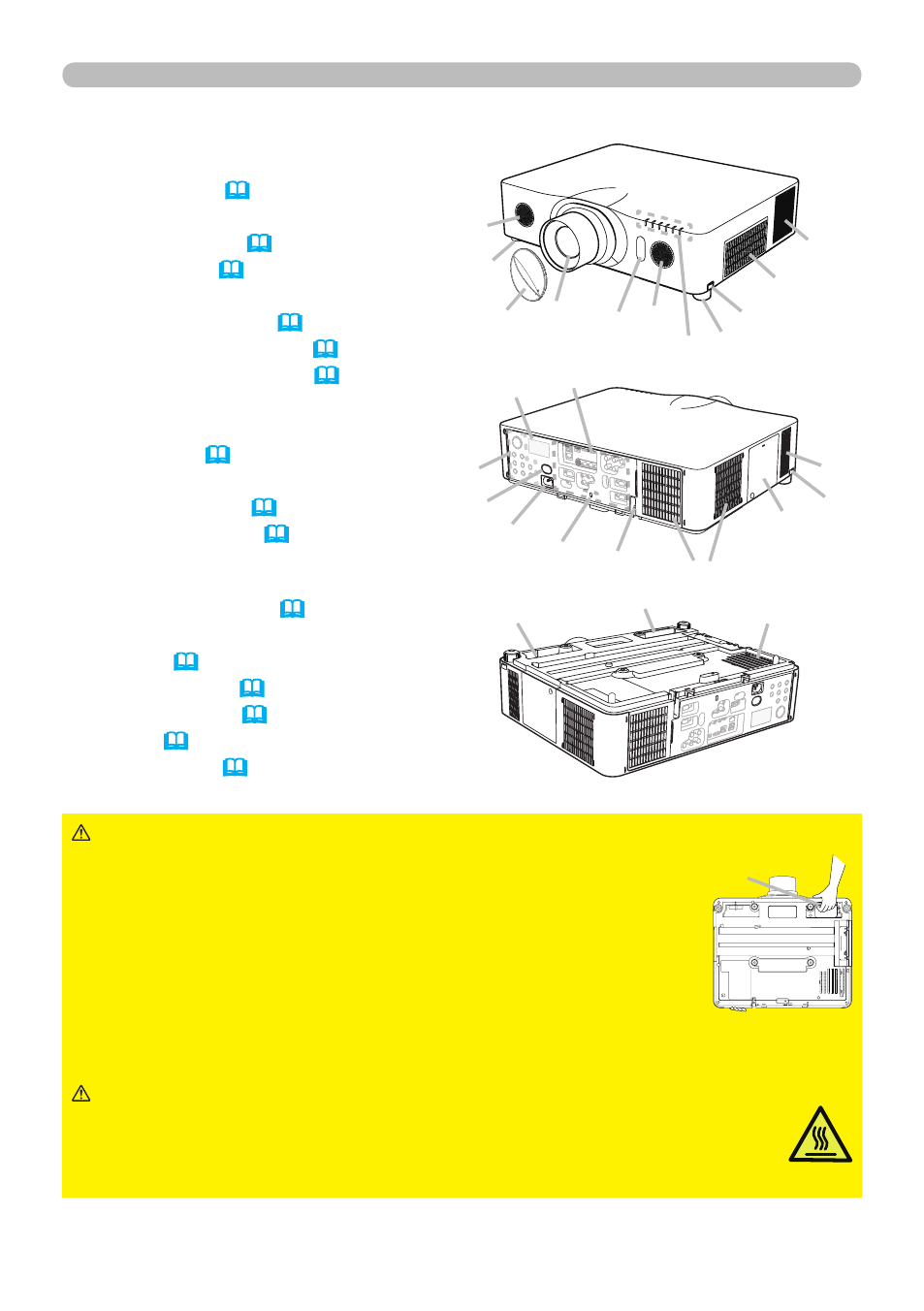

Part names
Projector
(1) Lamp cover (113)
The lamp unit is inside.
(2) Speakers (x2) (25, 57)
(3) Filter cover (115)
The air fi lter and intake vent are inside.
(4) Elevator feet (x2) (28)
(5) Elevator buttons (x2) (28)
(6) Remote sensors (x2) (18, 71)
(7) Lens
(8) Lens cover
(9) Indicators (5)
(10) Intake vents
(11) Control panel (5)
(12) Status Monitor (20)
< Only for 8971, 8973W,
8973WA and 8975WU>
(13) AC IN (AC inlet) (16)
(14) Exhaust vents
(15) Ports (5)
(16) Security bar (15)
(17) Security slot (15)
(18) Grip (below)
(19) Safety bar (15)
►Do not open or remove any portion of the product, unless the
manuals direct it.
►Do not subject the projector to unstable conditions.
►Do not apply a shock or pressure to this product. Place
your hands on the grip on the bottom of the projector when
carrying the projector. Remove all the attachments including
the power cord and cables, from the projector when carrying
the projector.
►Do not look into the lens and the openings on the projector while the lamp is
on.
WARNING
►Do not touch around the lamp cover and the exhaust vents
during use or just after use, since it is too hot.
►Do not attach anything onto the lens except the lens cover of this
projector because it could damage the lens, such as melting the lens.
CAUTION
(continued on next page)
Grip
(10)
(3)
(5)
(4)
(9)
(2)
(2)
(7)
(6)
(4)
(11)
(14)
(10)
(10)
(13)
(17) (16)
(1)
(19)
(18)
(6)
(8)
(15)
(5)
(12)
