20
 In a normal state
The Status Monitor displays the state of the projector
in three lines.
: Displays the condition of the projector.
While the lamp is on, the selected port is
displayed.
Displayed conditions are as below;
STANDBY: The projector is in standby mode.
WARM UP: The projector is warming up.
SEARCHING: The projector is searching an input signal.
COOL DOWN: The projector is cooling down.
: Displays the condition of the detected input signal while the lamp
is on. Otherwise, displays the serial number of the projector.
Displayed conditions are as below;
SYNC OUT: Detected input signal is out of specified range.
NO SIGNAL: There is no input signal.
CONNECTED: The projector has connected to the network or the computer
and some image is transferred to the projector while the LAN or USB TYPE
B port is selected.
HOLD: The projector has connected to the network but no image is transferred
while the LAN port is selected.
NOT CONNECTED: The projector is not connected to the network or the
computer while the LAN or USB TYPE B port is selected.

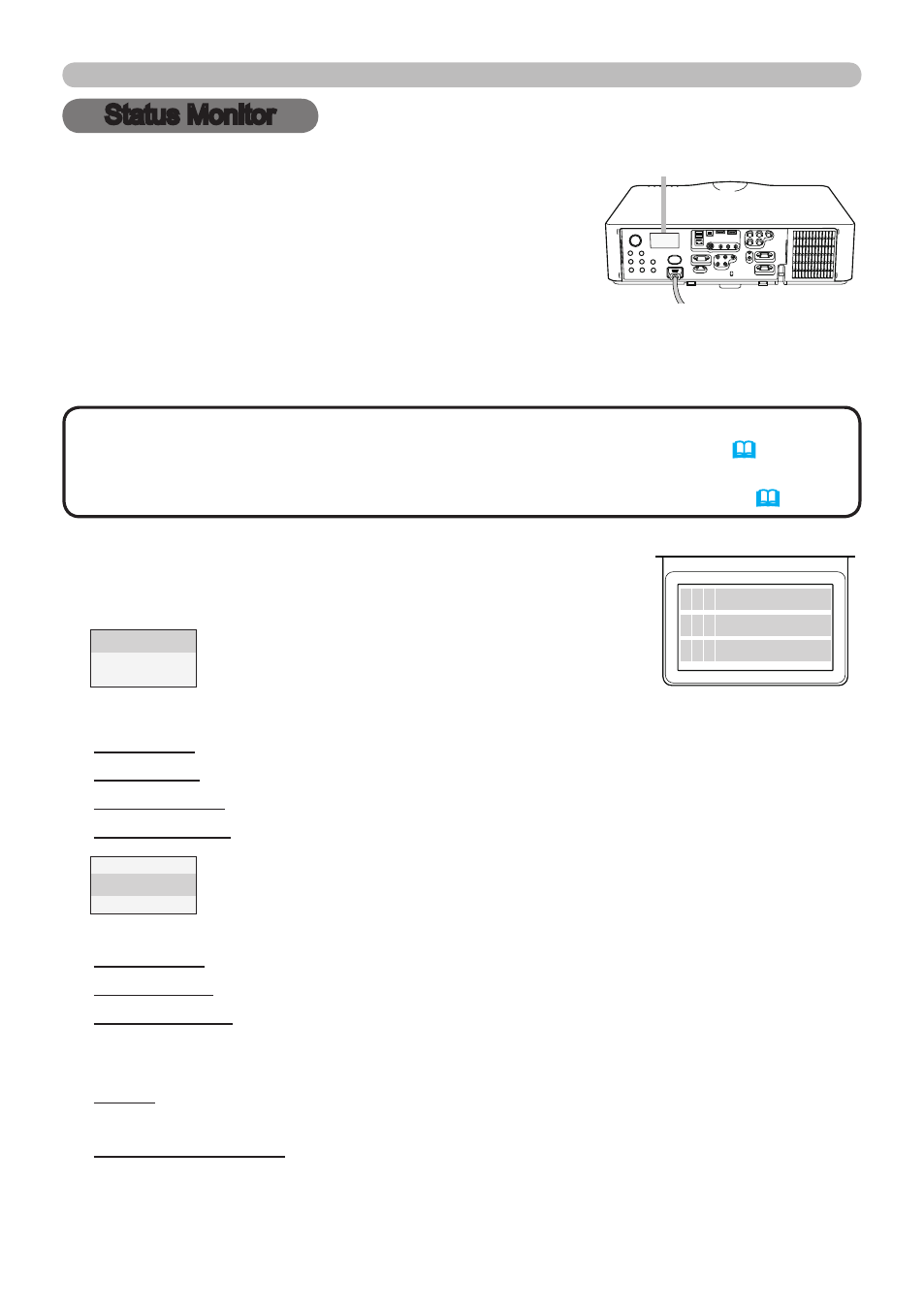

Status Monitor
Status Monitor
Displaying the condition of the projector
The Status Monitor is the sub LCD in the rear panel of
8971, 8973W, 8973WA and
8975WU. The Status Monitor displays the present
condition of the projector including errors, setup
information and error history.
< Only for 8971, 8973W, 8973W
and 8974WU>
If no buttons have been operated, the Status Monitor displays as below depending
on the condition of the projector.
Status Monitor
1st line
2nd line
• The Status Monitor displays nothing while the projector is in standby
mode if the STANDBY MODE item of SETUP menu is set to SAVING (56).
• When INSTALLATION in the SETUP menu is set to FRONT / CEILING or REAR /
CEILING, the contents on the Status Monitor are displayed upside down (55).
NOTE
(continued on next page)
example
9
2 3 ° C # 1 2 3 4 5 6 7 8 0 A B
S T A N D B Y
