 PERFECT FIT:

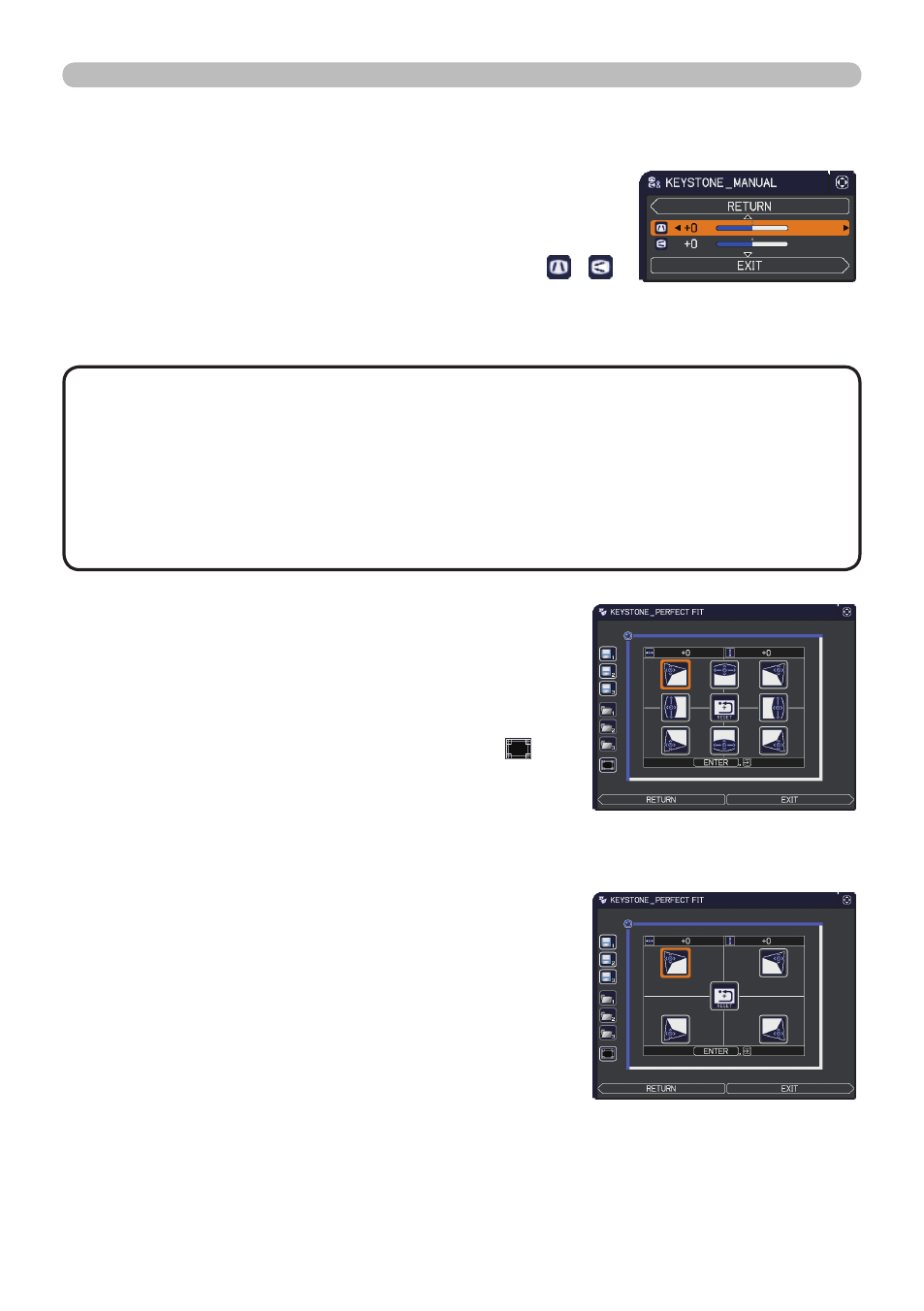

When PERFECT FIT is pointed at, pressing the
► or ENTER button displays the KEYSTONE_
PERFECT FIT dialog.
This projector is equipped with a test pattern for
PERFECT FIT. Select the test pattern icon
shown in the lower left of the dialog with the ◄/▼
buttons. When you press the ENTER or INPUT
button, the test pattern appears or disappears.
1.
If it is necessary to initialize the current
adjustment, point at RESET in the dialog
with the RESET button, and press the ENTER or
INPUT button.
2.
Select one of the corners to be adjusted with
the ▲/▼/◄/► buttons and press the ENTER
or INPUT button. For 8970, 8971,
8972W, 8972WA, 8973W and 8973WA
, also the sides can be selected to
adjust.
 MANUAL:
When MANUAL is pointed at, pressing the ► or
ENTER button displays the KEYSTONE_MANUAL
dialog.
1.
Select the vertical or horizontal keystone ( / )
with the ▲/▼ buttons.
2.
Use the ◄/► buttons to adjust the keystone distortion.
Correcting the distortion (continued)
(continued on next page)
• When the zoom adjustment is set to the TELE (telephoto focus), this
function may be excessive. This function should be used when the zoom ad-
justment is set to the full WIDE (wide-angle focus) whenever possible.
• When the horizontal lens shift is not set to the center, this function may not
work well.
• Point at RETURN in the dialog with the ▲/▼ buttons and press ◄ or ENTER
button to return to the KEYSTONE menu.
NOTE
8970, 8971, 8972W,
8973WA, 8972WA,
8973WA
8970, 8974WU,
8975WU
